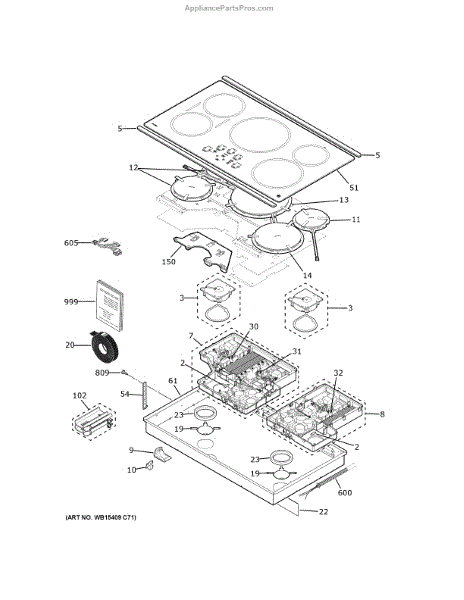

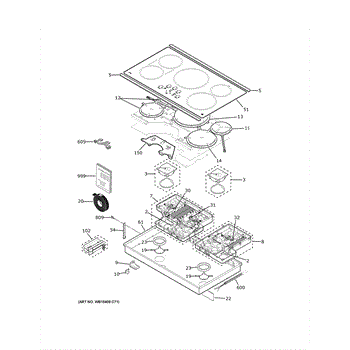

Parts for Ge PHP9036BM2TS: Control Panel & Cooktop Parts

This 250V, 20A line fuse safeguards the appliance's power circuit by interrupting current during an overload or short. Replacing a blown fuse can restore power once the root cause is corrected.

• Opens the circuit if current exceeds 20 amps or a short occurs
• Helps protect internal wiring and control components from damage
• Typical blown-fuse symptoms: no power, dead display, won't start
• Restores line continuity after the underlying issue is resolved

• Disconnect power at the breaker/unplug before servicing
• Replace only with the same rating (250V, 20A); never bypass or upsize the fuse
• If a new fuse blows again, stop and diagnose the underlying fault before further replacement

This 3700W induction cooktop element replaces a failed induction burner to restore cooking performance on compatible glass-top ranges. It provides the heating surface and induction coil assembly used by the range's induction zone. What it does:

• Generates the induction field that heats compatible cookware on the cooktop
• Replaces a burner that fails to heat or produces intermittent heating
• Can resolve symptoms such as a single burner not responding or showing reduced power
• Works as the primary heating assembly for the specified induction zone

• Disconnect power to the appliance at the breaker before servicing
• Handle the glass cooktop and element carefully to avoid cracks or scratches

This fan enclosure houses and positions the evaporator fan to direct airflow across the evaporator coil for efficient cooling and stable temperature in the freezer compartment. It helps reduce vibration and keeps the fan motor secured. What it does:

• Positions and protects the evaporator fan motor and blades for proper airflow
• Channels cold air across the evaporator coil to support consistent cooling
• Helps reduce fan vibration and operating noise when intact
• Damaged or missing enclosures can contribute to reduced cooling, frost buildup, or unusual fan noise

• Disconnect power to the appliance before beginning any repair
• Remove interior panels and ice buildup carefully to access the evaporator area
• Ensure the enclosure seats fully and secures the fan motor and blade without pinching wiring

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the correct fasteners and small parts for a proper installation
• Restores secure mounting if original hardware is missing, stripped, or corroded
• Helps eliminate looseness, vibration, or rattling caused by inadequate mounting
• Useful when reinstalling after service or relocating the appliance

• Disconnect electrical power before starting; shut off gas supply if applicable.
• Support the appliance/component during installation to prevent injury or damage.
• Follow your model's installation instructions; arrange and tighten hardware as directed.
• After installation, verify clearances, alignment, and secure mounting before use.

This display board assembly controls the oven's user interface and visible display, restoring proper readouts and keypad responsiveness. Replaces a failed or unresponsive display to help restore normal control and status feedback. What it does:

• Powers and drives the front control display so clock, temperature, and timer readouts are visible
• Interfaces with the touch/keypad to register user inputs for bake, broil, timer and other functions
• Helps resolve symptoms like blank or flickering display, unresponsive buttons, or incorrect readouts
• Works as the main display/control module that communicates with the oven's main control board

• Disconnect power at the breaker before accessing the control panel to avoid shock
• Remove the console trim and mounting screws to access and replace the display assembly
• Handle the board by its edges and avoid touching circuit traces or connector pins
• If issues persist after replacement, verify connectors and wiring and test the main control board

This conduit wire assembly routes power and signals between components to restore reliable electrical connection and protect wiring from heat and abrasion. It's a direct-replacement harness used where factory conduit is required for safe operation. What it does:

• Provides insulated, routed wiring to connect oven/refrigerator components while protecting conductors from heat and chafing
• Restores lost or intermittent power caused by damaged or frayed wiring
• Maintains correct wire routing to prevent contact with hot surfaces or moving parts
• Ensures secure terminal connections for consistent electrical performance

• Disconnect all power to the appliance before starting work to avoid shock hazard
• Route the harness following the original path and secure all factory clips and fasteners
• Make tight, corrosion-free terminal connections; replace any damaged connectors

This ground wire harness provides the factory grounding connection between the appliance chassis and electrical components, restoring a secure equipment ground for safe operation and proper circuit protection. What it does

• Connects appliance metal chassis to the ground/earth circuit to help prevent electrical shock.
• Restores a secure ground path for controls and components that require chassis grounding.
• Helps resolve intermittent grounding-related faults or error codes tied to poor chassis connection.
• Maintains correct wire routing and factory-style terminals for a reliable electrical connection.

• Disconnect power (unplug or shut off breaker) before inspecting or replacing any wiring.
• Replace only with the exact harness or manufacturer-approved equivalent; match terminals and routing to the original.
• Secure harness to chassis and nearby components using original clips or fasteners to prevent chafing or contact with hot parts.
