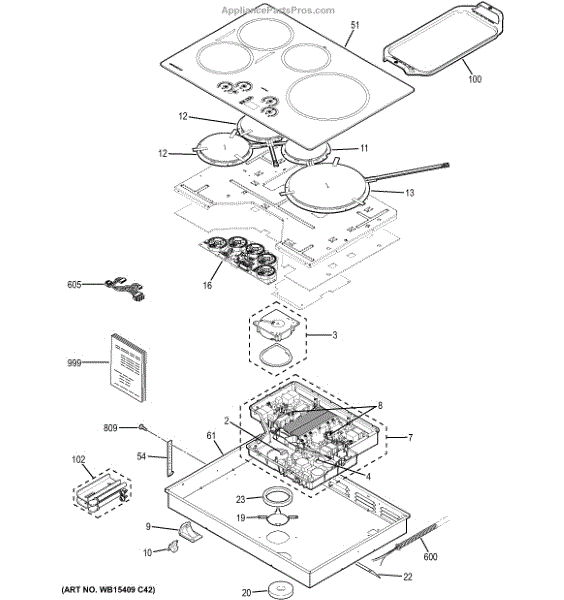

Parts for Ge ZHU30RDJ1BB: Control Panel & Cooktop Parts

Cooktop won't turn on or has no power? A blown line fuse often causes complete electrical failure. This 20A fuse protects internal circuits from overloads.

Fix a cooktop that won't heat or has unresponsive touch controls with this induction control assembly kit. Contains boards for heat induction and control.

Generator board assembly that produces the high-voltage spark used to ignite gas burners on compatible ranges and cooktops, helping restore reliable ignition and reduce continuous clicking or no-spark conditions. What it does:

• Generates the spark that lights surface burners and/or the oven burner on gas cooktops and ranges.
• Can stop or reduce continuous clicking with no ignition when the module fails.
• May cause one or more burners to stop sparking or ignite intermittently.
• Works with the range's ignition switches and electrode wires to coordinate safe ignition.

• Disconnect electrical power and shut off the gas supply before starting any work.
• Photograph or label wire locations before disconnecting to ensure correct reconnection.
• Handle the board and connector pins carefully to avoid damage; avoid touching components with bare hands or tools.

Fix a cooktop burner that won't heat or heats unevenly with this induction heating element. Direct replacement part for electric induction cooktops.

This 3700W induction cooktop element replaces a failed induction burner to restore cooking performance on compatible glass-top ranges. It provides the heating surface and induction coil assembly used by the range's induction zone. What it does:

• Generates the induction field that heats compatible cookware on the cooktop
• Replaces a burner that fails to heat or produces intermittent heating
• Can resolve symptoms such as a single burner not responding or showing reduced power
• Works as the primary heating assembly for the specified induction zone

• Disconnect power to the appliance at the breaker before servicing
• Handle the glass cooktop and element carefully to avoid cracks or scratches

This fan enclosure houses and positions the evaporator fan to direct airflow across the evaporator coil for efficient cooling and stable temperature in the freezer compartment. It helps reduce vibration and keeps the fan motor secured. What it does:

• Positions and protects the evaporator fan motor and blades for proper airflow
• Channels cold air across the evaporator coil to support consistent cooling
• Helps reduce fan vibration and operating noise when intact
• Damaged or missing enclosures can contribute to reduced cooling, frost buildup, or unusual fan noise

• Disconnect power to the appliance before beginning any repair
• Remove interior panels and ice buildup carefully to access the evaporator area
• Ensure the enclosure seats fully and secures the fan motor and blade without pinching wiring

This heat baffle is a stamped metal oven heat shield that protects oven components and helps direct heat for more even cooking. It replaces a damaged, warped, or missing baffle to restore proper oven airflow and component protection. What it does:

• Shields control and electrical components from direct oven heat
• Helps direct and diffuse oven heat for more consistent baking and roasting
• Prevents hot spots by guiding airflow inside the oven cavity
• Reduces risk of nearby part damage caused by excessive radiant heat

• One heat baffle

• Turn off power to the appliance and allow the oven to cool completely before starting
• Follow OEM instructions for removal and reinstallation; use proper fasteners as required
• Handle edges carefully — metal may be sharp

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

What's included:

• 1 hold-down bracket

Install notes:

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

Replace a warped or cracked griddle plate to restore smooth, even cooking for pancakes and bacon. Durable flat surface cleans easily. DIY-friendly repair.

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the correct fasteners and small parts for a proper installation
• Restores secure mounting if original hardware is missing, stripped, or corroded
• Helps eliminate looseness, vibration, or rattling caused by inadequate mounting
• Useful when reinstalling after service or relocating the appliance

• Disconnect electrical power before starting; shut off gas supply if applicable.
• Support the appliance/component during installation to prevent injury or damage.
• Follow your model's installation instructions; arrange and tighten hardware as directed.
• After installation, verify clearances, alignment, and secure mounting before use.

This ground wire harness provides the factory grounding connection between the appliance chassis and electrical components, restoring a secure equipment ground for safe operation and proper circuit protection. What it does

• Connects appliance metal chassis to the ground/earth circuit to help prevent electrical shock.
• Restores a secure ground path for controls and components that require chassis grounding.
• Helps resolve intermittent grounding-related faults or error codes tied to poor chassis connection.
• Maintains correct wire routing and factory-style terminals for a reliable electrical connection.

• Disconnect power (unplug or shut off breaker) before inspecting or replacing any wiring.
• Replace only with the exact harness or manufacturer-approved equivalent; match terminals and routing to the original.
• Secure harness to chassis and nearby components using original clips or fasteners to prevent chafing or contact with hot parts.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.
