Parts for HCR2250AES: Control Panel & Cooktop Parts

Parts for HCR2250AES: Control Panel & Cooktop Parts

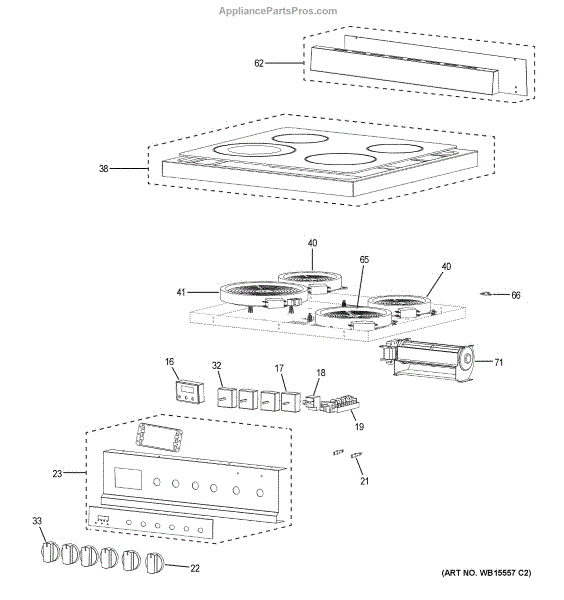

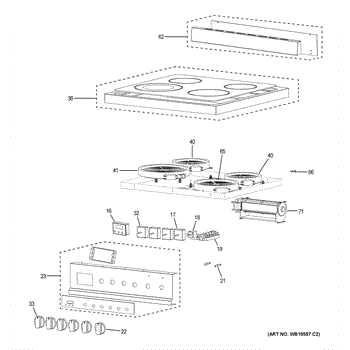

Location on Diagram
Part Description
Price & Availability
16
By: Ge
Part Number: WB24X28323
$158.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
17
By: Ge
Part Number: WB24X28404

Burner won't heat or stay at set temperature? This infinite switch restores variable heat control from simmer to high. Direct replacement part.

More
$11.09

IN STOCK
Ships Today Guaranteed
Add to Cart
18
By: Ge
Part Number: WB24X28409

This oven thermostat regulates the oven's temperature so food cooks evenly and the appliance maintains set heat levels. It replaces a failing thermostat to restore accurate temperature control and more consistent cooking results. What it does:

  • Senses oven temperature and signals the oven to heat or stop heating to maintain the set temperature
  • Helps correct symptoms like the oven running too hot, too cold, or cycling on and off erratically
  • Works with the oven's control system to stabilize bake and broil temperatures
  • Restores proper temperature feedback when an old thermostat is worn or no longer accurate
What's included: One oven thermostat Install notes:
  • Disconnect power to the appliance at the breaker before beginning any work
  • Access may require removing the oven control panel or inner oven back — follow your model's service instructions
  • Handle terminals and sensing elements gently; ensure all wires are reconnected to the correct terminals

More
$9.24

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
19
By: Ge
Part Number: WB24X28414

This selector switch is the user-control switch that lets the range or oven change cooking functions. Replacing a worn or faulty selector restores reliable function selection and responsive stove/oven control. What it does

  • Provides the user interface for selecting oven/range cooking functions and modes
  • Routes control signals to the range/oven control system when a new function is chosen
  • Commonly replaced for intermittent or non-responsive function selection
  • Helps stop incorrect or stuck function settings that prevent normal operation
What's included One selector switch Install notes
  • Disconnect power to the appliance before starting any work
  • Access may require removing the control panel or console; keep fasteners organized
  • Handle wires and connectors carefully; match and fully seat each connector during reassembly
  • Test function selection with power restored and panels secured

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21
By: Ge
Part Number: WB25X28403
$23.78

IN STOCK
Ships Today Guaranteed
Add to Cart
22
By: Ge
Part Number: WB03X28306
$56.94

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
23
By: Ge
Part Number: WB07X30670
$62.52

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
32
By: Ge
Part Number: WB24X28405
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

33
By: Ge
Part Number: WB03X28407
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

38
By: Ge
Part Number: WB62X30674
$375.70

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
40
By: Ge
Part Number: WB30X28410
$40.61

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
41
By: Ge
Part Number: WB30X28413

A double radiant cooktop element that provides two heating zones for glass-top ranges, restoring even surface heating for everyday cooking. Replaces a worn or non-heating element assembly to get your range back to normal operation. What it does

  • Heats cookware on a smooth glass-ceramic cooktop using two linked radiant zones
  • Restores proper cooking temperatures when one or both zones fail to heat
  • Helps prevent uneven cooking caused by a damaged or intermittent element
  • Works as the electric heating source controlled by the stove's burner selector
What's included
  • One double radiant cooktop element assembly
Install notes
  • Turn off power at the breaker and verify the range is disconnected before servicing
  • Requires removing the glass cooktop or control panel access per the range service manual
  • Handle the glass-ceramic surface and element carefully to avoid cracking or damage

More
$9.24

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
62
By: Ge
Part Number: WB36X30663
$29.15

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
65
By: Ge
Part Number: WB30X28411
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

66
By: Ge
Part Number: WB02X28412
$8.12

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
71
By: Ge
Part Number: WB26X28281
$141.24

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
