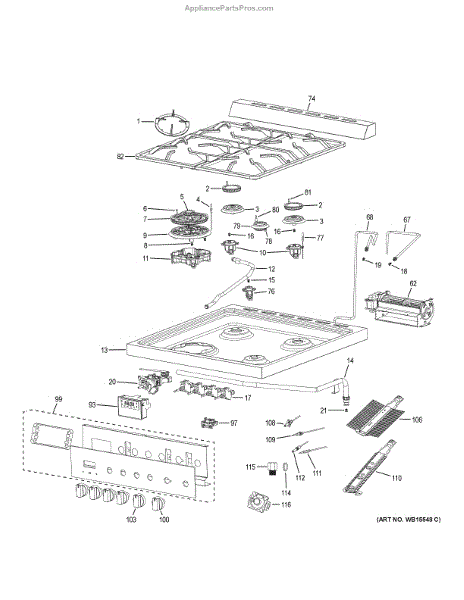

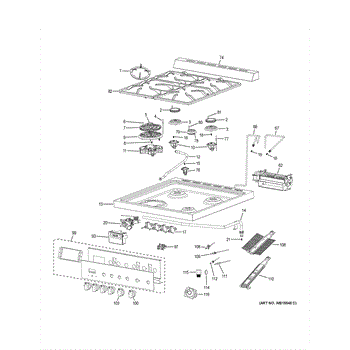

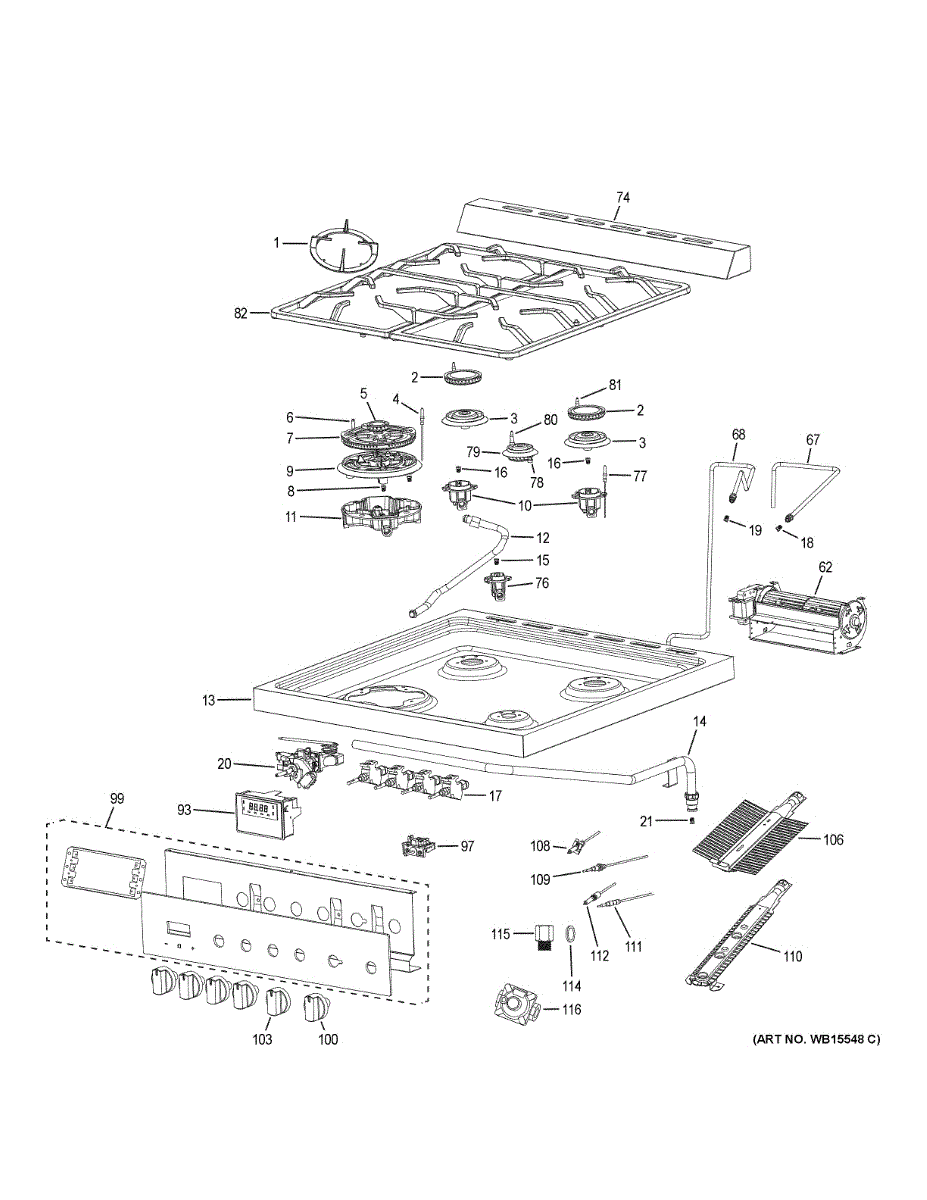

Parts for HCR2250AGS: Control Panel & Cooktop Parts

This burner base is the metal support that holds a gas cooktop's surface burner components in place, helping maintain proper burner alignment for reliable ignition and consistent flame control. What it does:

• Secures the burner head, burner cap and associated hardware to the cooktop surface
• Helps direct gas flow and maintain stable flame shape for even heating
• Commonly replaced when a burner won't light, has weak or uneven flame, or when the base is warped or damaged
• Works with the cooktop's ignition and gas delivery components to support normal operation

• Turn off gas supply and electrical power to the range before starting any service
• Handle sharp edges and small fasteners carefully; keep track of screws and alignment tabs
• Verify burners and caps are correctly seated after reassembly and test each burner for correct ignition and flame

This natural gas orifice controls the flow of gas to a cooktop or range burner for correct combustion and stable flame, helping the appliance run safely and efficiently. It's a small, precision fuel-delivery fitting used where natural gas is required. What it does:

• Metered opening limits gas flow so the burner produces a proper, even flame.
• Restores correct burner performance when a worn or clogged orifice causes weak or uneven flames.
• Helps prevent excessive gas flow that can cause yellowing flames or combustion issues.
• Used when replacing damaged, corroded, or obstructed orifices affecting burner operation.

• One natural gas orifice.

• Turn off the gas supply and power to the appliance before servicing.
• Remove burner cap/parts to access the orifice; installation typically requires basic hand tools.
• Install the new orifice by hand-starting threads, then snug—do not overtighten; follow appliance manufacturer torque guidance if available.
• After installation, check for proper ignition and inspect all gas connections for leaks with a soap solution or approved leak detector.

This is a direct-fit range burner cap that protects the burner head and helps shape the gas flame for even cooking. It replaces a worn, chipped, or missing cap to restore normal burner performance and appearance. What it does

• Covers and protects the burner head from spills, debris, and damage
• Helps direct and stabilize the gas flame for consistent heating
• Can resolve uneven flames, noisy burners, or ignition issues caused by damaged caps
• Designed to fit over the burner base for proper alignment and operation

• One range burner cap

• Turn off the gas and power to the range and allow all parts to cool completely before servicing
• Remove old cap and place the new cap squarely onto the burner head; no tools typically required
• Clean burner head and ports of any debris before installing to ensure proper ignition

This Injet is the OEM water injector that controls and directs water flow where needed inside the appliance, helping restore proper water delivery for ice or dispensing functions. It replaces a worn or clogged injector to improve water flow and performance. What it does:

• Directs a controlled stream of water to the ice maker, dispenser or internal component
• Restores proper water flow when an injector is clogged, damaged or leaking
• Helps eliminate weak dispensing or reduced ice production tied to poor water delivery
• Operates as a replaceable flow-control component within the appliance's water path

• One Injet (water injector) as shown

• Recommended for technicians or experienced DIYers; for location and removal steps
• Disconnect power and shut off the water supply before starting work
• Inspect adjacent hoses and fittings; replace any brittle or damaged parts to ensure a leak-free installation
• Test water flow and check for leaks after installation

This burner supply tube delivers gas from the valve assembly to a burner, restoring proper fuel flow for safe, consistent ignition and flame. Replace a damaged or leaking tube to help stop uneven flames or burners that fail to light. What it does

• Routes gas from the control valve to the burner manifold and individual burner ports.
• Helps maintain correct gas flow for steady ignition and consistent flames.
• Commonly replaced when the tube is cracked, bent, corroded, or leaking.
• Can resolve symptoms such as burners that won't light, weak or uneven flames, or visible gas leaks.

• One burner supply tube.

• Turn off the appliance, shut off the gas supply, and disconnect power before starting; follow all safety precautions.
• Use proper fittings and pipe thread sealant where required; hand-start threads then tighten with appropriate tools—do not overtighten.
• After installation, check all connections for leaks with a soap-and-water solution or a gas leak detector; do not use an open flame.

This LP broil orifice controls propane flow to the oven broil burner so the broil flame lights and performs as intended. It restores correct gas delivery for safer, more consistent broiling. What it does:

• Meter gas to the broil burner to produce the correct LP flame size
• Helps restore stable broil ignition and consistent high-heat cooking
• Can resolve weak or uneven broil flame and burners that won't light reliably
• Used when converting or replacing worn or damaged broil orifices

• One LP broil orifice

• Turn off gas supply and electrical power before servicing; follow all safety procedures
• Only install on compatible appliances
• Hand-start threads, then snug with a wrench—do not over-tighten
• After installation, check for leaks and proper burner operation

This LP bake orifice controls propane flow to the oven's bake burner, restoring correct flame size for reliable baking performance. It's a direct-replacement orifice used when converting or repairing propane gas ovens. What it does

• Regulates propane fuel flow to the bake burner for a stable, properly sized flame
• Helps the oven reach and hold baking temperatures more consistently
• Common symptom: weak or no bake flame after LP conversion or orifice damage
• Common symptom: uneven baking or slow preheat related to improper gas flow

• One LP bake orifice

• Turn off gas supply and electrical power before starting work
• Use proper fittings and thread sealant rated for gas; check all connections for leaks
• After installation, test for leaks and confirm correct burner flame and operation

The Temperature Control Valve is an OEM part for GE ranges. It modulates fuel flow to the burner based on temperature settings.

Causes of failure can include wear of sealing surfaces, clogs or debris in the valve port, or internal spring fatigue over many heating cycles.

Symptoms of a bad temperature control valve are:

• Inaccurate or unstable oven temperatures
• Inability to reach or maintain desired heat levels
• Exposure of flames outside the firebox
• Leaks or gas smell coming from the oven area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

This replacement oven door gasket seals the oven cavity to help maintain consistent cooking temperatures and keep heat inside the oven for efficient operation. It restores a tight seal on worn, cracked, or deformed door seals. What it does:

• Creates a heat-tight barrier between the oven door and cavity to help maintain oven temperature
• Helps prevent heat and steam from escaping during cooking or self-clean cycles
• Reduces energy loss and improves cooking performance when the original seal is no longer effective
• Commonly replaced when the gasket is torn, compressed, brittle, or missing sections

• One oven door gasket

• Inspect the door and channel for debris before installing; clean surfaces for best fit
• Most gaskets press or tuck into a continuous channel around the door — follow the oven manufacturer's alignment method
• Wear gloves to avoid cuts from sharp edges and allow the oven to cool completely before starting
