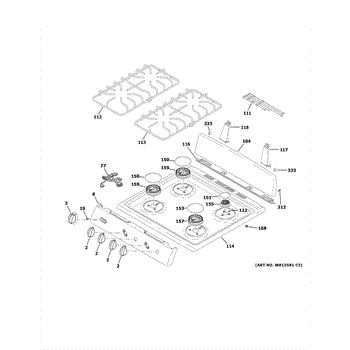

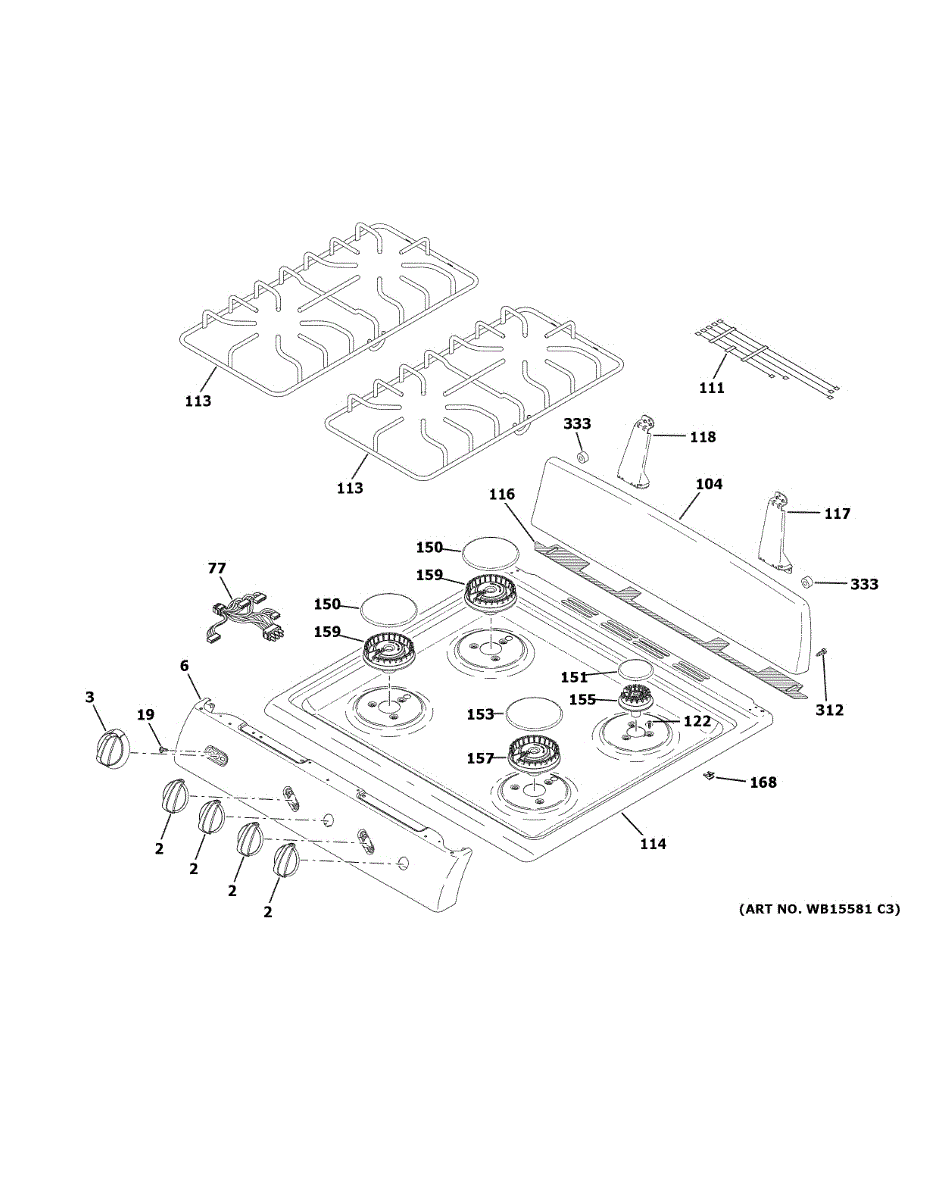

Parts for Hot Point RGAS200DM2WW: Control Panel & Cooktop Parts

This white surface burner valve knob replaces a worn or missing knob so you can smoothly turn the gas valve and set flame levels with confidence. It restores clean appearance and positive feel on your range or cooktop.

• Attaches to the surface burner valve stem to control flame output
• Replaces cracked, stripped, or missing knobs
• Helps restore accurate alignment with control markings
• Common fix for wobbling knobs, knobs that fall off, or hard-to-turn controls

• Turn all burner controls OFF and allow the surface to cool completely
• Pull the old knob straight off the valve stem; avoid prying with tools
• Align the new knob with the stem and press firmly until fully seated
• Rotate through settings to confirm smooth operation and proper ignition

This white thermostat control knob is a direct-replacement control dial that restores easy, reliable temperature selection on compatible GE appliance control panels. It replaces worn, cracked, or missing knobs so settings stay accurate and visible. What it does:

• Provides a sturdy grip to turn the thermostat and select temperature settings
• Replaces knobs that are cracked, stripped, loose, or missing
• Helps restore proper engagement when the original knob slips or won't stay on a setting
• Improves appearance by covering damaged or discolored original knobs

• Disconnect power to the appliance before servicing to avoid shock or injury
• Most installations are pull-off/push-on: remove the old knob by pulling straight off the control shaft and press the replacement onto the shaft until it seats
• If the knob won't fit or seat properly, inspect the control shaft for damage.

This is a replacement mounting screw for the refrigerator/freezer thermostat assembly. It secures the thermostat to the cabinet so temperature sensing and control remain stable and reliable. What it does:

• Secures the thermostat housing or bracket to the appliance cabinet
• Keeps the thermostat properly positioned for accurate temperature sensing
• Common fix when a loose, missing, or stripped thermostat fastener causes rattling or poor contact
• Small hardware part used during thermostat replacement or reassembly

• One thermostat mounting screw

• Turn off power to the appliance before starting any repair
• Use appropriate screwdriver and do not overtighten to avoid stripping the housing or threads
• If original hole or threads are damaged, inspect bracket or cabinet and replace as needed

This electrode harness routes high-voltage to the cooktop ignitors so burners light reliably. It replaces a damaged or worn harness to restore spark delivery and proper ignition. What it does:

• Carries the ignition voltage from the spark module to the cooktop electrodes
• Replaces cracked, frayed, or corroded wiring that can stop burners from sparking
• Helps stop continuous clicking or intermittent ignition caused by poor connections
• Used where one or more burners fail to ignite or produce a weak spark

• Always shut off power and gas supply before servicing the cooktop
• Handle ceramic electrodes and wiring gently to avoid cracking or bending
• Verify proper connector seating and routing to prevent contact with hot components

This 50-inch range top is a factory-style replacement cooktop surface that restores the cooking area and burner alignment on compatible freestanding and slide-in ranges. It provides a stable, heat-resistant surface for burners and cookware. What it does:

• Replaces a bent, dented, or severely scratched cooktop surface to restore a flat, secure cooking area.
• Supports burner assemblies and maintains proper burner alignment for even heating.
• Helps contain spills and channels liquids away from underlying components to reduce damage risk.
• Addresses symptoms like visible warping, large surface cracks, or rusted/deteriorated top panels.

• One range top (50-inch) as shown.

• Disconnect power (and gas, if applicable) before beginning any work to avoid shock or gas hazards.
• Handle edges with care; metal edges may be sharp. Use gloves and eye protection.
• Installation typically requires removing grates, burner heads, and control knobs to lift the old top and set the replacement in place; keep fasteners and gaskets for reinstallation.
• Follow the appliance's model-specific service instructions for final alignment, sealing, and testing after installation.

This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

The Medium Burner is an OEM part for GE ranges and cooktops. This medium-sized burner part provides a balanced heat source for cooking. The medium burner is often used for everyday cooking tasks, offering a versatile option for boiling, sautéing, and simmering.

Causes of damage or malfunction in a burner can stem from regular use, spills and buildup of cooking materials that clog the burner ports, or corrosion over time affecting the burner's efficiency.

Symptoms of a bad medium burner include:

• Inability to achieve a consistent flame
• The burner not lighting at all
• An irregular flame pattern or color (e.g., yellow flames instead of blue)

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This small burner cap sits atop the surface burner head on your gas range, focusing and evenly distributing the flame for steady heat and reliable ignition. Replacing a worn, warped, or missing cap restores proper flame shape and performance.

• Directs and spreads the flame pattern for even cooking
• Shields the burner head from spills and debris
• Helps ensure quick, consistent ignition when properly seated
• Replace if you see uneven/yellow flames, delayed ignition, sputtering, or poor simmer control

• Allow the cooktop to cool; turn off gas supply and power before servicing
• Lift off the old cap and clean the burner head/mating surface
• Seat the new cap centered and flush—do not force or use adhesives
• Test ignition and verify an even, blue flame; reseat if needed

Color: Black. This large cap measures about 3-1/2 inches in diameter.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Large V2 is an OEM part for GE gas ranges. It is designed to provide a consistent and even flame for cooking, ensuring efficient heat distribution for large pots and pans.

Causes of a bad burner can include clogging from food spills, wear and tear from frequent use, or damage from cleaning processes. A malfunctioning burner can lead to uneven cooking and reduced heating efficiency.

Symptoms of a bad burner include:

• Uneven or weak flame
• Burner not igniting properly
• Sputtering or inconsistent flame
• Visible damage or clogging on the burner surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap is an OEM part for GE gas ranges. This component sits on top of the burner head, dispersing the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

You should replace the burner cap if it becomes damaged or worn out. Causes of a bad burner cap can include exposure to high temperatures, accidental drops or impacts, and buildup of food residues or cleaning chemicals that can erode the surface over time.

Symptoms of a bad burner cap include:

• Uneven flame distribution or yellow flames
• Difficulty in igniting the burner
• Visible cracks, chips, or warping on the cap
• Poor cooking performance due to inconsistent heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Clip Igniter is an OEM replacement part for GE ranges.

This GE OEM replacement is also compatible with some Hotpoint, Sears Kenmore, and RCA models.

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This handle spacer positions the appliance handle at the correct distance from the door or panel for smooth operation. Replacing a worn or missing spacer restores proper standoff, alignment, and feel, and helps prevent rubbing, rattling, or looseness.

• Maintains proper spacing between the handle base and mounting surface
• Helps keep the handle aligned and secure
• Reduces rubbing or contact with the door/panel
• Common fix for a wobbly, misaligned, or scraping handle

• Unplug power and allow hot surfaces to cool before servicing
• Support the door/handle while removing mounting screws to prevent strain
• Note the spacer's position and orientation; reinstall the new spacer in the same location
• Tighten screws snugly; do not overtighten to avoid damage
