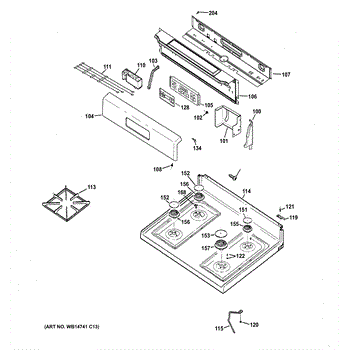

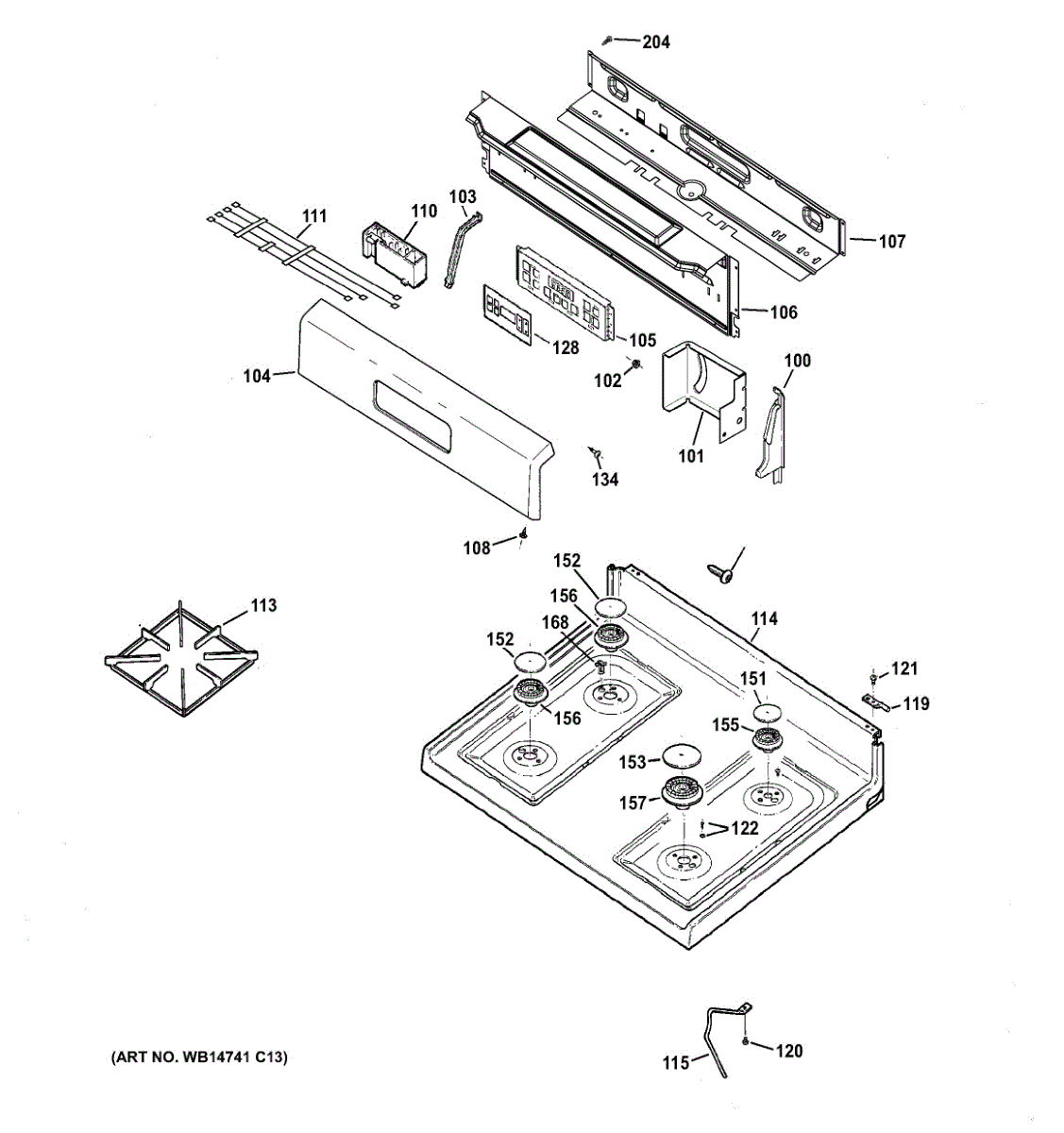

Parts for Hot Point RGB530DEH2WW: Control Panel & Cooktop Parts

Color: White. Left Hand side.

Color: White. Right Hand side

Right hand side

Left hand side

Size: 10-32 GXTT FLP.595 S

The Ignition Module is an OEM part for GE gas ovens and ranges. As the “brains” regulating ignition functions, it works to precisely control gas valve operation and safely spark each burner using the glowbar.

Symptoms of an ignition module that needs replacing can include:

• Intermittent or complete failure of one or more burners to ignite
• Error codes shown regarding ignition issues
• Inability to adjust/maintain proper flame height or temperature
• Burners that rapidly cycle on and off inconsistently

Causes are often due to internal electronic component wear or failures over time. Replacing with this GE OEM module ensures your appliance’s ignition system functions reliably and dependably to allow safe, full-featured cooking. As with all GE parts, it is also compatible with ranges from Hotpoint, RCA, and select Kenmore models.


This part includes replacement electrodes and a harness. This is a genuine OEM part made by General Electric and has been sourced directly from the manufacturer. This part is intended to replace damaged or defective electrodes on multiple models of gas powered stoves and ranges. These electrodes connect the spark igniters to the appliance in order to allow the gas cooktop to be ignited. If the spark igniters are not lighting, the electrodes may be the issue. Over time, electrodes can become worn or damaged and may require replacement. For safety purposes, always ensure the stove is completely disconnected from power and gas before starting the any repair work. Proper tools will be required to complete this process. Please make sure to follow appropriate safety precautions when attempting to repair any appliances. For more accurate information on how and where to install these electrodes and harness, the appropriate owner's manual and included diagrams should be referred to.As an authentic replacement part, this electrodes and harness kit is suitable for use on several different models of gas ovens, stoves, and ranges manufactured by General Electric and Hotpoint. This is a genuine part made of high-quality, durable materials and is sold individually.

This is the cooktop surface that sits on top of the range and provides the flat mounting area for burners and grates. It restores a finished cooking surface and protects internal components from spills and debris. What it does:

• Replaces a cracked, warped, or heavily scratched cooktop surface
• Provides a stable mounting area for burners, grates, and burner caps
• Helps prevent spills and food debris from entering the range interior
• Restores proper fit and alignment of surface components for safe cooking

• One range top (cooktop surface) as shown

• Disconnect power (and gas if applicable) before beginning service
• Remove burner grates, burner caps, and any screws or retainers securing the cooktop before lifting
• Handle edges carefully to avoid cuts; a second person may be needed for safe removal/installation
• Follow OEM instructions for reassembly and test burners after installation

This Cooktop support is a replacement mounting bracket that secures and stabilizes the cooktop assembly for safe, even cooking. Restores proper alignment and reduces wobble or movement of the cooktop surface. What it does:

• Physically supports the cooktop assembly and keeps it seated in the countertop opening.
• Helps maintain correct gap and alignment between the cooktop and surrounding trim.
• Reduces unwanted movement, rocking or rattling during use.
• Contributes to safe operation by holding cooktop components in their intended position.

• Installation requires access beneath or around the cooktop; remove power before servicing.
• Keep fasteners and mounting surfaces clean; replace any corroded hardware as needed.
• Observe all safety precautions when working with sharp sheet-metal edges.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

The Overlay is an OEM part for GE ranges. It serves as the protective external covering for the range's control panel. The overlay shields users and sensitive electronics from potential damage.

Causes of a bad overlay could include cracked or broken plastic, water damage leading to swollen or peeling material, or general wear and tear over time that degrades appearance.

Symptoms of a bad overlay are:

• Exposure of wiring or electrical components
• Illegible or missing labeling for controls
• Loose, cracked, or broken trim pieces
• Swollen, peeling, or degraded surface finish

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap is an OEM part for GE ranges. It covers the burner head, helping to distribute the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

Common causes of a bad burner cap include exposure to high heat, which can cause warping or discoloration, physical damage from dropping or mishandling, and buildup of food residue that can degrade the material over time.

Symptoms of a bad burner cap include:

• Uneven or weak flame
• Difficulty in lighting the burner
• Visible cracks, chips, or discoloration on the cap
• Burner not performing efficiently

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Large V2 is an OEM part for GE gas ranges. It is designed to provide a consistent and even flame for cooking, ensuring efficient heat distribution for large pots and pans.

Causes of a bad burner can include clogging from food spills, wear and tear from frequent use, or damage from cleaning processes. A malfunctioning burner can lead to uneven cooking and reduced heating efficiency.

Symptoms of a bad burner include:

• Uneven or weak flame
• Burner not igniting properly
• Sputtering or inconsistent flame
• Visible damage or clogging on the burner surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Clip Igniter is an OEM replacement part for GE ranges.

This GE OEM replacement is also compatible with some Hotpoint, Sears Kenmore, and RCA models.
