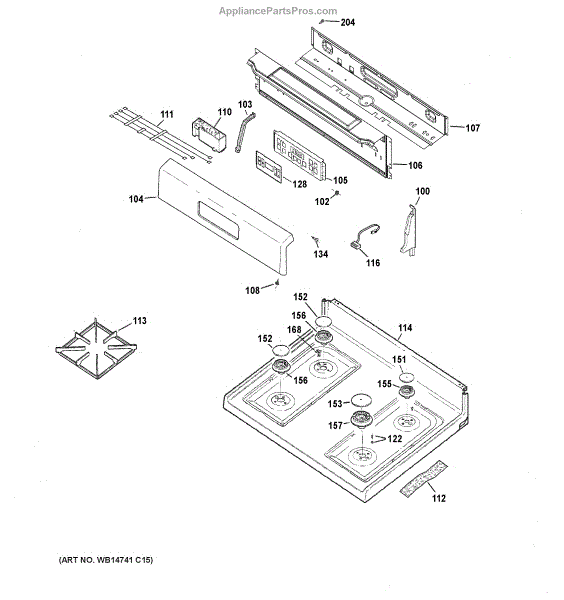

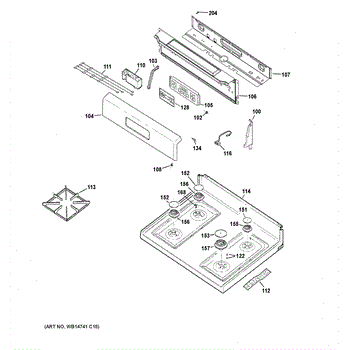

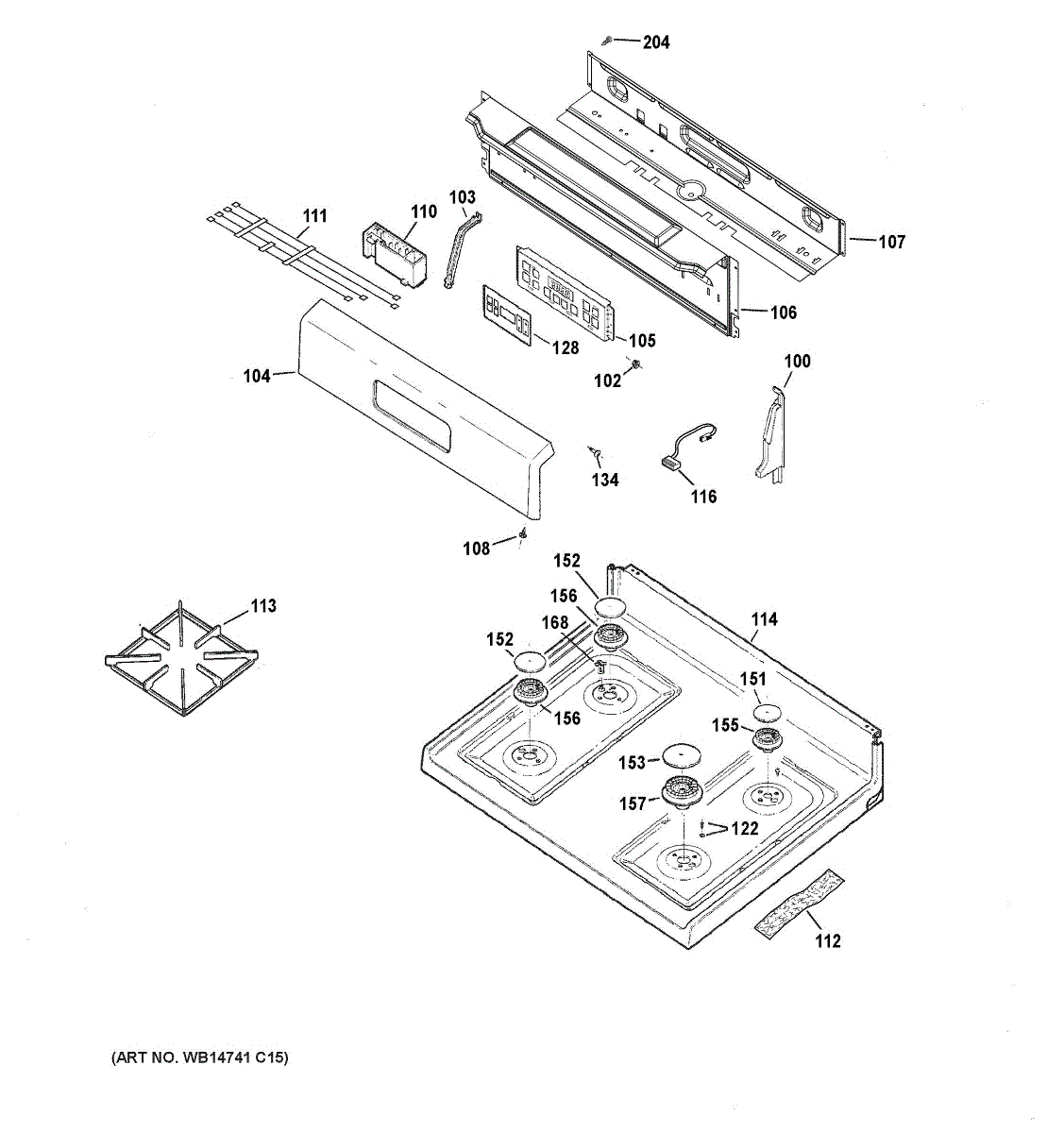

Parts for Hot Point RGBS400DM3WW: Control Panel & Cooktop Parts

Color: White. Left Hand side.

Color: White. Right Hand side

Size: 10-32 GXTT FLP.595 S

Color: White. Mounting screw for end caps.

The Ignition Module is an OEM part for GE gas ovens and ranges. As the “brains” regulating ignition functions, it works to precisely control gas valve operation and safely spark each burner using the glowbar.

Symptoms of an ignition module that needs replacing can include:

• Intermittent or complete failure of one or more burners to ignite
• Error codes shown regarding ignition issues
• Inability to adjust/maintain proper flame height or temperature
• Burners that rapidly cycle on and off inconsistently

Causes are often due to internal electronic component wear or failures over time. Replacing with this GE OEM module ensures your appliance’s ignition system functions reliably and dependably to allow safe, full-featured cooking. As with all GE parts, it is also compatible with ranges from Hotpoint, RCA, and select Kenmore models.


The HV Electrodes and Harness Assembly is an OEM part for GE gas ranges. It transmits high-voltage electricity to strategically placed components.

Symptoms of a bad HV electrode and harness include:

• Unpredictable or incomplete heating within oven cavity sections
• Error codes related to HV delivery issues preventing bake/broil
• Frayed, loose, or water-damaged wiring presenting shock hazards

Causes involve normal wear to materials transmitting continuous high voltage. Exposure to condensation or food spillages can damage insulation prematurely as well.

This part is also compatible with Hotpoint, RCA, and select Kenmore models.

This surface burner grate assembly replaces the hairpin-style grate used on select gas ranges and cooktops. It restores a stable, level cooking surface so pots and pans sit securely over the burner.

• Supports cookware over the flame and helps center pots for even heating
• Hairpin profile and footprint provide proper burner clearance on compatible models
• Replaces a cracked, warped, chipped, or broken grate that rocks or won't sit flat
• Common symptoms: unstable cookware, uneven pan support, or flaking finish

• Turn off all burners and allow the cooktop to cool completely before servicing
• Lift off the old grate and clean the cooktop support area
• Position the new grate so all feet rest flat and it sits level
• Verify proper clearance to burner caps and igniters before use

This white porcelain range top replaces a damaged or worn cooktop surface to restore a clean look and proper support for burners and grates. It helps keep spills contained and makes surface cleaning easier. What it does:

• Provides a stable, heat-resistant surface for burners and grates
• Covers and protects internal components from spills and debris
• Restores proper alignment so burners and grates sit correctly
• Improves appearance if the original top is chipped, cracked, or rusted

• One white porcelain range top

• Disconnect power (and gas if applicable) before beginning any work
• Remove grates, burner caps, and control knobs as needed to access the top
• Handle carefully—edges and metal tabs may be sharp; use gloves

This control harness connects the appliance control board to switches, sensors and power, restoring reliable signal and power routing for proper operation. Replace a damaged harness to fix intermittent controls or loss of display and functions. What it does

• Routes power and control signals between the main control board and components.
• Replaces frayed or broken wiring that can cause intermittent or no response from controls.
• Helps eliminate faults like blank displays, unresponsive buttons, or modules that won't start.
• Prevents electrical arcing and poor connections from damaged wires or terminals.

• Disconnect power before starting any repair to avoid shock or injury.
• Compare the replacement harness to the original for connector type and wire routing before installing.
• Route wires away from heat sources and moving parts; secure with existing clips or ties.
• If connectors are corroded or pins are damaged, replace the connector or harness rather than forcing connections.

This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

The Overlay is an OEM part for GE ranges. It serves as the protective external covering for the range's control panel. The overlay shields users and sensitive electronics from potential damage.

Causes of a bad overlay could include cracked or broken plastic, water damage leading to swollen or peeling material, or general wear and tear over time that degrades appearance.

Symptoms of a bad overlay are:

• Exposure of wiring or electrical components
• Illegible or missing labeling for controls
• Loose, cracked, or broken trim pieces
• Swollen, peeling, or degraded surface finish

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This small burner cap sits atop the surface burner head on your gas range, focusing and evenly distributing the flame for steady heat and reliable ignition. Replacing a worn, warped, or missing cap restores proper flame shape and performance.

• Directs and spreads the flame pattern for even cooking
• Shields the burner head from spills and debris
• Helps ensure quick, consistent ignition when properly seated
• Replace if you see uneven/yellow flames, delayed ignition, sputtering, or poor simmer control

• Allow the cooktop to cool; turn off gas supply and power before servicing
• Lift off the old cap and clean the burner head/mating surface
• Seat the new cap centered and flush—do not force or use adhesives
• Test ignition and verify an even, blue flame; reseat if needed

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Burner is an OEM part for GE ranges and cooktops. This medium-sized burner part provides a balanced heat source for cooking. The medium burner is often used for everyday cooking tasks, offering a versatile option for boiling, sautéing, and simmering.

Causes of damage or malfunction in a burner can stem from regular use, spills and buildup of cooking materials that clog the burner ports, or corrosion over time affecting the burner's efficiency.

Symptoms of a bad medium burner include:

• Inability to achieve a consistent flame
• The burner not lighting at all
• An irregular flame pattern or color (e.g., yellow flames instead of blue)

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Large V2 is an OEM part for GE gas ranges. It is designed to provide a consistent and even flame for cooking, ensuring efficient heat distribution for large pots and pans.

Causes of a bad burner can include clogging from food spills, wear and tear from frequent use, or damage from cleaning processes. A malfunctioning burner can lead to uneven cooking and reduced heating efficiency.

Symptoms of a bad burner include:

• Uneven or weak flame
• Burner not igniting properly
• Sputtering or inconsistent flame
• Visible damage or clogging on the burner surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Clip Igniter is an OEM replacement part for GE ranges.

This GE OEM replacement is also compatible with some Hotpoint, Sears Kenmore, and RCA models.
