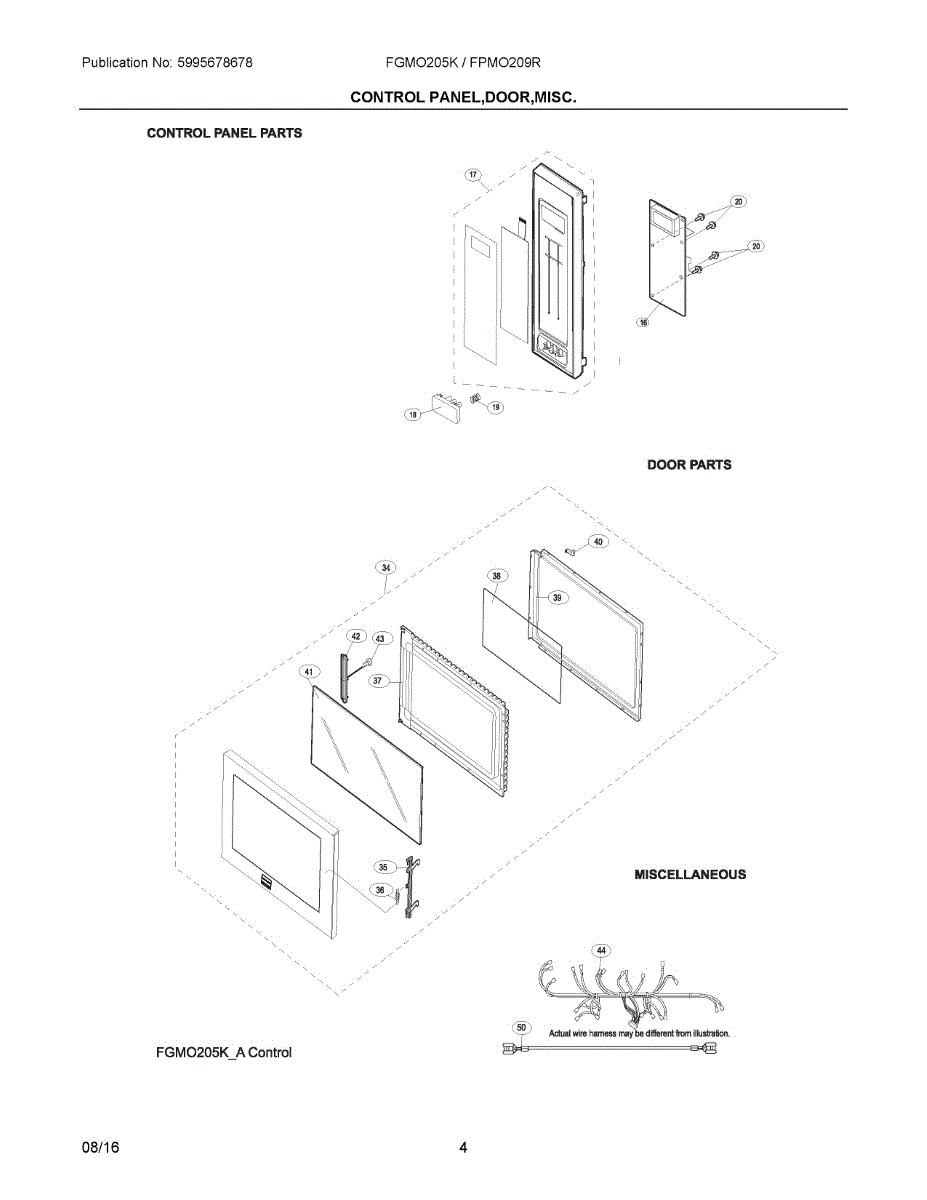

Parts for Electrolux FPMO209RFB: 03 - Control Panel,Door,Misc Parts

This electronic control is the main user-interface circuit board for your oven or range, restoring responsive touch/key functions and reliable oven operation. Replaces a failed control assembly to get the display, timer, and bake/clean cycles working again. What it does:

• Manages oven functions and temperatures by sending signals to the heating elements and relays
• Powers and displays the control pad, clock/timer, and function indicators
• Common fix for unresponsive buttons, blank or erratic display, or ovens that won't start heating
• Works as the central logic board coordinating bake, broil, timer, and safety cycles

• One electronic control board

• Disconnect power at the breaker or unplug the appliance before attempting any service
• Handle the board by the edges and avoid touching contacts or solder joints to prevent ESD damage
• Verify connectors are fully seated and secured; replace any damaged harnesses or mounting hardware as needed

The Microwave Touchpad and Control Panel is an OEM replacement part for Frigidaire microwave ovens. It houses all of the electronic controls and displays used to operate the microwave. This touchpad works with the control board to allow for setting time/power levels and monitoring cooking progress.

Causes of a bad touchpad and control panel can include moisture inside the microwave leading to damage of electronic components over time. Heavy impact or general wear and tear are also possible factors.

Symptoms of issues include:

• Buttons/sensors that do not respond properly
• Erratic or non-functional display
• Inability to set or change cooking settings
• Failure of the microwave to operate as expected
• No power/lights when turning on the unit

This part is compatible with Electrolux, Gibson, Kelvinator, and some Kenmore microwaves as well.

This push button is a direct-fit control-panel button that lets you reliably actuate a selector or function on your appliance. Restores a worn, cracked or non-engaging button to normal operation and appearance. What it does:

• Serves as the user-facing button that presses into a control switch or micro-switch behind the panel
• Replaces cracked, broken, missing or faded buttons that no longer engage or feel secure
• Helps resolve symptoms such as a button that sticks, won't depress, or fails to trigger the underlying control
• Restores the control panel's appearance when the original button is cosmetically damaged

• One push button as shown

• Turn off and unplug the appliance before beginning any repair
• Most installations are a simple snap-in or trim removal to access the button; use care removing bezel or fascia
• Test the button operation after reassembly to ensure proper engagement

A replacement tension spring used to restore normal movement and positioning for the affected appliance component. Replaces a worn or broken spring to help parts return to their intended position and reduce loose or uneven operation. What it does:

• Provides tension or counter-force for a door, drawer or linkage so the part moves smoothly and returns to position.
• Restores alignment and prevents sagging, slamming, or parts that don't stay in place.
• Reduces noise and uneven movement caused by a stretched or broken spring.
• Useful when a worn spring causes intermittent operation or poor component response.

• Disconnect power and water before servicing. Wear eye protection and gloves — springs can release suddenly.
• Inspect mounting points, clips and anchors; replace any damaged hardware to ensure proper function.
• Use appropriate tools (needle-nose pliers, spring hook) and follow OEM instructions for safe installation.

This is a genuine mounting screw used to secure appliance components and panels for a safe, stable fit. It replaces a lost or damaged fastener to restore proper alignment and reduce rattles or loose trim. What it does:

• Secures panels, trim, brackets or small assemblies to the appliance frame
• Prevents vibration-related noise and loose or sagging parts
• Restores proper fit after repair or disassembly
• Useful when the original screw is stripped, missing, or broken

• One mounting screw

• Use the correct screwdriver or bit to avoid stripping the head
• Power off and unplug the appliance before servicing when applicable
• Keep removed hardware organized to ensure correct reassembly
• If threads are damaged, replace with the specified OEM screw only

This door latch hook secures the refrigerator door latch so the door closes and seals correctly. Replacing a broken or worn hook restores reliable door latching and helps prevent temperature loss from an improperly closed door. What it does:

• Secures the door latch assembly so the refrigerator door stays closed.
• Restores proper latch engagement to help maintain the door seal and consistent cooling when the door was not closing fully.
• Can address symptoms such as a door that won't latch, door popping open, or visible damage to the hook.
• Direct replacement for the factory latch hook to restore proper fit and function.

• Disconnect power to the appliance before starting any repair.
• Remove door trim or inner liner as needed to access the latch; keep all screws and fasteners for reassembly.
• Verify latch alignment and striker position before tightening; hand-tighten first and avoid over-tightening.

This door latch spring restores the return tension in your microwave's door release mechanism so the latch engages and releases correctly. Replacing a fatigued or broken spring helps ensure safe door operation and reliable interlock switch activation.

• Provides the return force for the latch lever/door release button
• Helps door hooks engage fully and release smoothly
• Supports proper interlock switch actuation so the unit will run only when the door is closed
• Typical failure signs: door won't latch, "open/close door" error, door button sticks, or needing to hold the door shut to start

• Disconnect power. Microwaves can retain dangerous high voltage even when unplugged; discharge the capacitor
• Access the latch assembly behind the control panel; note the spring's orientation and attachment points
• Use needle-nose pliers to install without overstretching; inspect the latch lever and door hooks for wear
• Verify proper door closure and interlock switch operation before reassembly

This replacement frame restores the appliance's front trim and structural support where the cabinet meets the control or door area, improving appearance and panel alignment. It's a direct-fit exterior trim piece designed for a clean, finished look. What it does:

• Replaces cracked, warped, or broken front trim that affects appearance
• Supports and aligns adjacent panels, doors, or control bezels
• Helps prevent gaps where dirt or moisture can collect
• Restores a secure mounting surface for attached components

• One replacement frame piece as pictured

• Disconnect power to the appliance before starting any repair
• Minor disassembly of surrounding panels may be required; keep fasteners organized
• Use appropriate hand tools and avoid overtightening to prevent cracking

The Capacitor/Rectifier is an OEM part for Frigidaire microwaves. It functions to convert alternating current (AC) into direct current (DC) that is required to power the microwave's magnetron tube and internal control circuits. The capacitor works alongside the high-voltage transformer to start and maintain safe operation during cooking cycles.

Causes of failure include drying out or cracking of the capacitor's internal dielectric material over extended heat exposure and use. It may also fail prematurely due to power surges.

Symptoms of a bad component include:

• The microwave failing to start or having inconsistent power levels
• Buzzing or humming from internal electronic areas
• Tripped circuit breakers or blown fuses after use
• Fault codes or error messages related to electrical issues

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore microwave models.
