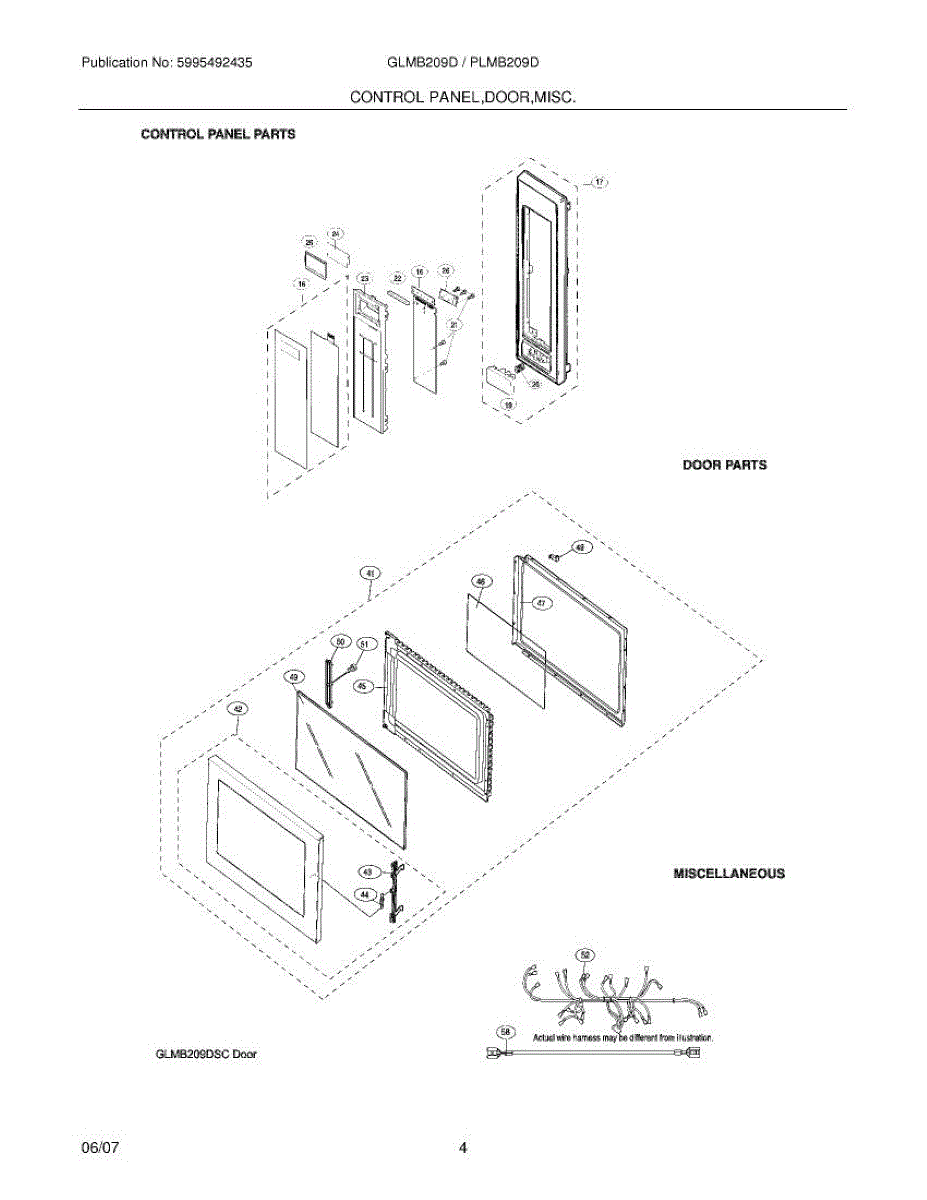

Parts for Frigidaire PLMB209DCD: 05 - Control Panel / Door Parts

This is a control board manufactured by Frigidaire and is sourced directly from the manufacturer.The control board allows the the user to select the various cycles such as the wash, spin, and drain cycle. This part is critical to proper functionality and will need to be replaced if worn, detached, corroded, or otherwise rendered ineffective in any way. The washing machine should be fully disconnected from the power and water sources prior to starting any repairs. Ensure work gloves are worn to prevent injuries from occurring.As an authentic OEM part, this control board is compatible with different brands of washing machines that have been made by Frigidaire, Electrolux, Gibson, Westinghouse, and some other brands. This part is sold individually and is a genuine part made of high-quality, durable, non-corrosive materials.

A replacement tension spring used to restore normal movement and positioning for the affected appliance component. Replaces a worn or broken spring to help parts return to their intended position and reduce loose or uneven operation. What it does:

• Provides tension or counter-force for a door, drawer or linkage so the part moves smoothly and returns to position.
• Restores alignment and prevents sagging, slamming, or parts that don't stay in place.
• Reduces noise and uneven movement caused by a stretched or broken spring.
• Useful when a worn spring causes intermittent operation or poor component response.

• Disconnect power and water before servicing. Wear eye protection and gloves — springs can release suddenly.
• Inspect mounting points, clips and anchors; replace any damaged hardware to ensure proper function.
• Use appropriate tools (needle-nose pliers, spring hook) and follow OEM instructions for safe installation.

This is a genuine mounting screw used to secure appliance components and panels for a safe, stable fit. It replaces a lost or damaged fastener to restore proper alignment and reduce rattles or loose trim. What it does:

• Secures panels, trim, brackets or small assemblies to the appliance frame
• Prevents vibration-related noise and loose or sagging parts
• Restores proper fit after repair or disassembly
• Useful when the original screw is stripped, missing, or broken

• One mounting screw

• Use the correct screwdriver or bit to avoid stripping the head
• Power off and unplug the appliance before servicing when applicable
• Keep removed hardware organized to ensure correct reassembly
• If threads are damaged, replace with the specified OEM screw only

This LED light sheet is the refrigerator interior light assembly that provides even, long-lasting illumination so you can see inside the fresh food and freezer compartments. It replaces a failed or dim/fractured LED panel. What it does:

• Replaces the refrigerator's interior LED panel to restore consistent lighting
• Resolves symptoms such as no light, dim or flickering illumination, or visible damage to the light panel
• Provides a direct-fit LED sheet that mounts behind the interior lens or reflector
• Works with the refrigerator's existing wiring and connector

• Disconnect power to the appliance before beginning work to avoid shock
• Handle the LED sheet by the edges; avoid touching LEDs and circuit traces
• Use basic hand tools to remove the interior light cover and mounting screws; keep track of fasteners

This door latch hook secures the refrigerator door latch so the door closes and seals correctly. Replacing a broken or worn hook restores reliable door latching and helps prevent temperature loss from an improperly closed door. What it does:

• Secures the door latch assembly so the refrigerator door stays closed.
• Restores proper latch engagement to help maintain the door seal and consistent cooling when the door was not closing fully.
• Can address symptoms such as a door that won't latch, door popping open, or visible damage to the hook.
• Direct replacement for the factory latch hook to restore proper fit and function.

• Disconnect power to the appliance before starting any repair.
• Remove door trim or inner liner as needed to access the latch; keep all screws and fasteners for reassembly.
• Verify latch alignment and striker position before tightening; hand-tighten first and avoid over-tightening.

This door latch spring restores the return tension in your microwave's door release mechanism so the latch engages and releases correctly. Replacing a fatigued or broken spring helps ensure safe door operation and reliable interlock switch activation.

• Provides the return force for the latch lever/door release button
• Helps door hooks engage fully and release smoothly
• Supports proper interlock switch actuation so the unit will run only when the door is closed
• Typical failure signs: door won't latch, "open/close door" error, door button sticks, or needing to hold the door shut to start

• Disconnect power. Microwaves can retain dangerous high voltage even when unplugged; discharge the capacitor
• Access the latch assembly behind the control panel; note the spring's orientation and attachment points
• Use needle-nose pliers to install without overstretching; inspect the latch lever and door hooks for wear
• Verify proper door closure and interlock switch operation before reassembly

This replacement frame restores the appliance's front trim and structural support where the cabinet meets the control or door area, improving appearance and panel alignment. It's a direct-fit exterior trim piece designed for a clean, finished look. What it does:

• Replaces cracked, warped, or broken front trim that affects appearance
• Supports and aligns adjacent panels, doors, or control bezels
• Helps prevent gaps where dirt or moisture can collect
• Restores a secure mounting surface for attached components

• One replacement frame piece as pictured

• Disconnect power to the appliance before starting any repair
• Minor disassembly of surrounding panels may be required; keep fasteners organized
• Use appropriate hand tools and avoid overtightening to prevent cracking

This replacement electrical wire restores a damaged or faulty connection in compatible Frigidaire appliances, helping re-establish reliable power or signals to components. Use it when wiring is cracked, melted, or showing corrosion. What it does:

• Replaces a worn or damaged single conductor wire used in internal appliance circuits
• Restores continuity to fix intermittent power, component failure, or nonfunctional controls
• Prevents shorts caused by exposed or frayed insulation when installed correctly
• Matches OEM routing and connection points when used with the original harness and terminals

• Disconnect power before inspecting or replacing any internal wiring
• Verify wire routing and terminal fit with the original part; secure with appropriate connectors or clips
• Do not splice with incompatible gauge or insulation types; follow appliance wiring diagrams
