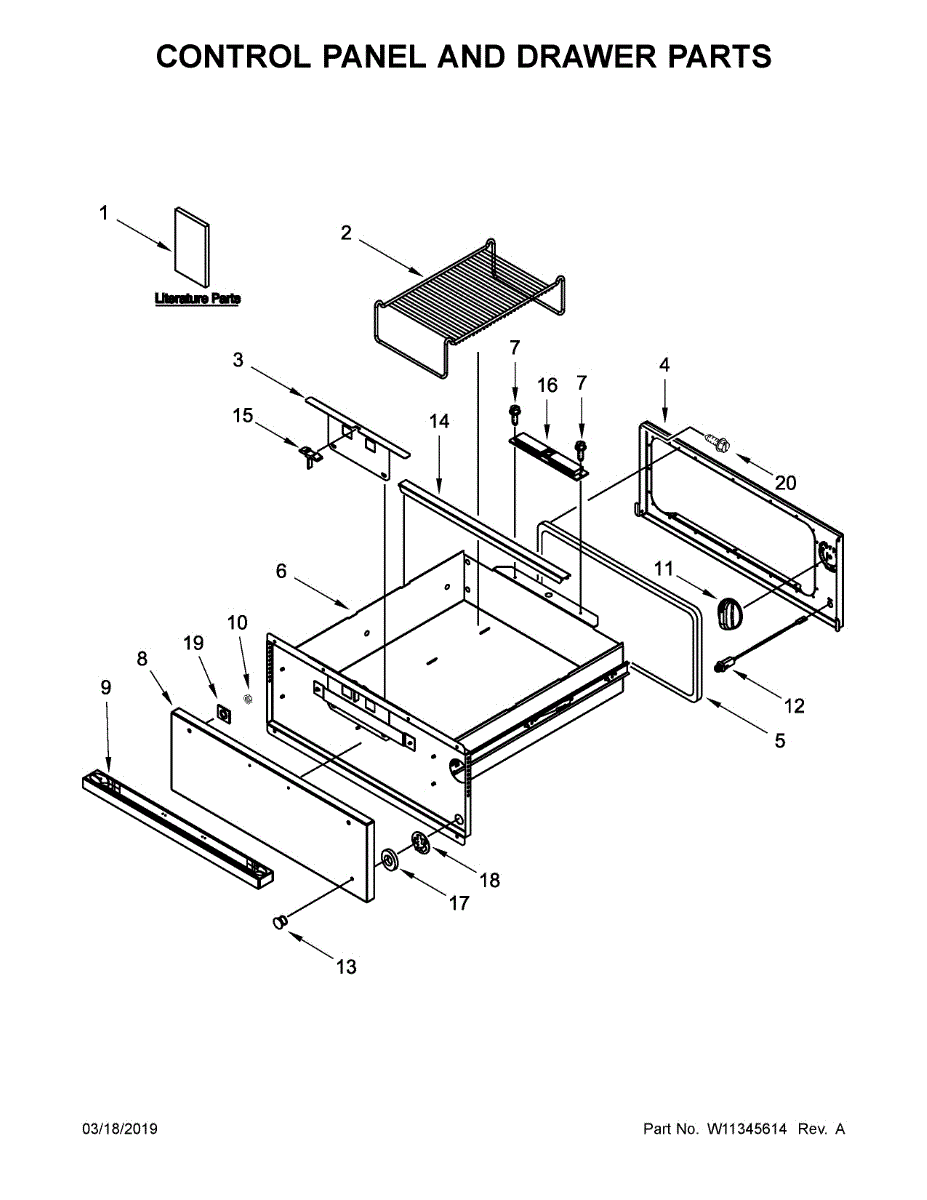

Parts for Jenn-Air JJD3030IM00: Control Panel And Drawer Parts

Replacement rack for warming drawer. Installs inside drawer cavity to hold dishes and pans. Order if original rack is bent, warped, or missing.

This is the inner metal shell of the warming drawer that slides beneath the oven compartment. It forms the main body of the warming drawer, holding food at serving temperature after cooking. Replace this assembly if the drawer is dented, warped, rusted, or no longer slides smoothly on its tracks.

Warming drawer indicator light bulb illuminates control panel to show unit is operating. Replace when light fails or flickers. Verify fit with model number.

Replacement drip tray rail pan for warming drawers. Collects and channels condensation away from internal components. Needed when original is cracked, warped, or missing.

This is a small spacer used behind or around the indicator light lens on a range or oven control panel. It ensures the lens sits at the correct depth and position for proper alignment and light visibility. Replace this spacer if the indicator light lens is recessed too far, sits unevenly, or the original spacer is cracked or lost.

This small clip secures the indicator light lens in place on a warming drawer. It snaps onto the lens housing to hold the translucent cover over the indicator bulb. Replace this clip if the indicator light lens is loose, keeps falling out, or the original retainer is broken or missing.

Small mounting spacer that maintains proper positioning between internal range components. Replace if cracked, worn, or missing to restore alignment.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit
