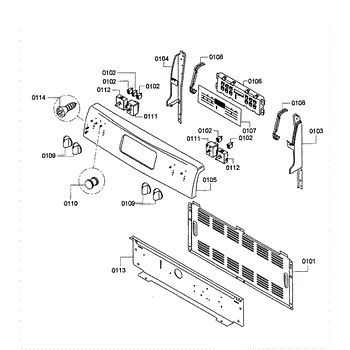

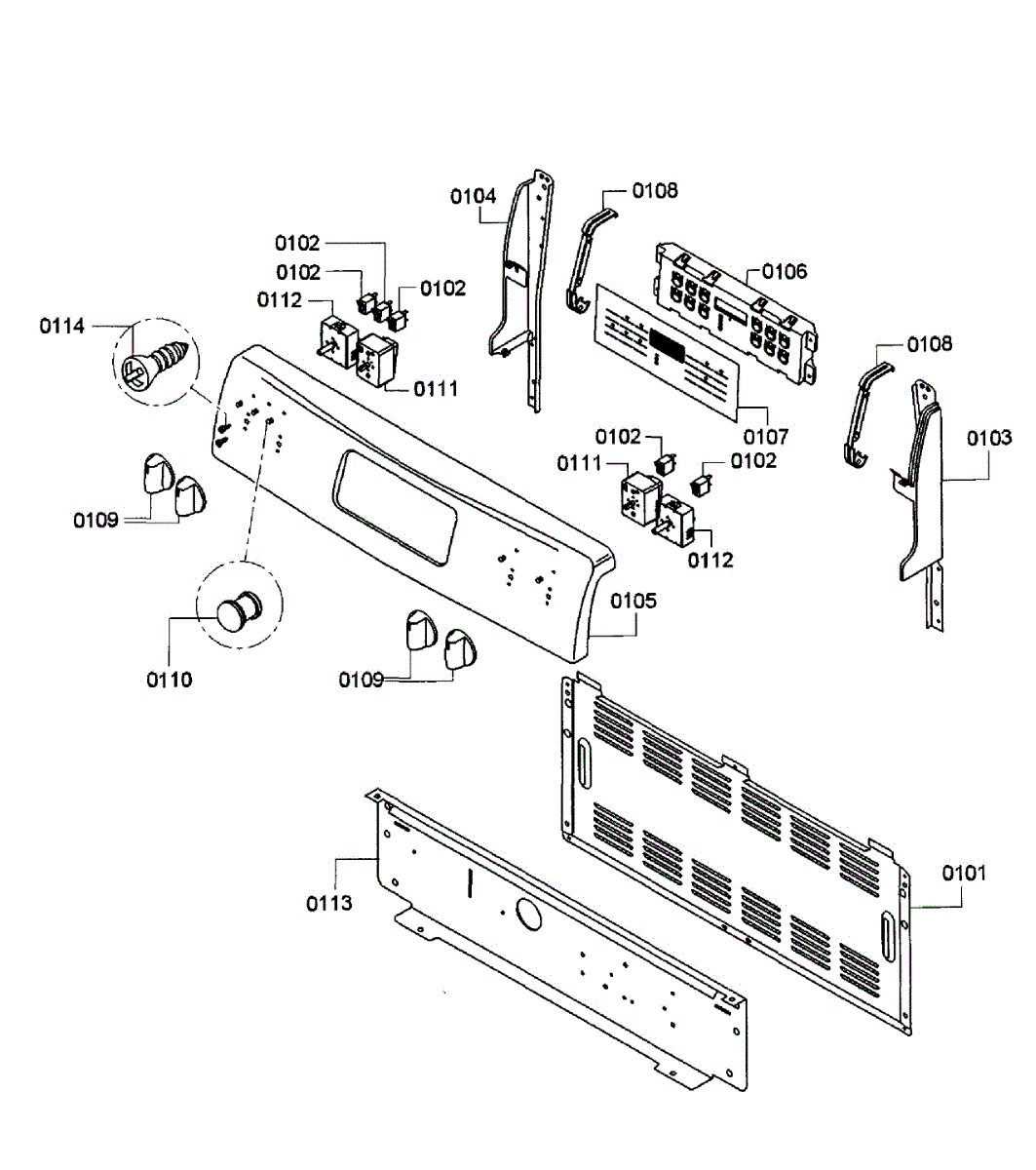

Parts for Bosch HES3023U/06: Control Panel Parts

This back panel is the rear housing panel that protects internal components and helps direct airflow. It restores the appliance's sealed rear enclosure to prevent debris intrusion and maintain proper component placement. What it does

• Covers and protects internal parts at the rear of the appliance from dust and physical damage.
• Provides mounting surfaces and alignment for internal assemblies and hardware.
• Helps maintain correct airflow paths and vent openings to support normal operation.
• Stops rattles or vibrations caused by a missing or damaged rear panel.
• Visible damage, gaps at the rear, or rattling from the back are common symptoms indicating replacement.

• One back panel.

• Disconnect power and gas before beginning any repair.
• Remove access panels or trim and retain fasteners for reassembly; panel is usually secured with screws.
• Handle edges carefully to avoid cuts; wear gloves and eye protection.
• Verify proper alignment and secure all fasteners; check that vents and seals are seated correctly before restoring power.

This electronic control board regulates the appliance's operations and user interface, restoring proper cycle control and display response. It replaces a faulty control assembly to help the appliance run configured programs as intended. What it does

• Manages timed cycles, relays, and programmed functions so the appliance runs selected modes.
• Controls display indicators, touch/keypad input and status feedback.
• Coordinates safety interlocks and motor/valve signals for reliable operation.
• Resolves symptoms like unresponsive controls, error codes, failure to start, or interrupted cycles.

• Disconnect power to the appliance before starting any work to avoid shock or damage.
• Handle the board carefully; avoid touching components and protect against static discharge.
• Verify the part number and appliance model match before installation.
