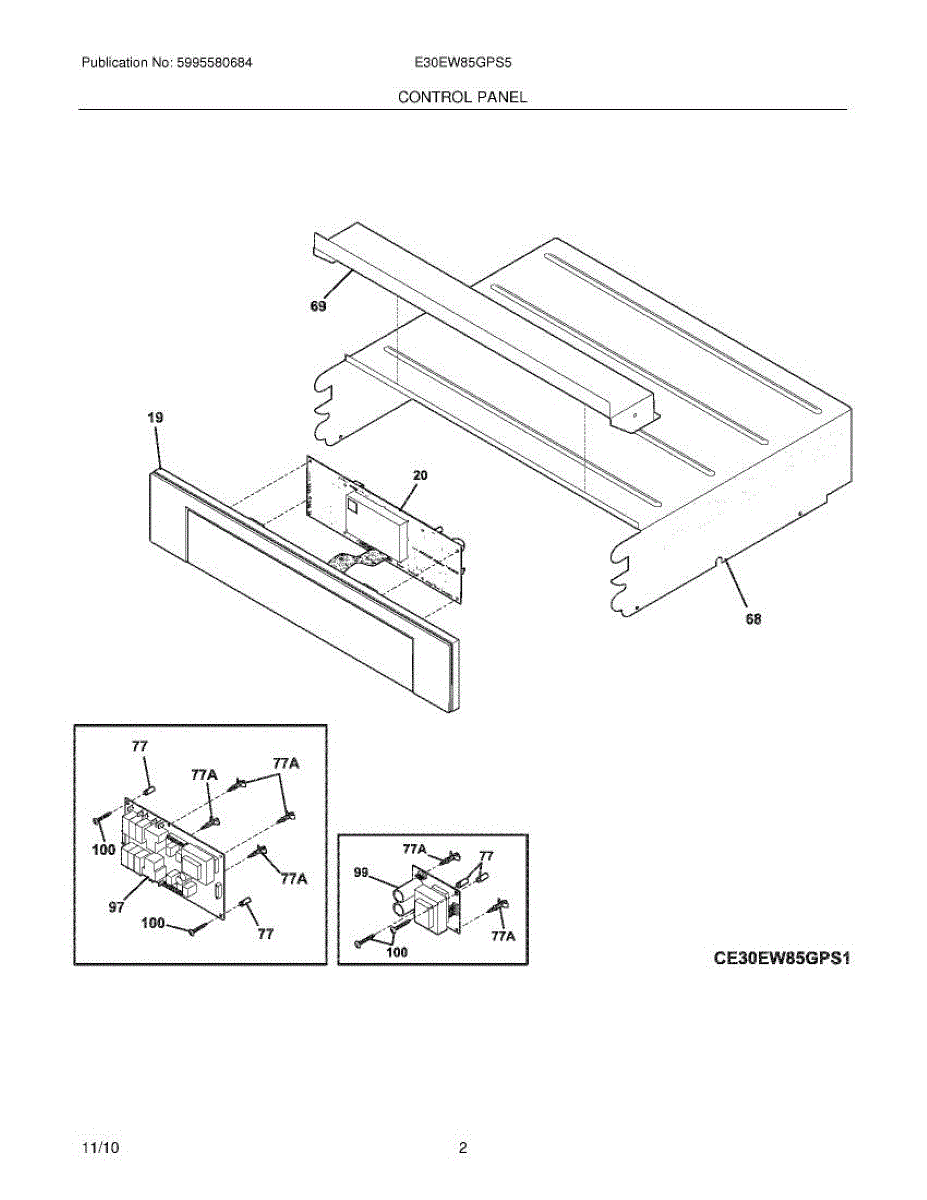

Parts for Electrolux E30EW85GPS5: 03 - Control Panel Parts

This listing is for a Frigidaire oven control board. The oven control board works in conjunction with the control board assembly and receives information regarding setting and oven temperature. Essentially the control board is the most important component in regards to the oven's function. The only way to properly ensure a control board has gone bad is through testing with a voltage meter. However, initial signs such as certain burners not working or the broil or baking functions failing can also be indicators. On this model, the board contains a faceplate that shows the time, which means the timer will also go out. On this model, the control board is housed in a protective casing behind the control assembly on a wall oven. Slide the oven from the wall and remove the anchoring screws located around the perimeter of the oven. The control assembly can be removed, exposing the protective casing. Remove the small screws that fasten the casing. Unplug the control board from the wire harness and begin the installation of the new component. This part is made exclusively for Electrolux appliances. The product is sourced directly from the manufacturer as a genuine OEM product.

This electronic control board manages appliance functions and settings, restoring responsive control and reliable operation when the original board fails. It replaces a faulty or non-responsive main control to help the unit run correctly. What it does:

• Receives input from user controls and sensors and sends commands to motors, valves, and displays
• Replaces a board that causes unresponsive buttons, erratic cycles, or no power to controlled components
• Helps resolve issues like intermittent operation, incorrect cycle behavior, or loss of control functions
• Works as the main logic/control interface for appliance operation

• One control board only

• Disconnect power before accessing electrical components to avoid shock or damage
• Handle the board by edges; avoid touching circuitry or connector pins
• Verify connectors and harness orientation before reconnecting; secure mounting to prevent vibration damage

A single replacement mounting screw used to secure appliance panels, trim, or small brackets. Restores proper fastening so parts stay aligned and eliminates loose or rattling components. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Secures components that vibrate or shift during normal use
• Helps stop rattling, misalignment, or gaps caused by a missing or loose screw
• Works as a direct hardware replacement where the OEM screw is required

• One screw

• Use the correct driver and size to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread damage
• Disconnect power or follow appliance safety procedures before accessing internal components
• Replace all like fasteners for best fit

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
