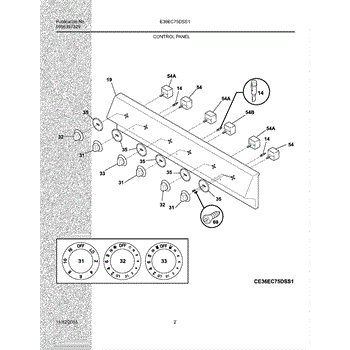

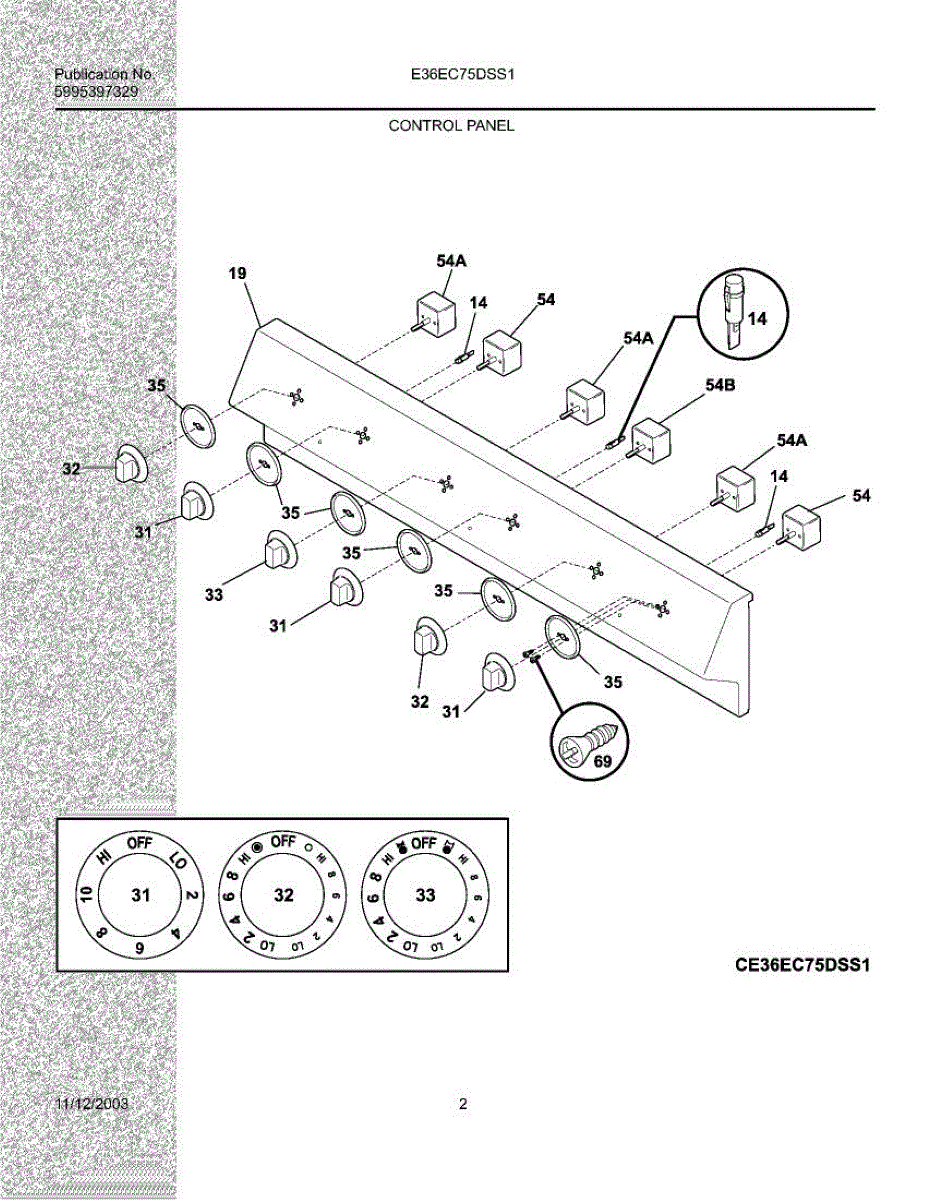

Parts for Electrolux E36EC75DSS1: 03 - Control Panel Parts

This push-button door switch detects when the appliance door is closed and allows normal operation. It replaces a worn or failed door interlock to restore reliable start/stop response and user safety. What it does

• Acts as the door-closed sensor that permits the appliance to start when the door is latched.
• Interrupts power to drive/heating circuits when the door opens, preventing operation with an open door.
• Stops intermittent starting or running caused by a faulty or stuck switch.
• Helps resolve symptoms like the appliance not starting, stopping mid-cycle, or not responding to door closure.

• One door switch (push-button type)

• Disconnect power (unplug or shut off breaker) before accessing electrical components.
• Remove door trim or control panel as needed to access and replace the switch; keep track of screws and clips.
• Verify switch operation with a continuity meter before and after installation.

This replacement switch restores dependable on/off control for the appliance function it serves. Replacing a worn or heat-damaged switch helps eliminate intermittent operation and ensures the selected feature powers correctly and safely. What it does:

• Opens and closes the electrical circuit to the assigned component when actuated
• Can resolve issues where a feature will not turn on or will not shut off
• Helps correct intermittent operation caused by worn or pitted contacts
• Addresses damage such as melting, arcing, discoloration, or a loose/"spongy" feel

• 1 switch

• Disconnect power at the breaker before servicing to avoid electrical shock
• Note or photograph wire positions; transfer leads one-for-one to the new switch
• Ensure terminals are fully seated; do not force or stretch connectors
• Inspect wiring for heat damage and correct loose connections before reassembly

This electrical microswitch opens or closes a circuit when its actuator is engaged, allowing the control to sense position or enable a function. Replacing a worn switch restores reliable signaling and prevents intermittent faults in select ranges and wall ovens. What it does

• Changes state (open/closed) when actuated to complete or break a circuit
• Sends feedback to the control or enables power to a related component
• Helps ensure operations start/stop only when the mechanism is in the correct position
• Failure signs can include intermittent operation, cycles that won't start or finish, or related error codes/alarms

• 1 switch

• Disconnect power at the breaker before servicing
• Note/photograph wire positions and transfer one at a time to the new switch
• Match actuator orientation to the original and secure the switch firmly
• Verify function with a multimeter (continuity changes when actuated) before reassembly and testing

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment
