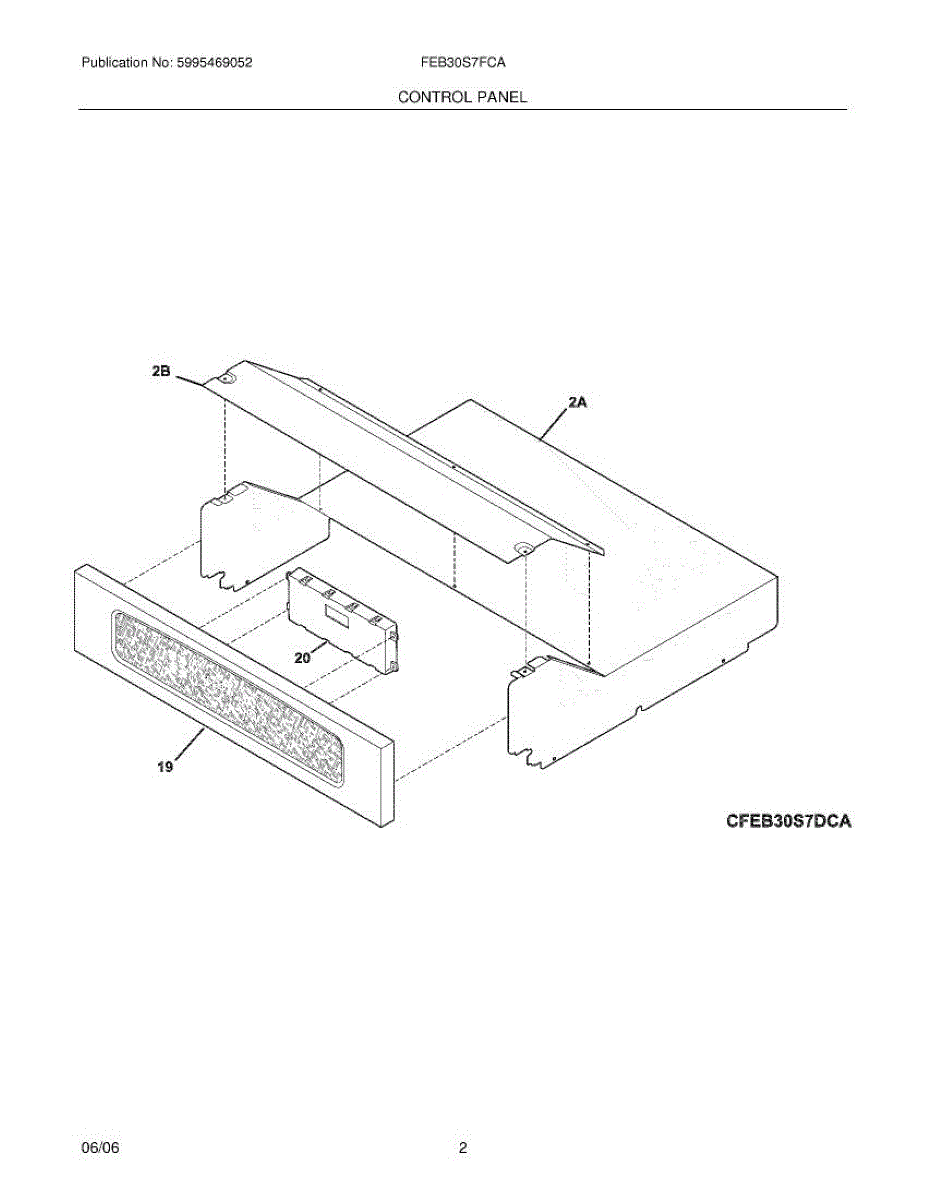

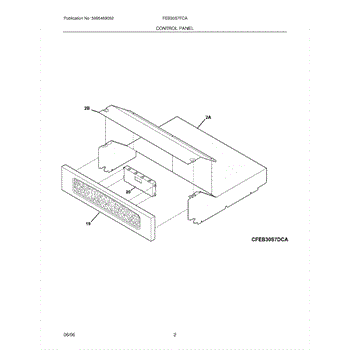

Parts for Frigidaire FEB30S7FCA: 03 - Control Panel Parts

This electronic clock timer assembly controls oven timing functions and displays time for baking and self-clean cycles. It replaces a worn or non-responsive oven timer to restore timed cook and clock features. What it does:

• Provides digital clock display and user inputs for timed baking and delay-start
• Controls oven timing functions used by bake, broil and self-clean cycles
• Commonly replaces units that show no display, incorrect time, or fail to start timed cycles
• Interfaces with the oven control to signal cycle start/stop and countdown completion

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the control panel; handle glass displays and connectors carefully
• Verify harness connectors and mounting orientation before final assembly

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
