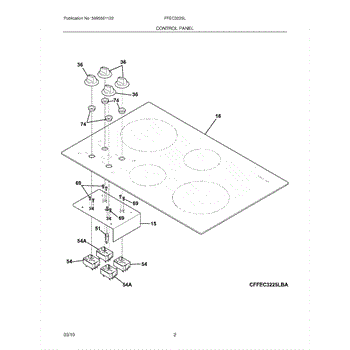

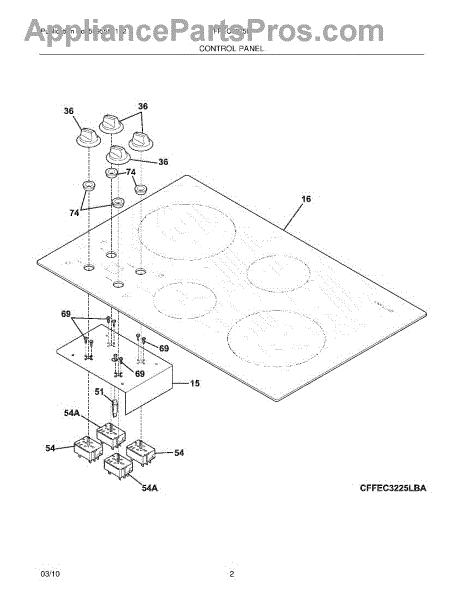

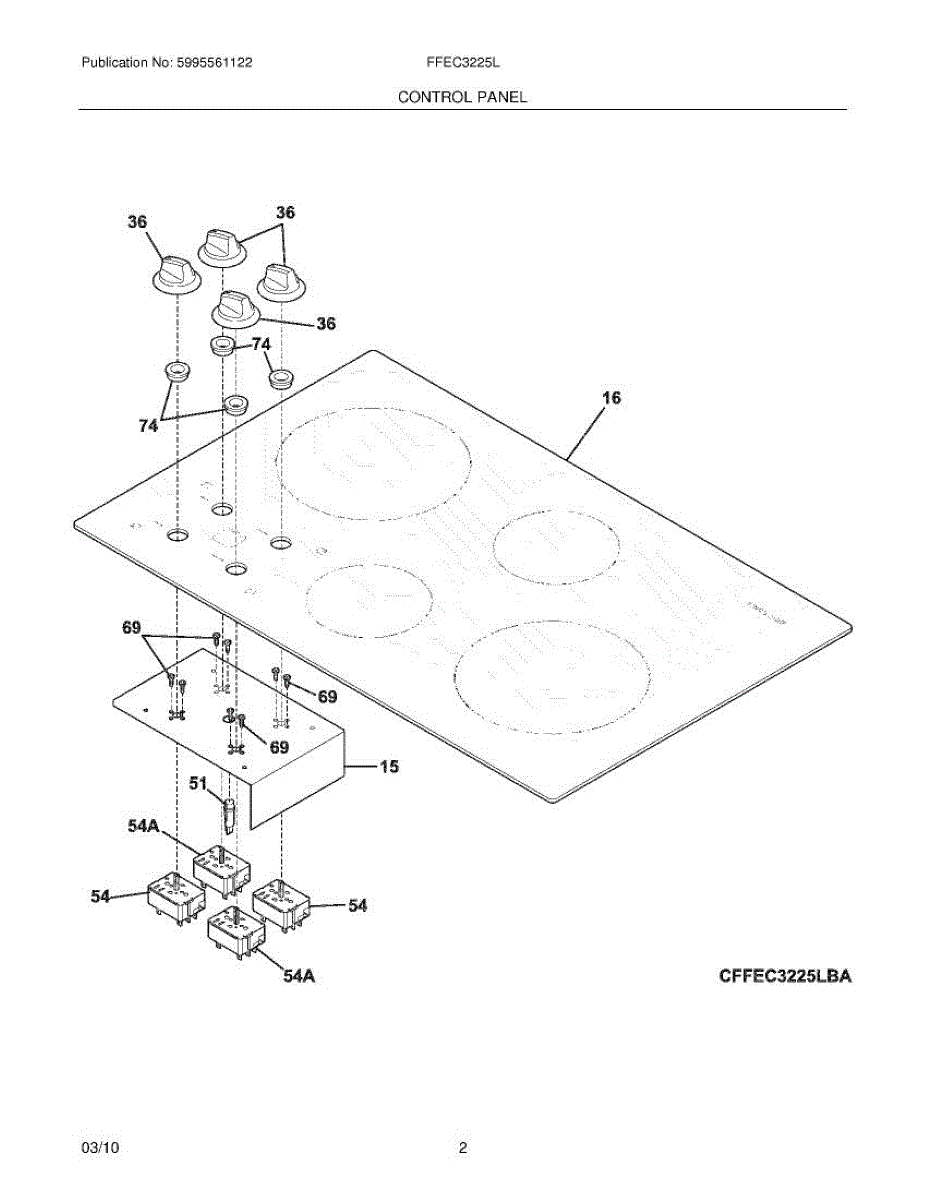

Parts for Frigidaire FFEC3225LBA: 03 - Control Panel Parts

This replacement control knob lets you turn the range's control shaft to set burner or oven temperature. Swapping a cracked or loose knob restores a secure grip and accurate, easy selection of settings.

• Attaches to the control stem to adjust heat levels or oven temperature
• Replaces knobs that are cracked, stripped, loose, or missing
• Helps when the knob falls off or spins without engaging the control
• Restores proper feel and alignment of settings on the control panel

• Ensure the appliance is off and cool before servicing
• Pull the old knob straight off the stem; do not twist or pry with tools
• Align the new knob with the stem orientation and press firmly until fully seated
• If the knob won't seat, inspect the control stem for wear or damage before forcing

Indicator light replaces the control-panel lamp that signals power or active functions, restoring visible status feedback for safer, more confident operation. Use this when the original lamp is dim, cracked, or fails to illuminate. What it does:

• Provides visible indication of power, cycle status, or selected functions on the appliance control panel.
• Restores clear status feedback when the original lamp is burned out or flickering.
• Helps troubleshoot whether a control or circuit is receiving power by showing when the indicator should be lit.
• Improves usability so settings and operating states are easy to confirm at a glance.

• Disconnect power to the appliance (unplug or turn off the breaker) before beginning work.
• Access may require removing the control panel or console.
• Handle the lamp carefully and avoid touching bulb surfaces; use gloves to prevent oil transfer.
• After installation, restore power and verify the indicator lights as expected; if it still does not light, further electrical diagnosis may be needed.

NOTE: Must order (2) new mounting screws, part# 5303288565 (5303323134) when ordering this switch due to a change.

The Surface Burner Switch is an OEM Replacement Part designed to control the large surface burner on your Frigidaire stove. This switch is suitable for an 8" element with a wattage range of 2136 - 2640 watts. With a capacity of 8.9-11.0 amps and 240 volts, it allows you to adjust the burner temperature by regulating the electrical current to the burner element, ensuring precise cooking temperatures.

Causes of a bad surface burner switch can include electrical faults, wear and tear from frequent use, or internal component failure. When the switch fails, it can result in the inability to control the burner temperature accurately, which may affect cooking performance.

Symptoms of a bad surface burner switch include:

• The burner not heating up or heating inconsistently
• Inability to adjust the burner temperature
• The burner remaining on high heat regardless of the setting
• Unusual sparking or electrical noises from the switch area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Note: For the new mounting screws, order part number 5303288565. Two are needed to properly mount the new switch.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment
