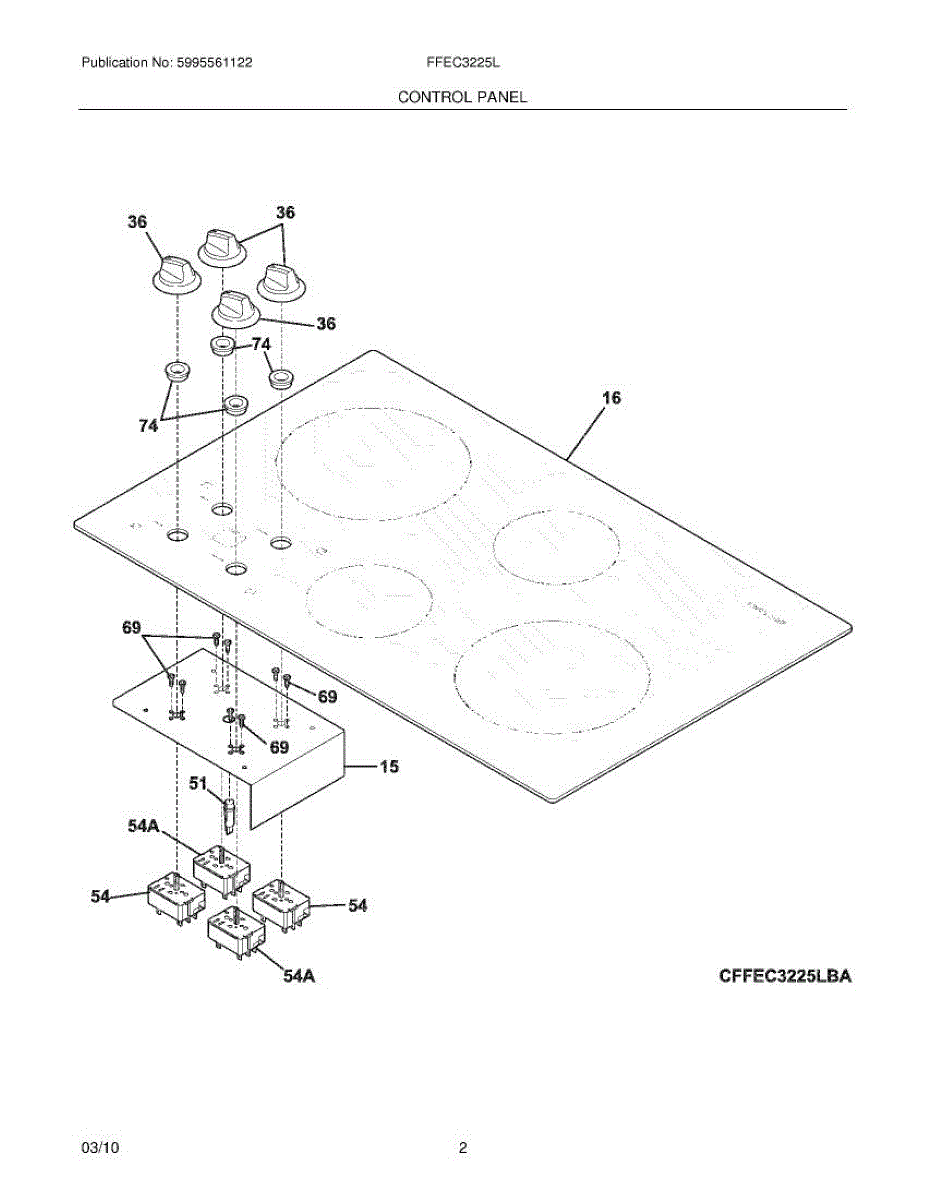

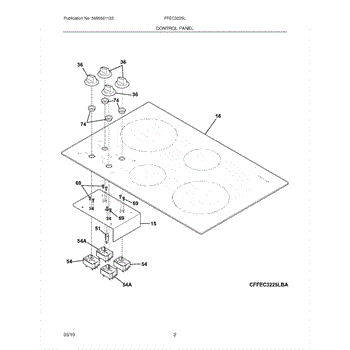

Parts for Frigidaire FFEC3225LWA: 03 - Control Panel Parts

NOTE: Must order (2) new mounting screws, part# 5303288565 (5303323134) when ordering this switch due to a change.

The Surface Burner Switch is an OEM Replacement Part designed to control the large surface burner on your Frigidaire stove. This switch is suitable for an 8" element with a wattage range of 2136 - 2640 watts. With a capacity of 8.9-11.0 amps and 240 volts, it allows you to adjust the burner temperature by regulating the electrical current to the burner element, ensuring precise cooking temperatures.

Causes of a bad surface burner switch can include electrical faults, wear and tear from frequent use, or internal component failure. When the switch fails, it can result in the inability to control the burner temperature accurately, which may affect cooking performance.

Symptoms of a bad surface burner switch include:

• The burner not heating up or heating inconsistently
• Inability to adjust the burner temperature
• The burner remaining on high heat regardless of the setting
• Unusual sparking or electrical noises from the switch area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Note: For the new mounting screws, order part number 5303288565. Two are needed to properly mount the new switch.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment
