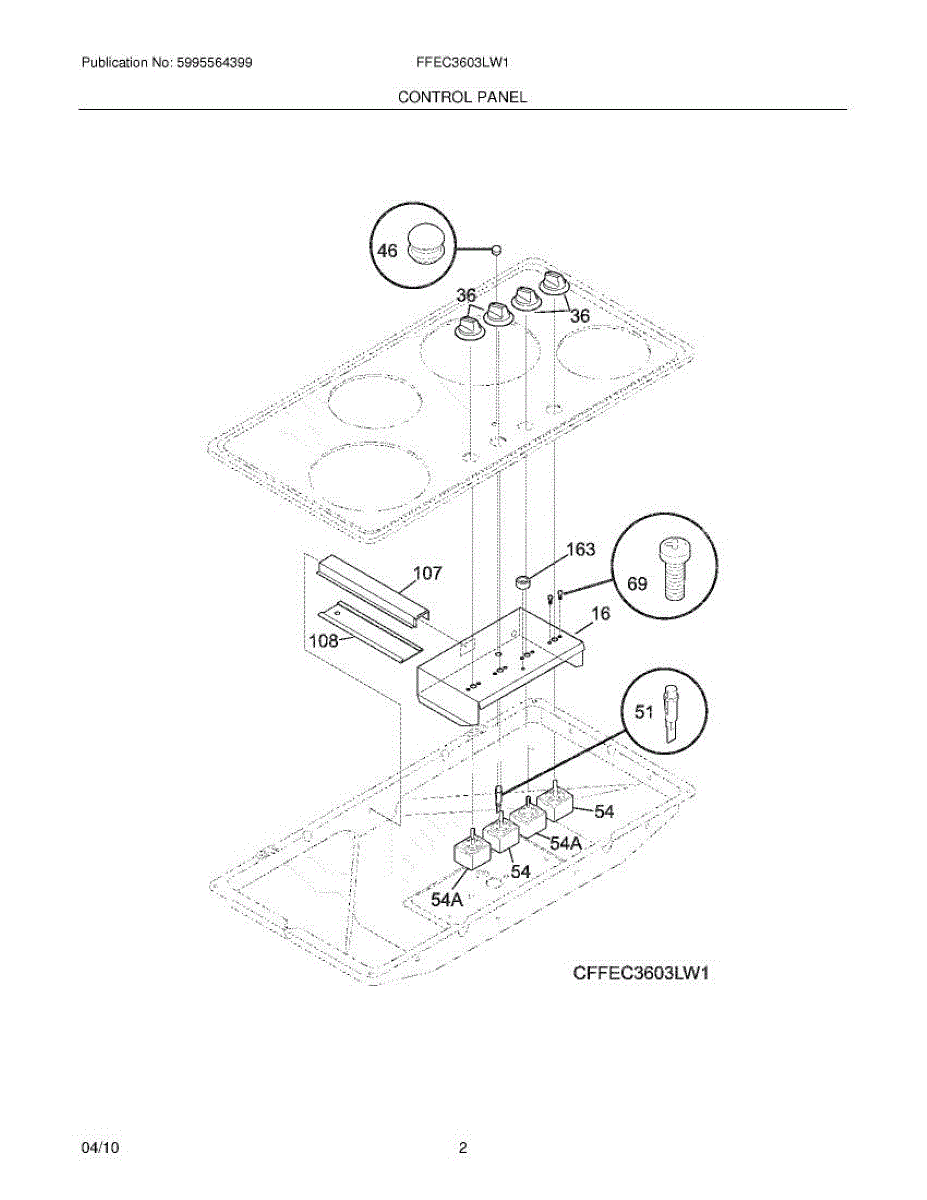

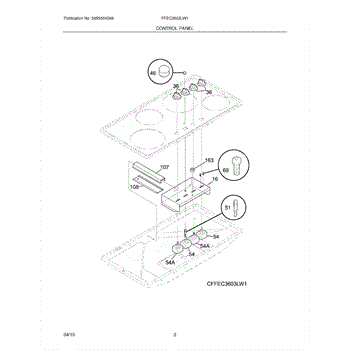

Parts for Frigidaire FFEC3603LW1: 03 - Control Panel Parts

Indicator light replaces the control-panel lamp that signals power or active functions, restoring visible status feedback for safer, more confident operation. Use this when the original lamp is dim, cracked, or fails to illuminate. What it does:

• Provides visible indication of power, cycle status, or selected functions on the appliance control panel.
• Restores clear status feedback when the original lamp is burned out or flickering.
• Helps troubleshoot whether a control or circuit is receiving power by showing when the indicator should be lit.
• Improves usability so settings and operating states are easy to confirm at a glance.

• Disconnect power to the appliance (unplug or turn off the breaker) before beginning work.
• Access may require removing the control panel or console.
• Handle the lamp carefully and avoid touching bulb surfaces; use gloves to prevent oil transfer.
• After installation, restore power and verify the indicator lights as expected; if it still does not light, further electrical diagnosis may be needed.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This switch bushing fits the control shaft to stabilize and guide rotary switches, helping restore proper knob alignment and smooth operation. It prevents wobble and uneven contact that can cause intermittent control behavior. What it does:

• Centers and supports the control shaft to keep the switch and knob aligned
• Reduces wobble and lateral play that can make knobs feel loose or inconsistent
• Helps maintain reliable electrical contact by keeping the switch properly seated
• Commonly replaced when knobs are loose, the switch wobbles, or control engagement is uneven

• One switch bushing

• Disconnect power to the appliance before starting any repair
• Requires removing the control panel or knob to access the switch shaft; small hand tools typically needed
• Inspect the switch and knob for wear while replacing the bushing; replace worn components as needed

Hex washer head ,10-32 x 0.375. Ground

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This is a replacement mounting screw used to secure appliance panels, brackets, and components. Replacing worn or missing screws restores proper fit and reduces rattles or loose parts for safe, stable operation. What it does:

• Secures panels, brackets, trim, or small components in place
• Helps eliminate rattling, vibration, and loose or misaligned parts
• Restores proper fastening after maintenance or part replacement
• Matches the appliance's original fastener style for correct fit

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage
