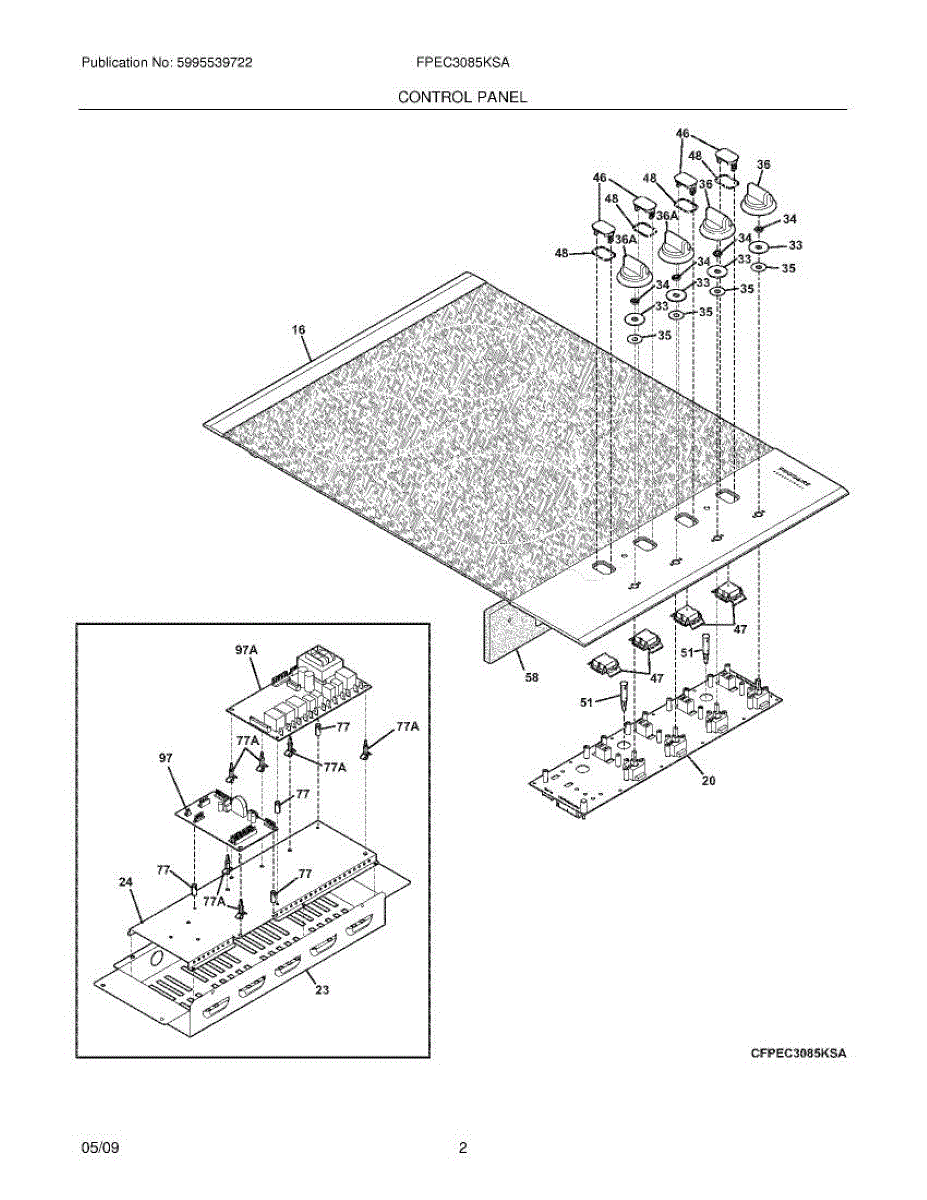

Parts for Frigidaire FPEC3085KSA: 03 - Control Panel Parts

This is a main top assembly which is an important part of any range. It is located on top of the stove and provides protection to the heat elements and other internal parts. This part is made of strong glass but can become cracked, chipped, or otherwise damaged. When this occurs, the range is not safe to use for cooking. The main top assembly will need to be replaced.If the main top assembly is damaged and needs to be replaced, first, the oven should be unplugged from the wall. This will prevent it from turning on and causing an accident or injury. Make sure the stovetop is cool to the touch when replacing the main top assembly. Basic tools will be needed and work gloves can prevent injuries from broken glass. Open the oven to access the screws that hold on the main top assembly. Lift up the top assembly and remove the attached internal parts before installing the new component.This component is sold as an individual part. The main top assembly is an authentic OEM replacement part that is directly sourced from the manufacturer. This part is made to be used with ranges, ovens, and stoves made by Frigidaire.

This control panel is the front console assembly that holds the range's user interface and protects the control electronics. It restores a clean, stable surface for buttons and displays to improve usability and appearance. What it does

• Provides the front-facing surface for the oven/range control buttons and display.
• Protects internal control electronics from spills and physical damage.
• Replaces cracked, warped, or cosmetically damaged panels that interfere with button operation.
• Helps restore proper alignment and mounting of the control assembly and fascia.

• Disconnect power to the appliance before starting any repair.
• Handle edges carefully; panel edges and retained fasteners can be sharp.
• Remove any trim or bezels per the service guide to access mounting screws or clips.
• Reconnect power and verify button responsiveness and display function after installation.

This control mounting hex nut secures the burner or oven control to the control panel, keeping the shaft stable so the knob turns smoothly and the switch stays properly aligned.

• Threads onto the control/infinite switch or thermostat bushing to fasten it to the panel
• Prevents the control from rotating or shifting when the knob is turned
• Replace if the original nut is missing, stripped, rounded, or corroded
• Common signs: loose or wobbly knob, switch spins in the panel, or misaligned knob indexing

• Disconnect power; for gas appliances, also shut off gas before servicing
• Pull off the knob and any trim; support the control body from behind the panel while removing/installing the nut
• Start the new nut by hand to avoid cross-threading; tighten snugly with the correct-size wrench—do not overtighten
• The control sits square in the panel and the knob operates smoothly before restoring power

This interior light assembly restores illumination inside the refrigerator so you can see contents clearly and safely access food. It fits the factory light location and replaces damaged or non-working lamp components. What it does:

• Houses and secures the refrigerator interior lamp so it stays lit and positioned correctly
• Provides the electrical connection for the bulb so the light turns on when door opens
• Restores visibility if the original lamp assembly is cracked, loose, or fails to light
• Helps prevent food spoilage-related accidents by improving interior visibility

• Disconnect power to the refrigerator before replacing the light assembly to avoid shock
• Remove the lens/cover and replace the assembly per manufacturer instructions
• Handle bulbs with care; use recommended bulb type and wattage specified by the appliance maker

This electronic oven control board manages the bake/broil circuits and the clock/timer display. Replacing a failed board restores accurate temperature control and responsive keypad/display operation so your range can heat and time reliably again. What it does:

• Regulates power to the bake and broil elements based on temperature sensor feedback
• Interprets keypad inputs and drives the digital clock/timer display and alerts
• Controls oven relays for preheat, maintain-temp, and timed-cook functions
• Common failure symptoms include: no heat or intermittent heating, blank or unresponsive display, beeping/error indications, or oven that won't shut off

• 1 electronic control board

• Disconnect power at the breaker before servicing; verify no voltage is present
• Handle the board by the edges and use ESD protection to avoid static damage
• Note/photograph wire locations; transfer any mounting hardware or overlay from the original as applicable
• After installation, restore power, set the clock, and test all oven modes

Specs: 10-32 X 0.375

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
