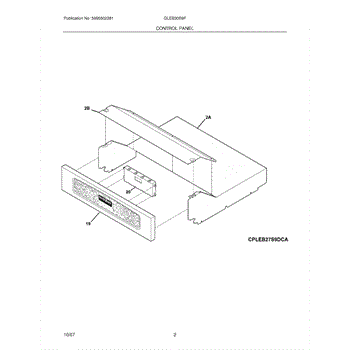

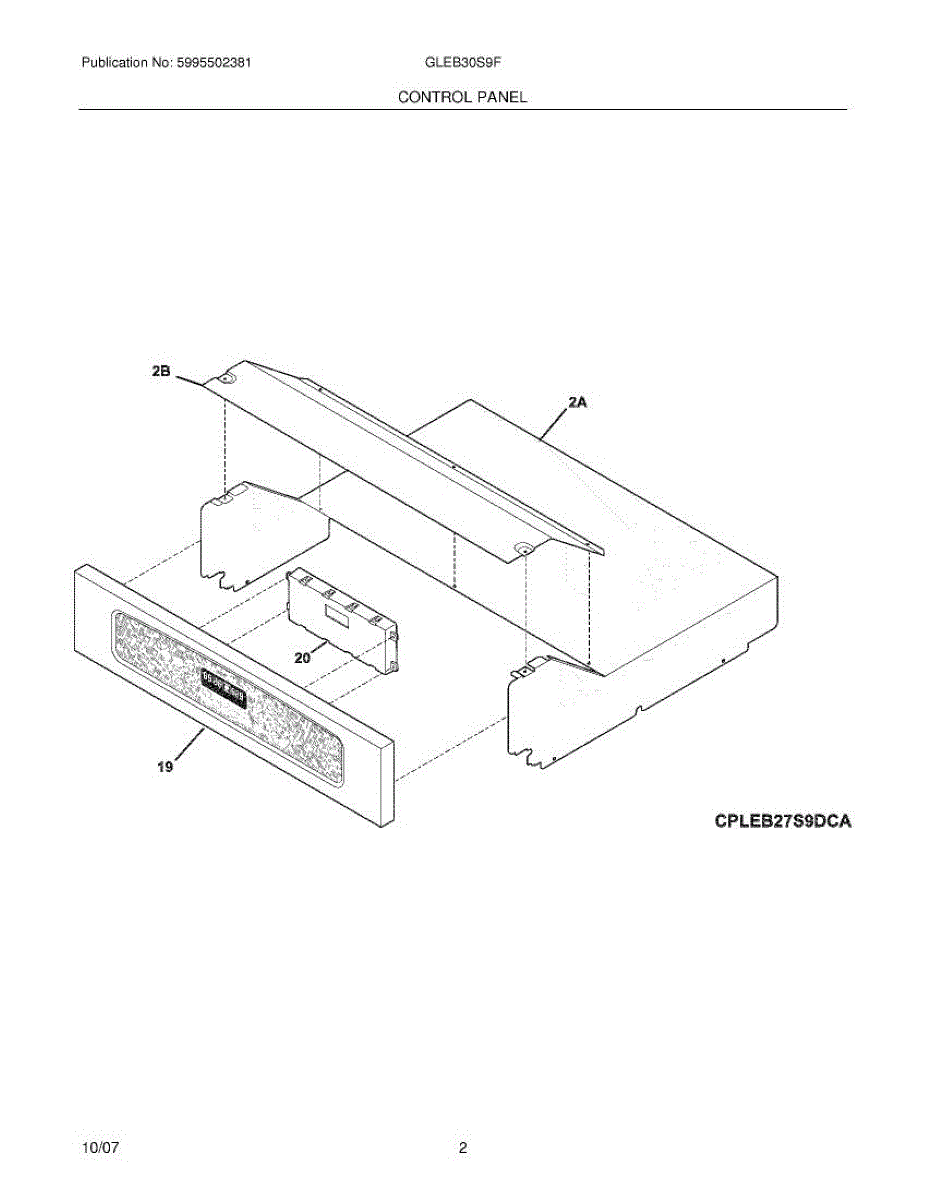

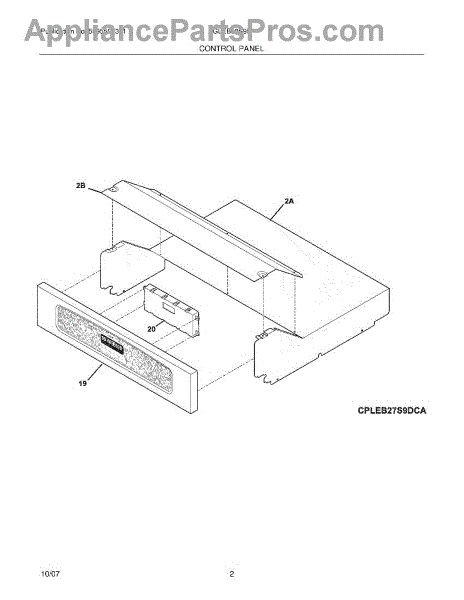

Parts for Frigidaire GLEB30S9FQC: 03 - Control Panel Parts

This control panel assembly replaces the front console that houses the oven/range display, buttons and user controls so you can restore responsive operation and readable status feedback. It provides a ready-to-install user interface to operate appliance functions. What it does:

• Houses display, touchpads/buttons and indicator lights for oven/range control.
• Relays user commands to the main control board so settings register correctly.
• Restores visible status and error readouts when a damaged panel prevents normal feedback.
• Commonly used when buttons are unresponsive, the display is blank or control inputs fail.

• Disconnect power at the breaker before starting; follow lockout/tagout best practices.
• Handle the display and ribbon connectors carefully; avoid sharp bends or pinching.
• Remove mounting screws and access panels per your model's service instructions to swap the assembly.

This electronic control board regulates oven functions and the display, interpreting keypad inputs and controlling the bake and broil elements. Replacing a failed board restores responsive controls, accurate heating, and a readable clock/timer.

• Controls bake and broil element power using temperature sensor feedback
• Manages oven modes, timers, and the display/clock
• Interfaces with the keypad membrane to read user selections
• Failure symptoms can include no heat, oven won't start, erratic temperatures, or a dead/flickering display

• Disconnect power at the breaker before servicing to avoid electrical shock
• Handle the board by the edges; use ESD protection to prevent static damage
• Photograph wiring and transfer connectors one at a time to the new board
• Reuse existing mounting hardware and front overlay if applicable; correct orientation before securing

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
