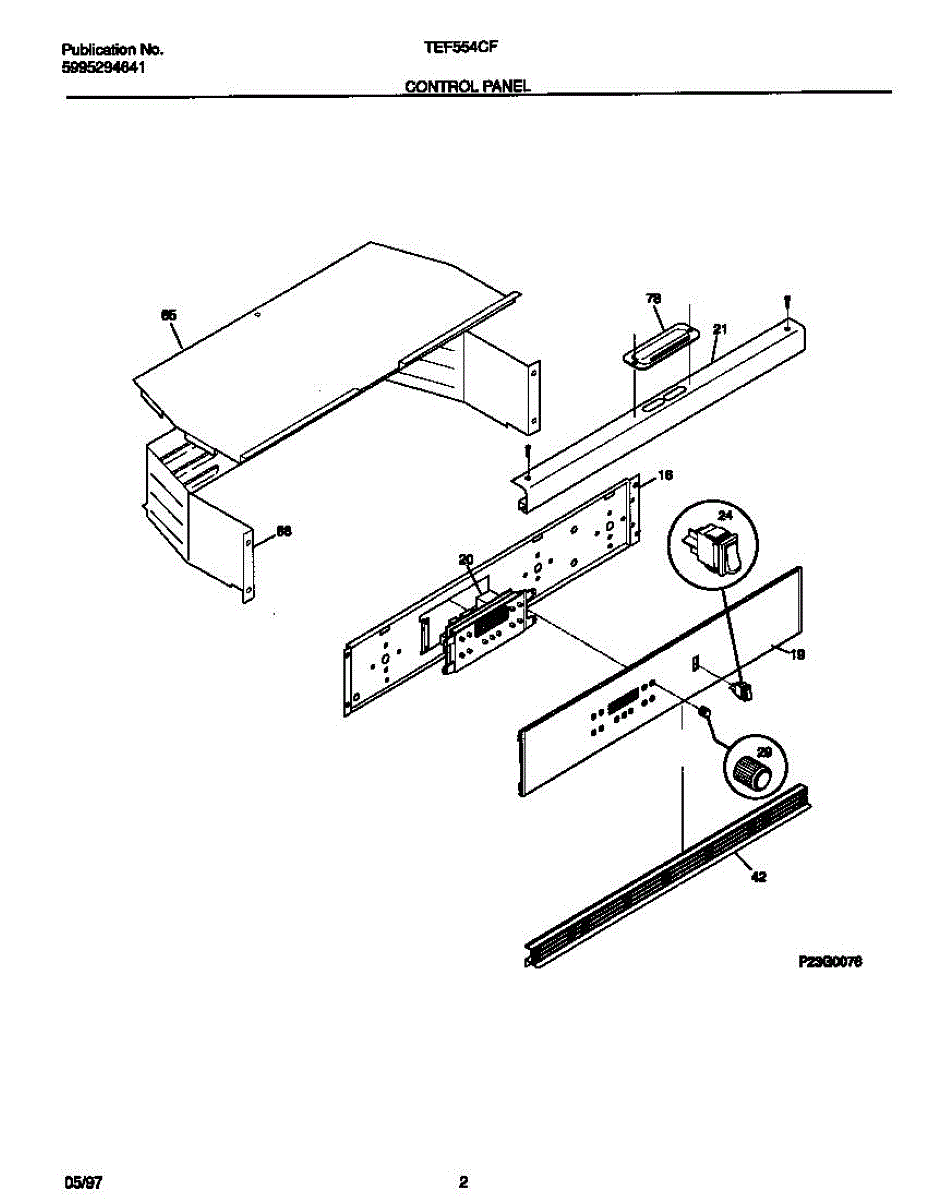

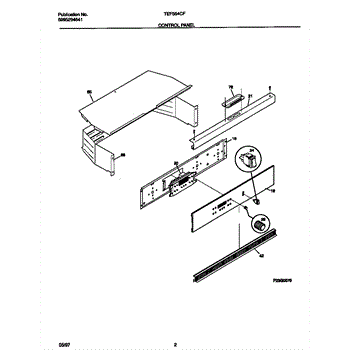

Parts for Frigidaire TEB554CFBA: 02 - Control Panel Parts

This instrument mounting plate secures the range/oven control panel and provides a stable mounting surface for switch and display components, helping keep controls aligned and functioning correctly. What it does:

• Supports and secures the control/instrument panel to the appliance chassis
• Holds switches, timers, and displays in the correct position for reliable operation
• Prevents panel flexing, rattling, or misalignment that can affect control engagement
• Helps maintain proper spacing and alignment for electrical connectors

• Disconnect power to the appliance before starting any repair to avoid shock hazard
• Removing the control console or backguard may be required; keep track of screws and trim
• Reuse existing mounting hardware when possible; replace any damaged fasteners separately

Metal mounting bracket for oven light switch assembly. Secures switch in proper position behind control panel. Replace if bent, broken, or missing.

The range timer knob shaft is the rotating rod that connects the timer control knob to the internal timer mechanism behind the control panel. Replace when the timer knob spins freely without engaging, feels loose, or the timer won't advance properly.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Cork and rubber spacer for ovens and ranges. Provides cushioning and spacing between components. Replace if worn, cracked, compressed, or missing.

This part has been discontinued by the manufacturer and is no longer available.

Cushioned fastener washer that protects surfaces and reduces vibration. Replace if cracked, compressed, or missing to prevent metal damage and loosening.

Mounting screw for ranges, ovens, and cooktops. Secures panels, brackets, or internal components. Replace if missing, stripped, or damaged.

Hex washer head ,10-32 x 0.375. Ground

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Cork and rubber spacer for ovens and ranges. Provides cushioning and spacing between components. Replace if worn, cracked, compressed, or missing.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Adhesive seal tape restores tight door seals on ovens, reducing air leaks and improving temperature control. Replace when worn or damaged. Confirm fit.
