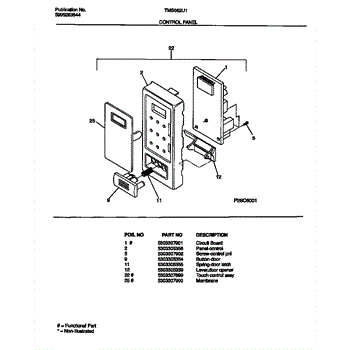

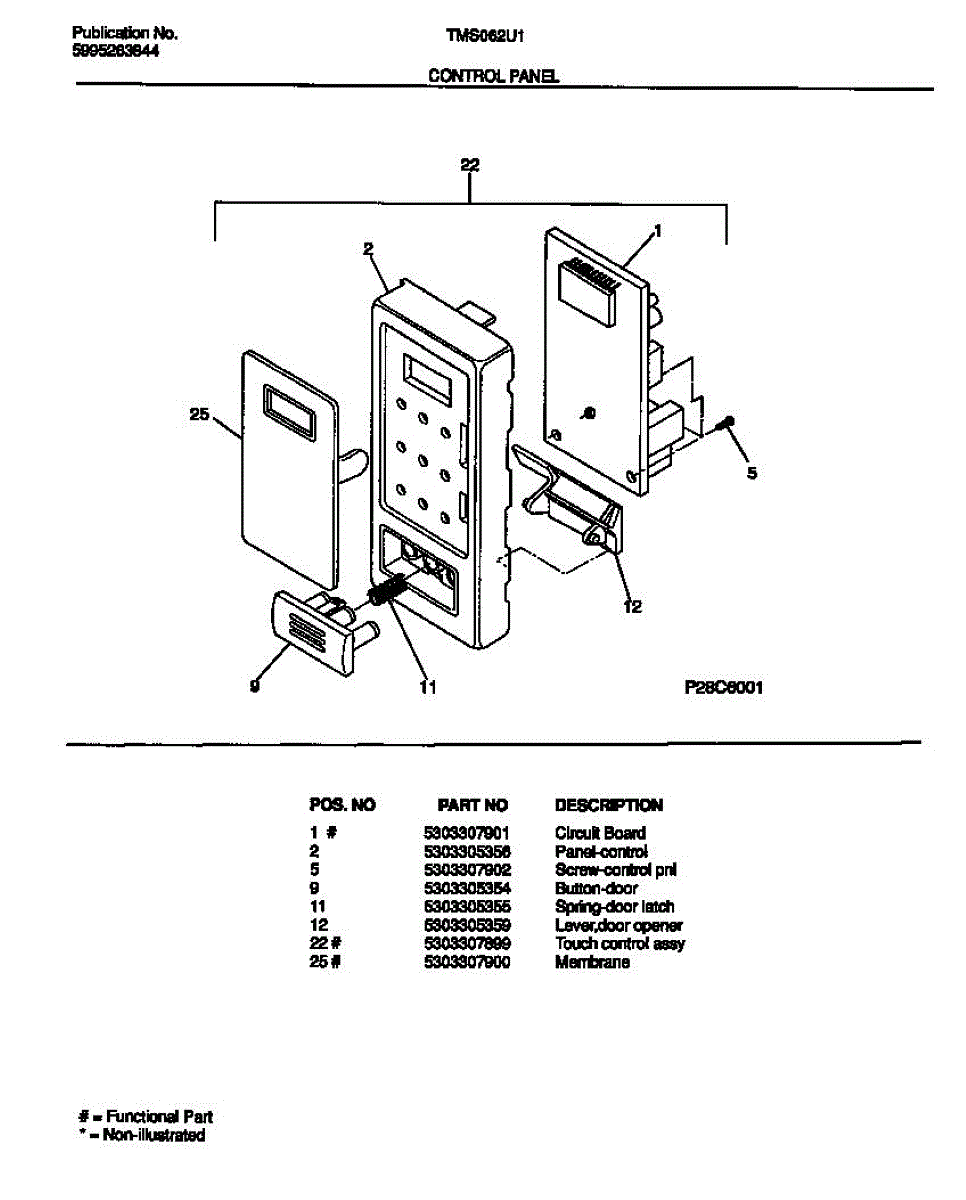

Parts for Frigidaire TMS062U1S0: 02 - Control Panel Parts

This electronic control board manages the appliance's user inputs and internal commands to run cycles and features reliably. Replacing a failed board restores normal control functions and display responsiveness. What it does:

• Interprets button presses and sends signals to motors, valves and heaters to start or stop cycles
• Controls timing, cycle selection and display functions for consistent operation
• Stops or fails to respond when the board is damaged, intermittently powers on/off, or shows error codes
• Prevents improper operation caused by corrupted or damaged control circuitry

• Disconnect power before servicing to avoid shock — this part requires electrical safety precautions
• Handle the board by its edges and avoid touching components or connector pins
• Verify connectors and wiring harness seating before reassembly; replace any damaged harnesses separately
