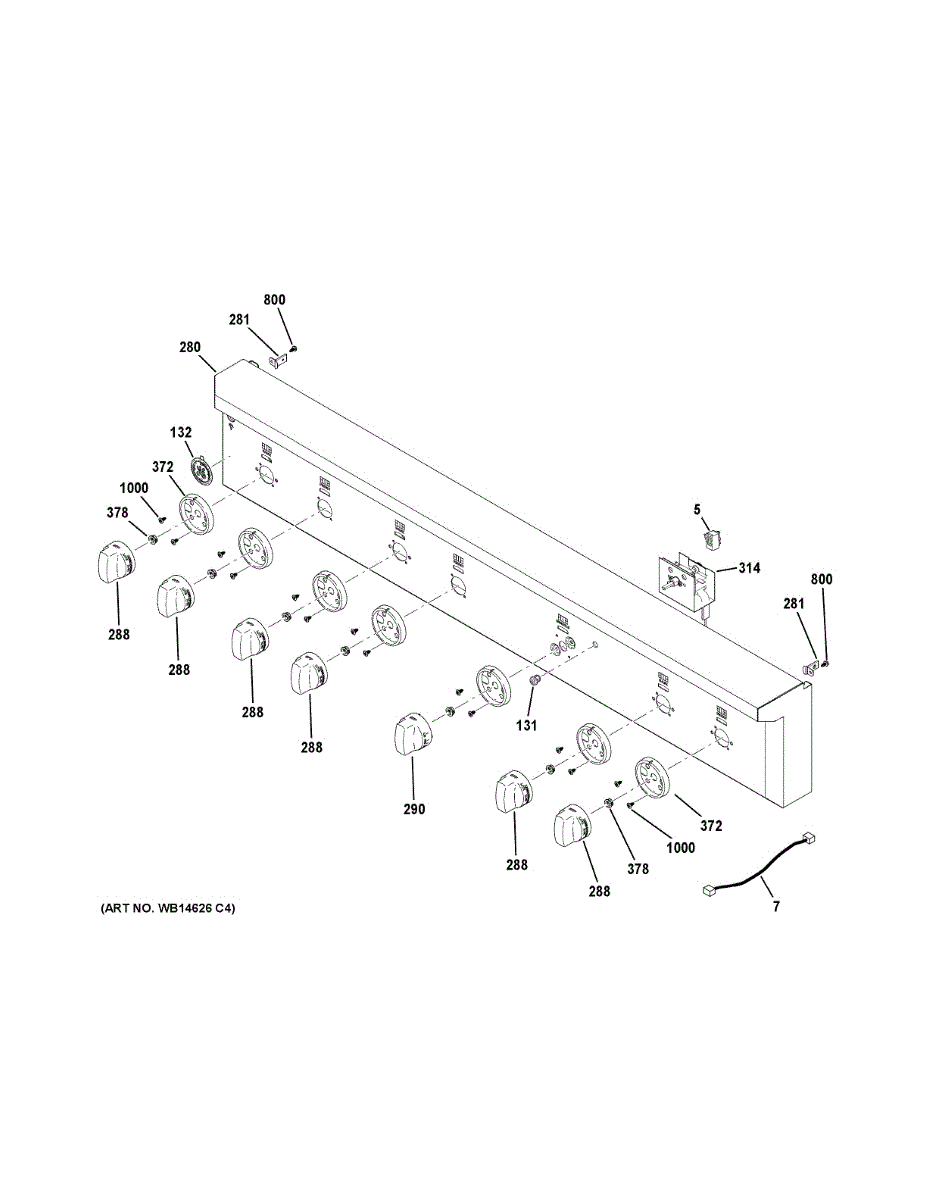

Parts for Ge CGU486SDL1SS: Control Panel Parts

This wiring harness provides the factory-style electrical connections between the appliance control and its components, restoring reliable signal and power routing for proper operation. What it does:

• Routes power and control signals between the main control and connected components
• Replaces damaged, frayed, or corroded wiring that can cause intermittent operation
• Helps stop symptoms like components not powering on, intermittent cycles, or blown fuses
• Restores secure connector mating to reduce arcing and poor contacts

• One factory-style wiring harness with attached connectors as shown

• Disconnect all power (unplug or shut off breaker) before starting work
• Compare the part to the original to confirm connector types and wire lengths before installing
• Route and secure the harness following the appliance's wiring channels; avoid contact with sharp edges or moving parts

Control panel mounting bracket for gas ranges and cooktops. Secures the control panel assembly to the frame. Replace if bent, cracked, or broken.

Bezel bushing for gas ranges and cooktops. Installs on the control panel bezel to provide support and spacing. Replace if cracked, broken, or missing.

Mounting screw hardware for ranges and cooktops. Replace missing, stripped, or corroded screws used to secure panels, brackets, or components.

Stainless steel #8-18 x 3/8" screw secures panels, brackets, and components in ranges, cooktops, and ovens. Replace if stripped, missing, or corroded.
