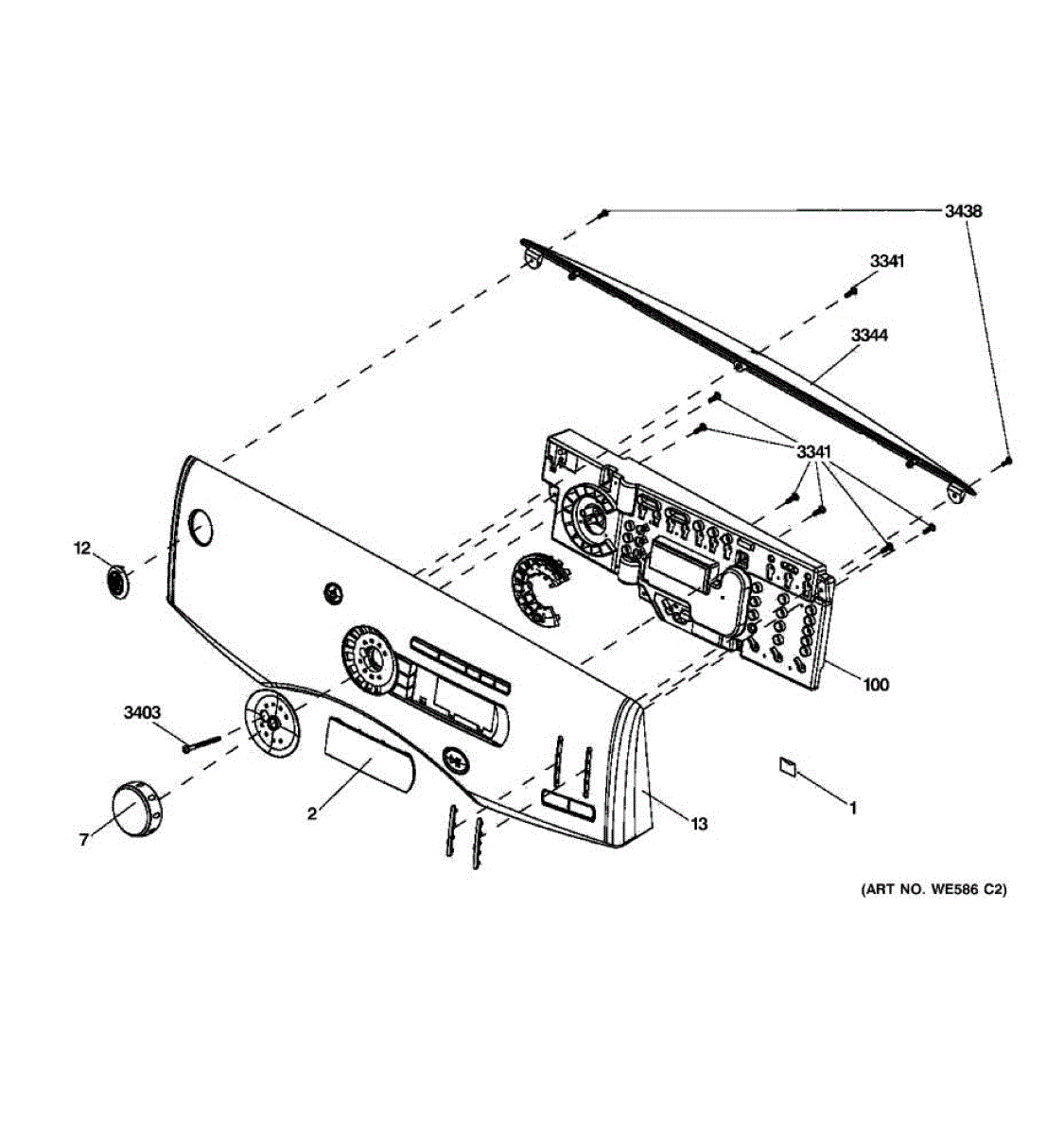

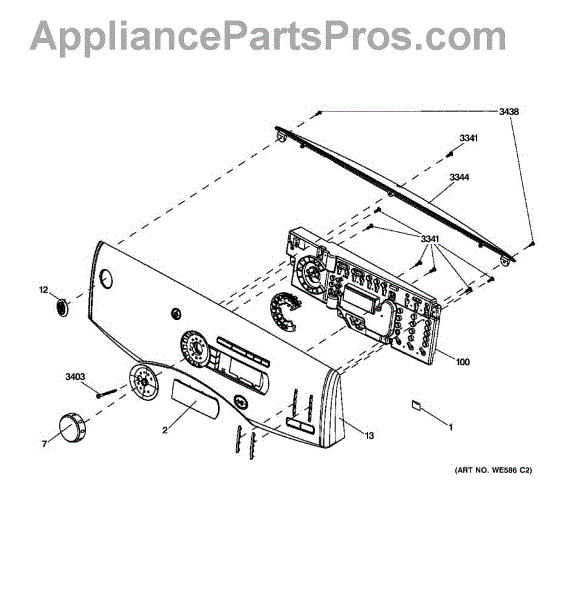

Parts for Ge GFDS350GL1WW: 01 - Control Panel Parts

Replace your dryer's display window lens if it's cracked, scratched, or missing. This clear protective cover installs over the control panel display.

This control panel assembly replaces the white front console on your dryer. It restores a solid mounting surface for the timer, switches, or display so you can select cycles and settings with proper alignment and smooth operation. What it does

• Provides the front console housing for the dryer's user controls
• Keeps buttons/knobs and indicators aligned and protected
• Restores appearance after cracks, discoloration, or broken tabs
• Helpful when controls feel loose, are hard to press, or the console is rattling

• 1 white control panel assembly

• Disconnect power; if gas, shut off the gas supply before servicing
• Remove control knobs and any end caps; take out mounting screws/clips and lift off the old panel
• Transfer any brackets, light pipes, clips, and harness retainers from the old panel to the new as needed
• Reinstall and tighten fasteners; refit knobs and verify smooth control operation before restoring power

This genuine replacement part is a user interface board for dryers. The user interface board is the circuit board that responds to the buttons located on the control panel allowing the user to adjust the dryer settings. If the dryer is no longer responding when buttons are being pressed then it might be time to replace the user interface board. Luckily this is a relatively easy repair.To replace the interface board begin by turning off the power to the dryer. Once the power has been shut off move the dryer away from the wall to gain access to the upper back panel. Remove the panel and locate the interface board. Snap it out of its brackets and remove the wire harness attached to the board. Reinsert the wire connector to the new interface and snap the new board assembly back to its original place.This OEM replacement part is sold individually and is compatible with General Electric, Hotpoint, and RCA brand Dryers.

Replacement mounting screw for dryer front panel assembly. Secures front panel to cabinet. Needed when original screw is stripped, missing, or lost.

Replacement center screw that secures the control knob to the shaft on your dryer. Needed when the original screw is stripped, missing, or loose.

This silicon controlled rectifier (SCR) is an electronic switching device used in appliance control circuitry to regulate power to motors or heating circuits. Replacing a faulty SCR restores reliable power control and helps resolve intermittent or failed operation. What it does:

• Controls and modulates electrical current in control boards and power circuits
• Allows timed or variable power delivery to heating elements or motors in appliances
• Helps stop intermittent operation caused by a failed switching device
• Commonly replaced when an appliance experiences no heat, no motor run, or erratic performance

• Disconnect power to the appliance before servicing to avoid electric shock
• Handle with ESD precautions; avoid touching terminals and static-sensitive areas
• Install the replacement SCR with the same orientation and secure mounting as the original
