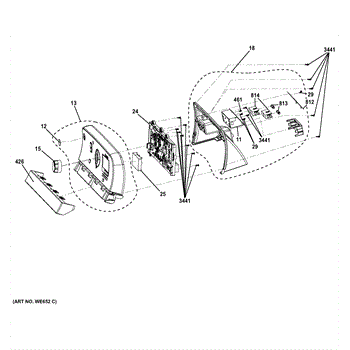

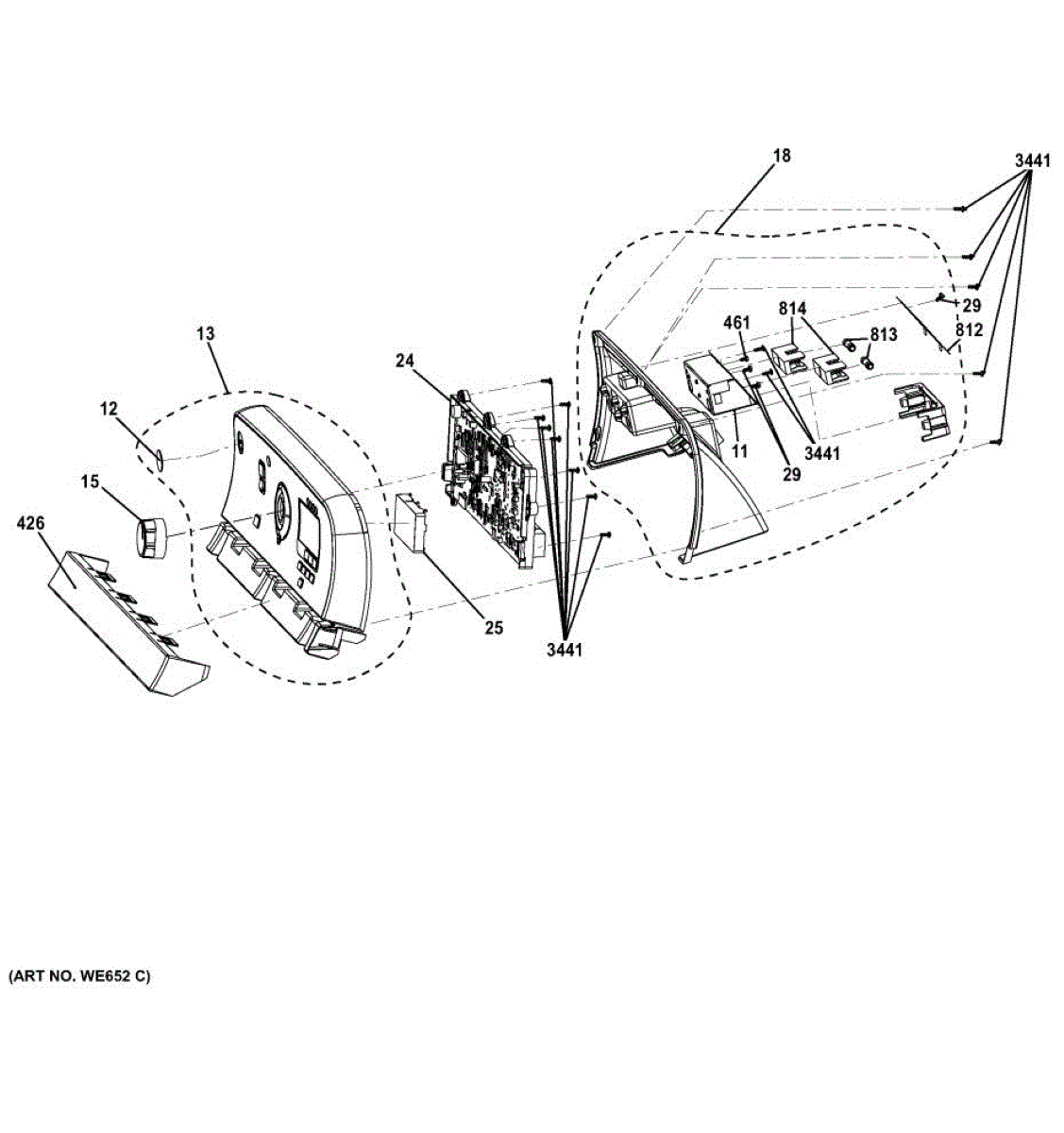

Parts for Ge GTDS820ED0WS: 01 - Control Panel Parts

The Platform & Board Assembly is an OEM part for GE dryers. As a complete sub-assembly, it includes both the platform that holds dryer components and the circuit board that directs operations.

Working together harmoniously, the platform provides stable support while the circuit board regulates cycles and electrical distribution. This integrated unit forms the operational foundation inside the dryer cabinet.

Symptoms of a faulty platform and board assembly include:

• Vibration or movement noises from the platform during use
• The circuit board failing to power components or run intended cycles
• Electrical shortages or inconsistencies impacting performance

Causes can be normal wear over prolonged heavy usage. More rarely, water intrusion or physical damage may prematurely affect functioning.

This genuine OEM assembly directly replaces the existing unit to restore smooth, dependable dryer operations. Compatible with some Hotpoint, RCA, and Kenmore dryers as well.

Size: 8-32 t. Includes 12 screws.

This CCMR 30-amp, 120-volt fuse protects the appliance's electrical circuit by opening when current exceeds safe limits. Replace a blown fuse to restore power to the affected circuit and help prevent damage to internal components.

• Provides overcurrent protection for the circuit specified by the manufacturer
• If the fuse is open, the appliance may be dead, won't start, or certain functions won't operate
• Helps prevent wiring and component damage from shorts or overloads
• Repeated fuse failures indicate an underlying electrical issue requiring diagnosis

• Disconnect power to the appliance before servicing
• Locate the fuse in its holder/block and inspect associated wiring for heat or damage
• Test the old fuse for continuity; replace only with the identical rating specified
• Never bypass or upsize a fuse; correct the root cause of the failure before returning to service

This fuse holder secures the appliance's thermal/fuse element and provides a stable connection point for the fuse, helping maintain proper circuit protection and reliable operation. What it does:

• Holds and secures the fuse or thermal cutoff in the appliance circuit
• Provides stable electrical contact to ensure reliable current flow
• Helps prevent intermittent power from a loose or damaged fuse connection
• Commonly replaced when the fuse or its mount is cracked, melted, or otherwise damaged

• Disconnect power to the appliance before inspecting or replacing the fuse holder
• Replace only with the correct part number for your appliance; verify fit before installation
• Use basic hand tools; avoid forcing terminals to prevent damage
