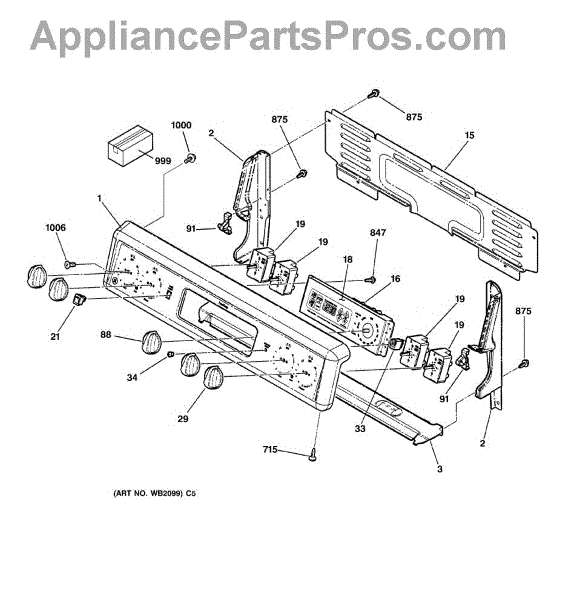

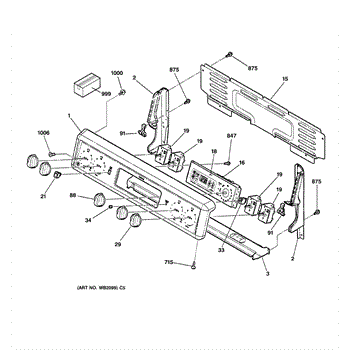

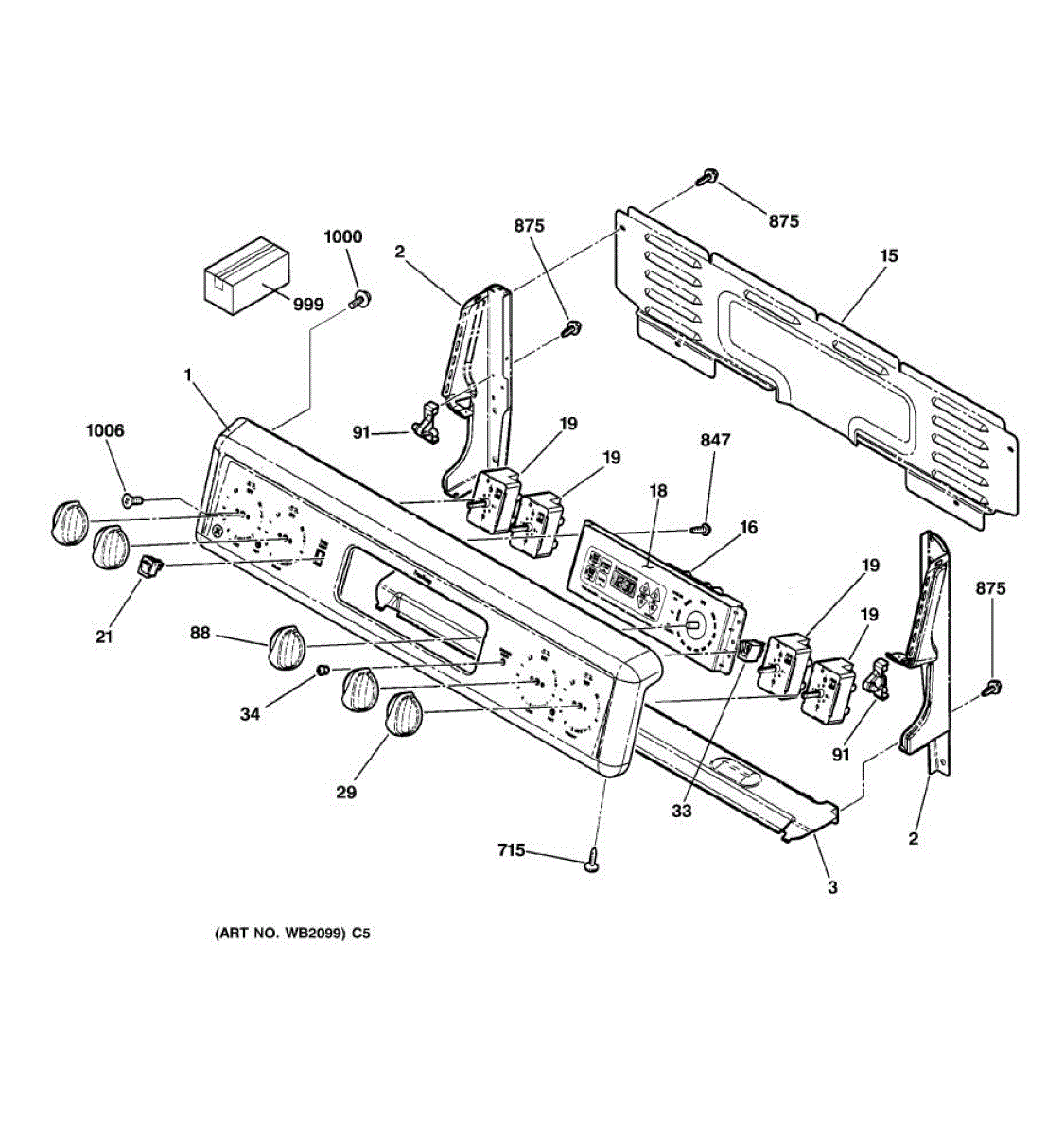

Parts for Ge JBP30WB2WW: 01 - Control Panel Parts

White. Right hand side

White. Left hand side

Heat shield that installs between the cooktop and control panel on your range. Replace if cracked, warped, or missing to protect components from heat damage.

This electronic control (TO8) manages the appliance's settings, display, and power switching to key components. Replacing a failed control restores responsive controls and consistent operation of cooking functions.

• Processes user inputs and commands the appliance's functions
• Drives and updates the display/indicators
• Switches power to components and relays as required
• Symptoms of failure: dead/blank display or unresponsive controls
• May also cause elements not turning on/off properly or recurring error codes

• Disconnect power at the breaker before servicing
• Handle the control by its edges and use ESD protection
• Note/photograph wire positions; move connectors one at a time to the new control
• Secure the control, reassemble, restore power, and test operation

White

Burner won't adjust temperature or stuck on high? This surface burner control switch restores heat control. Quick 10-minute fix with basic tools.

Burner stuck on high or won't heat? This 8-inch infinite switch controls heat output on electric ranges. Simple 20-30 minute DIY replacement.

This is a white rocker switch used on the control panel of a range or oven. It functions as an on/off toggle for a specific burner or oven feature. Replace this switch if it no longer clicks into position, feels loose, or fails to activate the corresponding element when toggled.

White.

Replace your range pilot indicator light when it stays on, flickers, or won't illuminate. Signals when cooktop elements are hot for safety. Verify fit by model.

White. For bisque use WB03T10128. For black use WB03T10071.

Replacement maintop hinge for your range. Secures and supports the cooktop maintop panel. Order a new hinge if yours is broken, cracked, or worn.

White. 8-18 x 5/16 inch.

Nickel

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.
