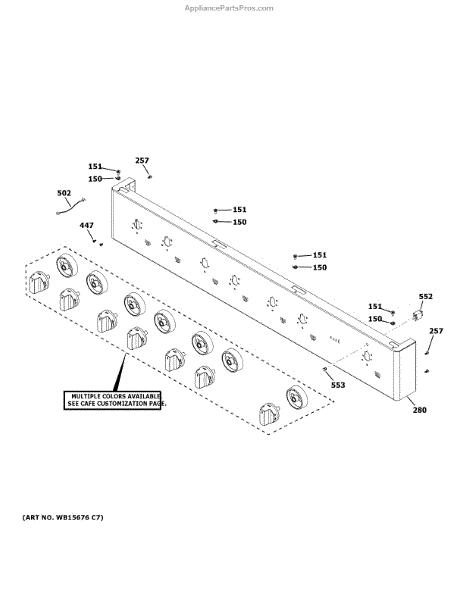

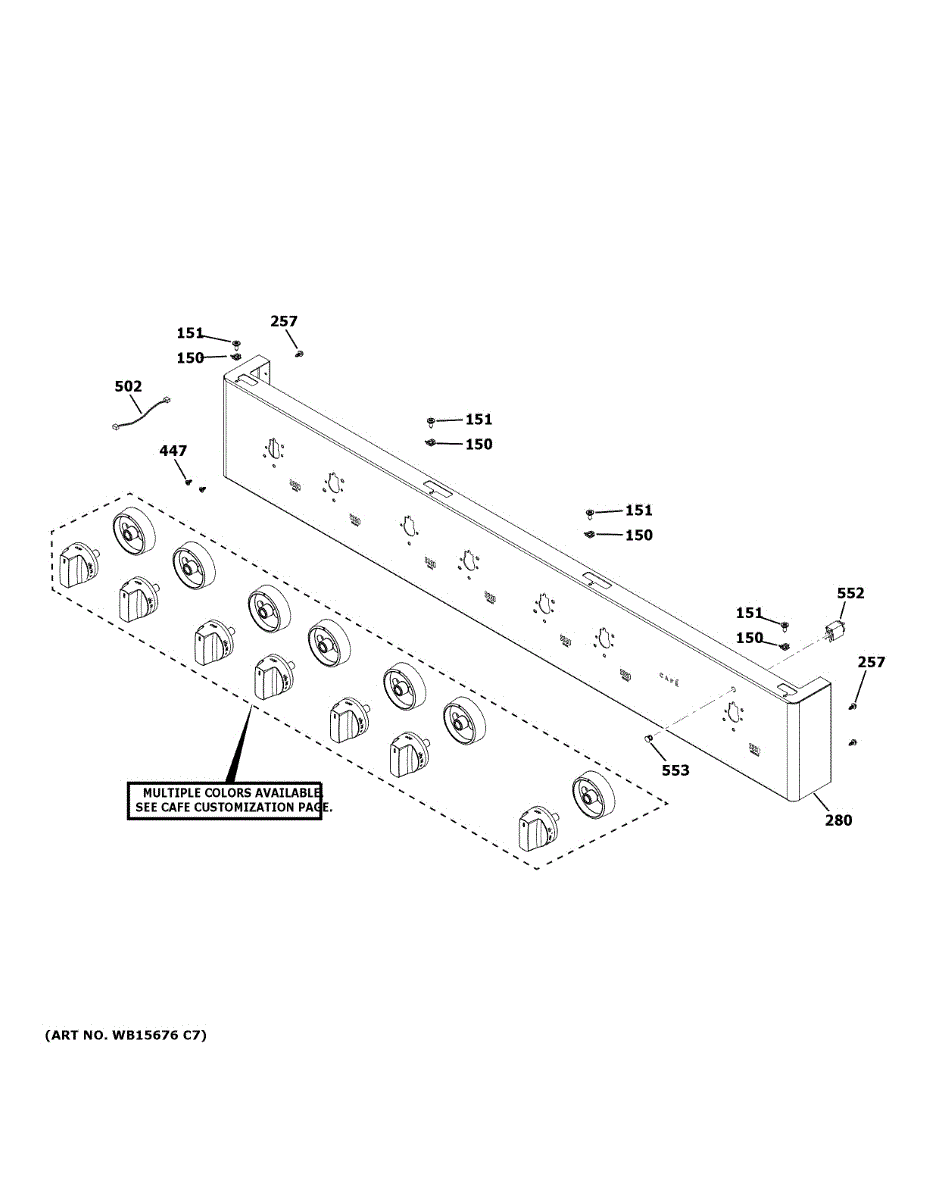

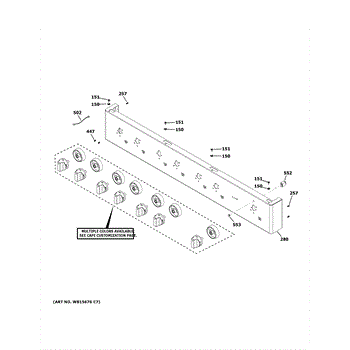

Parts for Ge CGU486P3T2D1: Control Panel Parts

This is a stainless-steel machine screw used to secure components in appliances. Its #8-18 thread and 3/8" length provide a reliable, corrosion-resistant fastening where a short machine screw is required. What it does:

• Fastens panels, brackets, or small assemblies with a #8-18 threaded hole
• Resists rust and corrosion in humid appliance compartments
• Provides a short, secure hold where space is limited
• Compatible with standard #2 Phillips or compatible driver bit for installation

• Power off and unplug the appliance before servicing
• Use the correct driver to avoid stripping the head
• Do not overtighten; stop when snug to avoid thread or component damage
• If replacing multiple fasteners, reuse only the same size and type

This wiring harness provides the factory-style electrical connections between the appliance control and its components, restoring reliable signal and power routing for proper operation. What it does:

• Routes power and control signals between the main control and connected components
• Replaces damaged, frayed, or corroded wiring that can cause intermittent operation
• Helps stop symptoms like components not powering on, intermittent cycles, or blown fuses
• Restores secure connector mating to reduce arcing and poor contacts

• One factory-style wiring harness with attached connectors as shown

• Disconnect all power (unplug or shut off breaker) before starting work
• Compare the part to the original to confirm connector types and wire lengths before installing
• Route and secure the harness following the appliance's wiring channels; avoid contact with sharp edges or moving parts

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination
