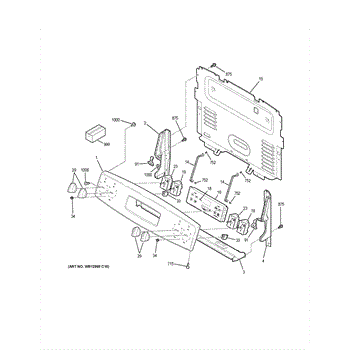

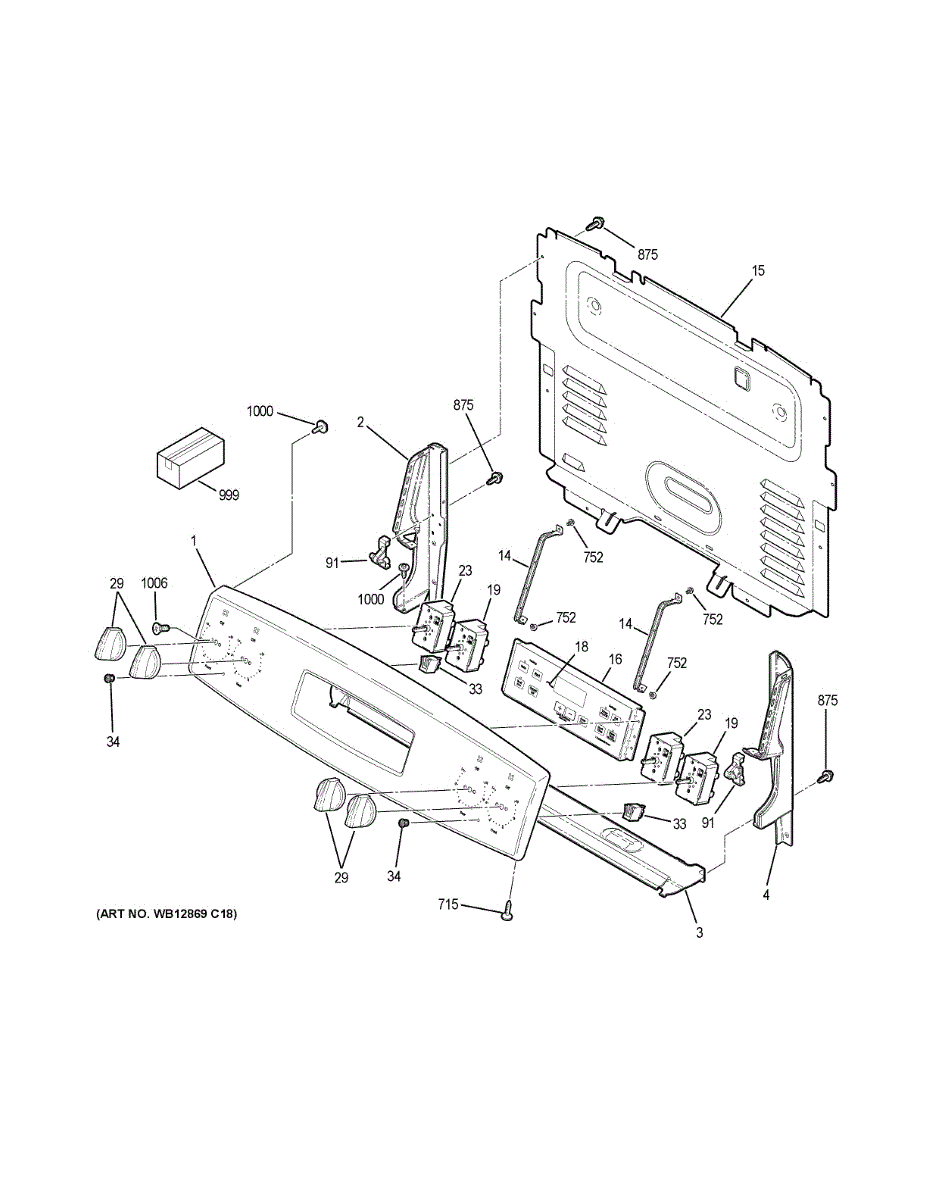

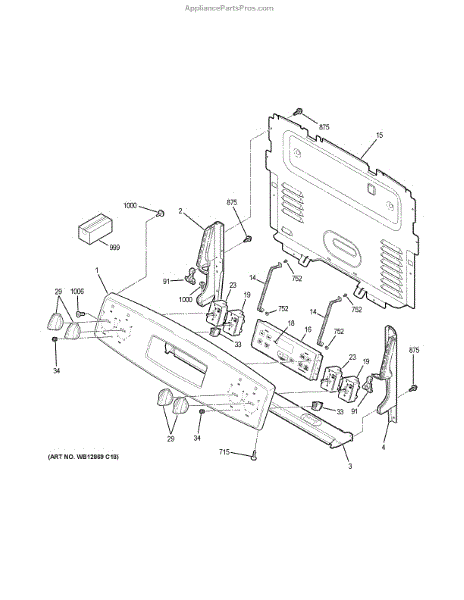

Parts for Ge JB258DM1WW: Control Panel Parts

This trim and bracket assembly secures and finishes the appliance control or access panel, restoring a clean, stable edge and proper panel alignment. Designed as a direct replacement to repair broken, cracked, or loose trim. What it does

• Replaces damaged or missing trim and its mounting bracket to restore panel support and appearance
• Secures the control or access panel to prevent rubbing, vibration, or misalignment
• Stops visible gaps and keeps internal components protected from debris
• Helps reduce rattling or noise caused by a loose panel

• Disconnect power to the appliance before attempting any repair
• Remove affected panel fasteners and lift out the old trim/bracket assembly; keep hardware if reusable
• Align new assembly, snap or seat into place, then reinstall screws/fasteners without over-tightening

This control bracket secures the appliance control assembly to the cabinet, keeping the control panel stable for reliable operation and preventing movement that can cause loose connections or noise. It's a direct-fit mounting part used where the control needs support. What it does

• Secures the control or control board to the appliance cabinet or console
• Keeps the control panel aligned and prevents vibrations or rattling
• Helps maintain reliable electrical connections by preventing movement
• Can resolve symptoms like a loose or shifting control panel, unusual noise near the control area, or intermittent contact caused by a displaced control

• One control bracket (mounting bracket), as shown

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Basic hand tools (screwdriver, nut driver) are typically required; retain original fasteners unless replacements are specified
• Verify the part number matches the original part before installation

This control panel back cover protects and supports the range/oven console electronics and wiring, keeping the control area secure and stable for safe operation and service access. What it does

• Covers and shields the control board and wiring from heat, grease and accidental contact
• Provides a mounting surface for switches, buttons and display components
• Helps prevent loose or exposed wiring that can cause intermittent control issues
• Used when the original back cover is cracked, warped, melted or otherwise damaged

• Disconnect power at the breaker or unplug the appliance before starting
• Remove the console or control panel assembly to access the back cover
• Use appropriate hand tools; keep and reuse original screws/clips when possible
• Inspect surrounding components for damage while replacing the cover

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This faceplate graphics is the white overlay for the control panel that displays the printed labels and icons. Replace a worn or peeling overlay to restore clear, readable markings and a clean, like-new appearance on the control area. What it does:

• Provides the printed labels/icons for the control panel controls
• Restores legibility when markings are faded, scratched, or damaged
• Refreshes the control area's appearance to match the appliance finish
• Common symptoms: peeling, bubbling, cracking, missing sections, or hard-to-read labels

• 1 faceplate graphics overlay in white

• Disconnect power at the breaker before servicing
• Remove knobs, trim, or the control panel cover as required by your model
• Carefully remove the old overlay and clean/dry the mounting surface
• Align the new overlay and apply smoothly to avoid wrinkles or bubbles

The Infinite Switch (8") is an OEM replacement part for GE stovetops. It is responsible for controlling the heat output of the burner. The switch allows you to adjust the heat level by turning the knob, regulating the amount of power supplied to the burner. A bad infinite switch can be caused by regular wear and tear, electrical issues, or overheating. It can also become damaged if exposed to moisture.

Symptoms of a bad infinite switch include:

• The burner not heating up
• The burner staying on at the highest heat setting
• The burner not turning off or not responding
• Visible signs of damage

Causes of a bad infinite switch can include normal wear and tear over time, exposure to excessive heat or moisture, or electrical malfunctions.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Surface Element Switch is an OEM part for GE ranges and cooktops. It controls the heating of the surface elements by regulating the power level supplied to them. This switch allows you to adjust the heat intensity for precise cooking, ensuring that each dish is cooked to perfection.

Causes of a bad surface element switch can include electrical faults such as short circuits, wear and tear from frequent use, or mechanical failure within the switch mechanism.

Symptoms of a bad Surface Element Switch include:

• Burners not heating up or heating unevenly
• Burners remaining at a fixed temperature regardless of the setting
• The inability to control the heat level of the burner
• Sparking or electrical arcing from the switch area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Knob is an OEM part for GE ranges. This knob is used to control the heat settings on the range’s burners, allowing for precise temperature adjustments during cooking.

Causes of a bad infinite knob can include wear and tear from regular use, accidental damage from impacts, or internal component failure that affects the knob’s ability to turn or properly control the burner.

Symptoms of a bad infinite knob include:

• Difficulty turning the knob
• Burners not responding to temperature adjustments
• Knob feeling loose or wobbly
• Cracks or visible damage on the knob

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

The Indicator Light Lens is an OEM component specifically designed for GE ranges. This clear plastic lens surrounds the internal cooktop indicator lights to protect the bulbs.

Causes of a damaged lens can include normal wear from regular usage as well as accidental bumps or spills on the control panel surface.

Symptoms include:

• Cracks, scratches or clouding appearing on the lens material
• The lens detaching from its mounting points
• Obscured visibility of indicator lights below

This genuine GE lens is compatible with Hotpoint, RCA, and Kenmore models too.

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Black. 8-18 AB HXW 3/8

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
