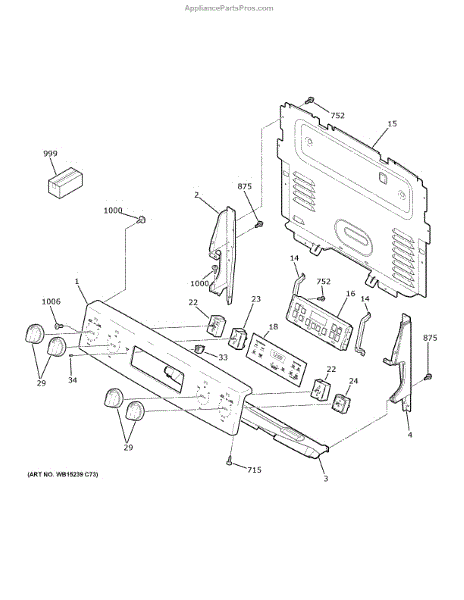

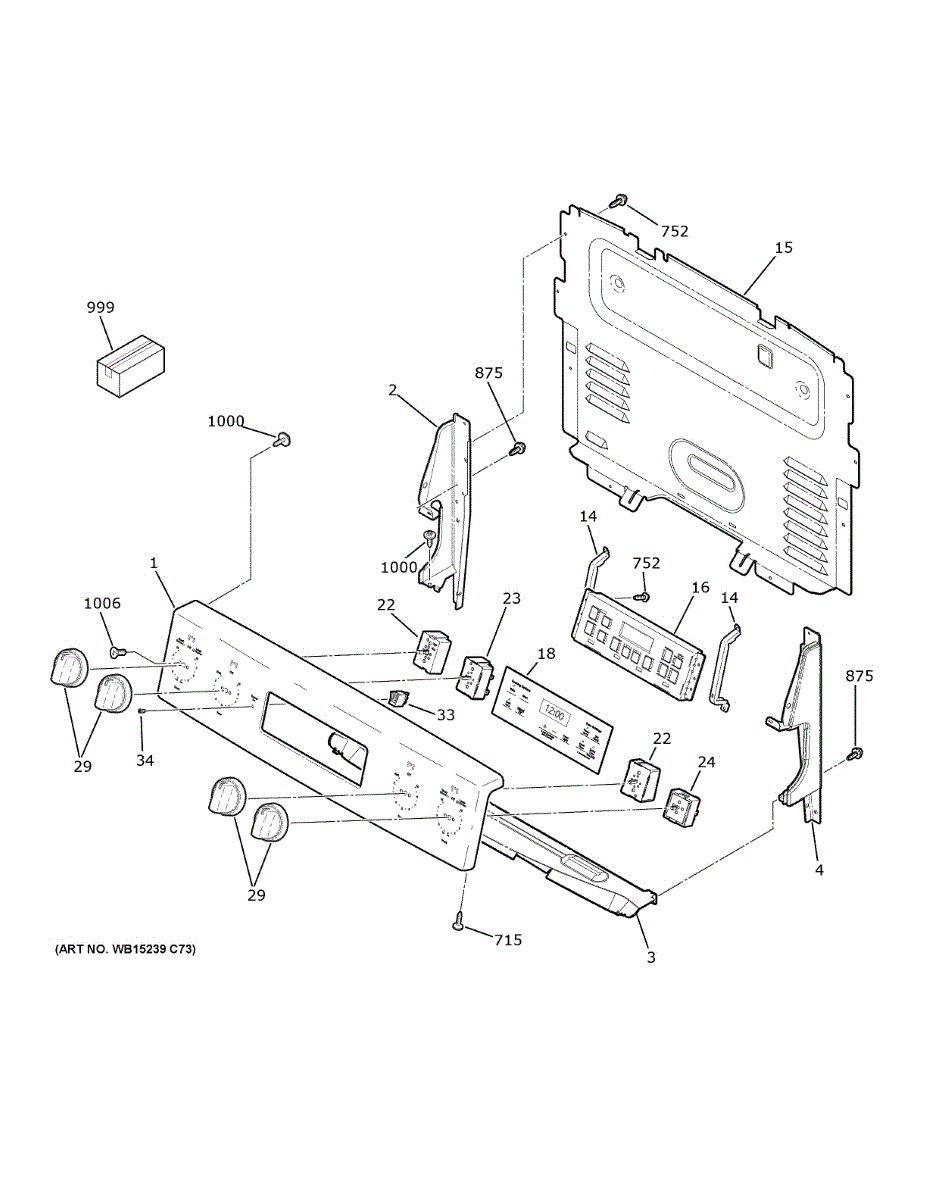

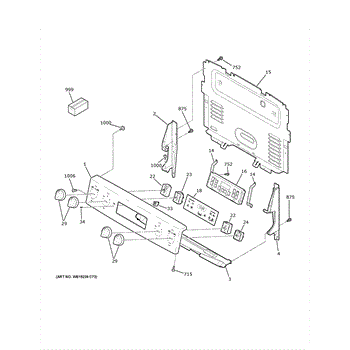

Parts for Ge JB625DK9WW: Control Panel Parts

This control panel bracket secures the console assembly to the appliance, keeping the control panel aligned and stable for reliable operation. It replaces a broken or bent bracket to restore proper panel fit and reduce vibration. What it does:

• Physically supports and fastens the control/console panel to the appliance frame
• Keeps the panel aligned so buttons, knobs, and displays operate correctly
• Prevents panel wobble, rattling, or sagging that can interfere with controls
• Restores secure mounting after impact or metal fatigue

• Disconnect power to the appliance before starting work to avoid shock or injury
• Basic hand tools (screwdriver, nut driver) are usually required; remove any trim or back panels as needed
• Retain original screws and mounting hardware unless replacement hardware is specified
• If plastic clips or adjacent parts are damaged, inspect and replace them to ensure a secure fit

This control panel back cover protects and supports the range/oven console electronics and wiring, keeping the control area secure and stable for safe operation and service access. What it does

• Covers and shields the control board and wiring from heat, grease and accidental contact
• Provides a mounting surface for switches, buttons and display components
• Helps prevent loose or exposed wiring that can cause intermittent control issues
• Used when the original back cover is cracked, warped, melted or otherwise damaged

• Disconnect power at the breaker or unplug the appliance before starting
• Remove the console or control panel assembly to access the back cover
• Use appropriate hand tools; keep and reuse original screws/clips when possible
• Inspect surrounding components for damage while replacing the cover

The Control Oven TO9 (Elec) is an OEM component specifically designed for GE electric ranges. This control board directs all functions of the oven cavity, including bake, broil and temperature settings.

Symptoms of a faulty control board can include:

• Failure to maintain accurate oven temperatures
• Issues selecting or switching between cooking modes
• Display/indicator lights not illuminating properly
• Erratic operation such as cycling off unexpectedly

Causes of failure involve prolonged exposure to heat cycling and moisture, physical impact over the years, or shorts from embedded dirt/debris.

This GE part is compatible with Hotpoint and select Kenmore brands as well.

This white faceplate graphics panel replaces worn or faded front-panel labeling on your oven or range console so controls are easy to read and use. Restores original appearance and helps prevent button/knob confusion. What it does:

• Replaces damaged, faded, or scratched control panel graphics for clearer markings
• Restores printed labels and icons used to identify oven/range functions
• Helps improve visibility of settings and reduces user error when selecting cycles
• Useful cosmetic repair for scraped or discolored control surfaces

• Designed to fit into the control console; refer to your model's service manual for removal/replacement steps
• Power off and disconnect appliance before servicing to avoid electrical shock
• Handle carefully to avoid scratching the printed surface during installation
• Use appropriate hand tools and avoid forcing clips or tabs to prevent breakage

The Surface Burner Switch is an OEM part for GE ranges and cooktops, designed to control the heat level of the surface burners. This switch allows users to adjust the temperature of the burners for boiling, simmering, or frying.

Causes for replacement may include electrical issues within the switch, physical damage, or wear and tear from regular use. A faulty switch can lead to cooking frustrations, potential safety hazards due to uncontrolled heat, and increased energy consumption.

Symptoms of a bad Surface Burner Switch include:

• Burner not heating to the set level
• Burner heating inconsistently or not at all
• The switch feeling loose or failing to click into position

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite  Knob is an OEM replacement part for GE ranges. It allows you to easily adjust and control the heat settings of your range. A bad infinite knob can be caused by regular wear and tear, accidental damage, or exposure to heat and moisture. If you find that the knob is difficult to turn, loose, or shows signs of wear, it may be time to replace it.

Symptoms of a faulty infinite knob include:

• Difficulty in adjusting burner heat levels
• Loose or wobbly knob
• Damage or discoloration of the knob

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

The Indicator Light Lens is an OEM component specifically designed for GE ranges. This clear plastic lens surrounds the internal cooktop indicator lights to protect the bulbs.

Causes of a damaged lens can include normal wear from regular usage as well as accidental bumps or spills on the control panel surface.

Symptoms include:

• Cracks, scratches or clouding appearing on the lens material
• The lens detaching from its mounting points
• Obscured visibility of indicator lights below

This genuine GE lens is compatible with Hotpoint, RCA, and Kenmore models too.

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
