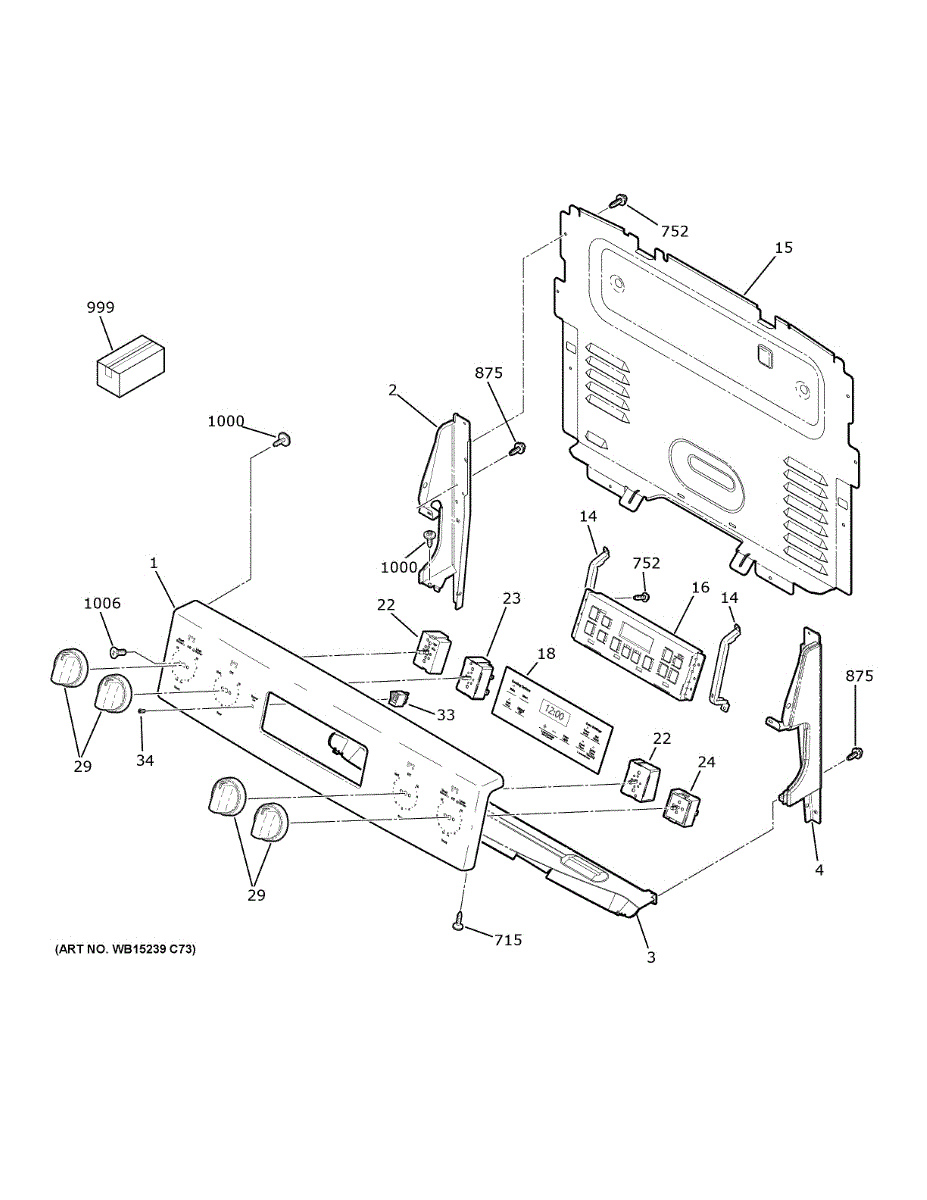

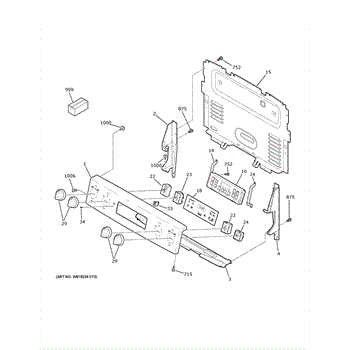

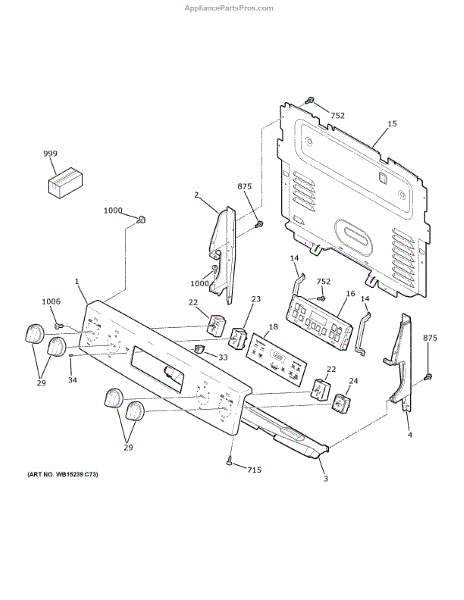

Parts for Ge JB625RK8SS: Control Panel Parts

This stainless control panel trim replaces the front trim piece that surrounds the range/oven control console, restoring a clean, finished appearance and covering damaged or worn edges. Designed to match stainless finishes. What it does:

• Replaces a dented, scratched, or chipped control panel trim to improve appearance.
• Covers mounting holes and the front edge of the console for a finished look.
• Helps protect the underlying control console from everyday wear and spills.
• Fits where the original trim was removed or damaged; restores factory styling.

• One stainless control panel trim.

• Disconnect power to the appliance before starting any work.
• Remove the range/oven control console trim screws to lift out the old trim and install the replacement.
• Handle trim edges carefully to avoid cuts and to prevent scratching the finish.
• Reuse existing mounting hardware unless damaged.

This control panel bracket secures the console assembly to the appliance, keeping the control panel aligned and stable for reliable operation. It replaces a broken or bent bracket to restore proper panel fit and reduce vibration. What it does:

• Physically supports and fastens the control/console panel to the appliance frame
• Keeps the panel aligned so buttons, knobs, and displays operate correctly
• Prevents panel wobble, rattling, or sagging that can interfere with controls
• Restores secure mounting after impact or metal fatigue

• Disconnect power to the appliance before starting work to avoid shock or injury
• Basic hand tools (screwdriver, nut driver) are usually required; remove any trim or back panels as needed
• Retain original screws and mounting hardware unless replacement hardware is specified
• If plastic clips or adjacent parts are damaged, inspect and replace them to ensure a secure fit

This control panel back cover protects and supports the range/oven console electronics and wiring, keeping the control area secure and stable for safe operation and service access. What it does

• Covers and shields the control board and wiring from heat, grease and accidental contact
• Provides a mounting surface for switches, buttons and display components
• Helps prevent loose or exposed wiring that can cause intermittent control issues
• Used when the original back cover is cracked, warped, melted or otherwise damaged

• Disconnect power at the breaker or unplug the appliance before starting
• Remove the console or control panel assembly to access the back cover
• Use appropriate hand tools; keep and reuse original screws/clips when possible
• Inspect surrounding components for damage while replacing the cover

The Control Oven TO9 (Elec) is an OEM component specifically designed for GE electric ranges. This control board directs all functions of the oven cavity, including bake, broil and temperature settings.

Symptoms of a faulty control board can include:

• Failure to maintain accurate oven temperatures
• Issues selecting or switching between cooking modes
• Display/indicator lights not illuminating properly
• Erratic operation such as cycling off unexpectedly

Causes of failure involve prolonged exposure to heat cycling and moisture, physical impact over the years, or shorts from embedded dirt/debris.

This GE part is compatible with Hotpoint and select Kenmore brands as well.

This replacement control panel overlay restores the printed button labels on your microwave. It refreshes a worn or peeling faceplate so controls are easy to read and the panel looks clean and uniform again.

• Provides the graphic layer for the keypad and control buttons
• Replaces overlays that are faded, bubbled, cracked, or peeling
• Helps protect the underlying keypad surface from everyday wear and splashes
• Restores readability when icons or labels have worn off

• Disconnect power to the microwave before servicing; high-voltage components can retain a charge.
• Remove the control panel/trim as needed to access the old overlay; note orientation before removal.
• Clean the mounting surface of residue; align carefully and press evenly to seat the new overlay.
• Avoid harsh solvents or sharp tools that could scratch the panel or damage the keypad.

The Surface Burner Switch is an OEM part for GE ranges and cooktops, designed to control the heat level of the surface burners. This switch allows users to adjust the temperature of the burners for boiling, simmering, or frying.

Causes for replacement may include electrical issues within the switch, physical damage, or wear and tear from regular use. A faulty switch can lead to cooking frustrations, potential safety hazards due to uncontrolled heat, and increased energy consumption.

Symptoms of a bad Surface Burner Switch include:

• Burner not heating to the set level
• Burner heating inconsistently or not at all
• The switch feeling loose or failing to click into position

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Knob Infinite (bk) is an OEM part for GE electric ranges. This black ceramic knob controls the infinite switch on the oven, which allows for temperature adjustments between bake and broil.

Symptoms of a bad knob include:

• Failure to switch accurately between bake and broil modes
• Loose, wobbly or difficult to turn knob
• Faded or cracked knob surface
• Inconsistent or unpredictable temperature performance

Causes can include wear over time from heat exposure and normal usage. Repeated temperature cycling puts stress on the internal components.

This GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

The Indicator Light Lens is an OEM component specifically designed for GE ranges. This clear plastic lens surrounds the internal cooktop indicator lights to protect the bulbs.

Causes of a damaged lens can include normal wear from regular usage as well as accidental bumps or spills on the control panel surface.

Symptoms include:

• Cracks, scratches or clouding appearing on the lens material
• The lens detaching from its mounting points
• Obscured visibility of indicator lights below

This genuine GE lens is compatible with Hotpoint, RCA, and Kenmore models too.

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
