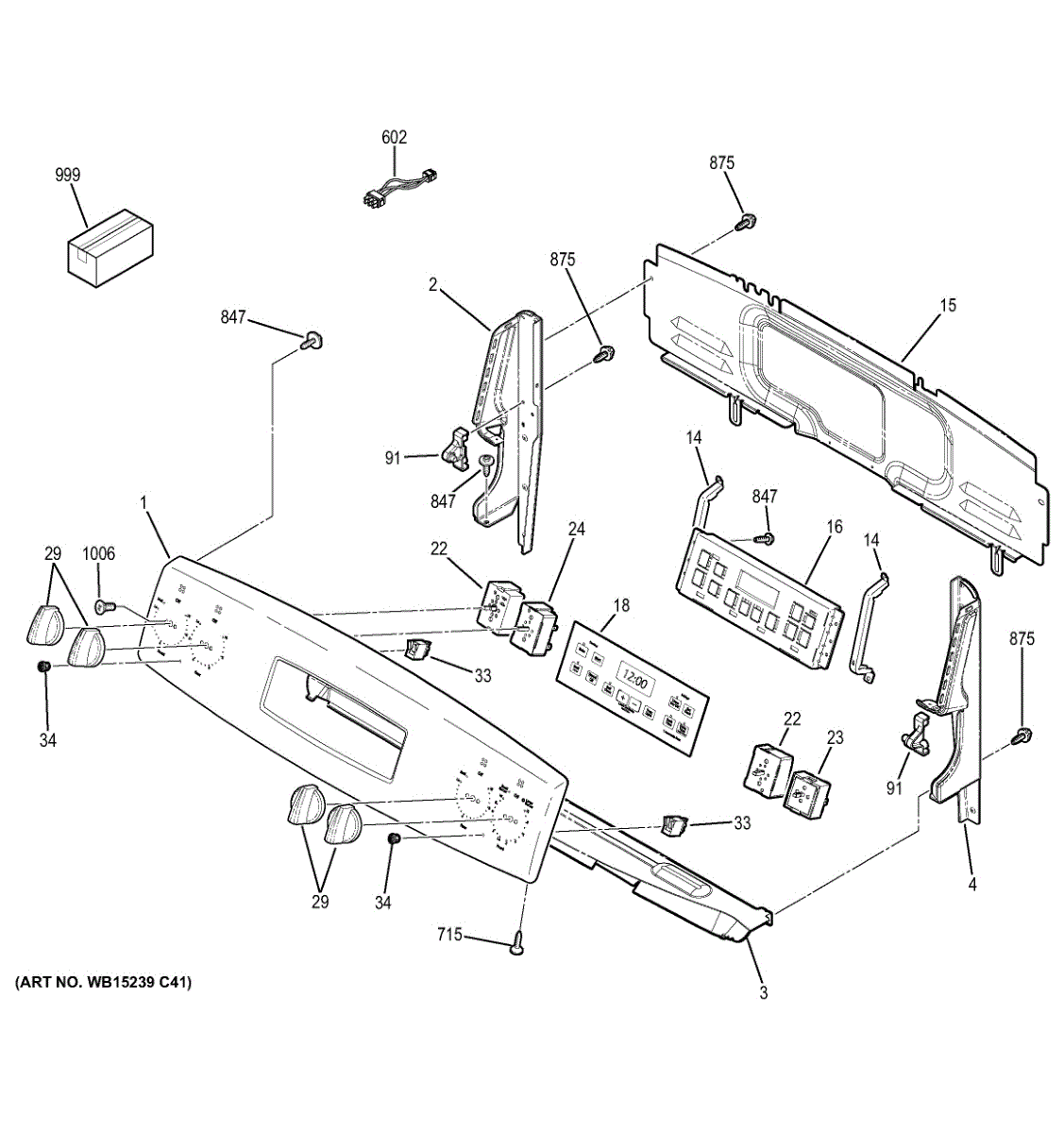

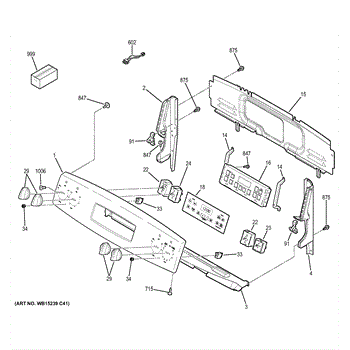

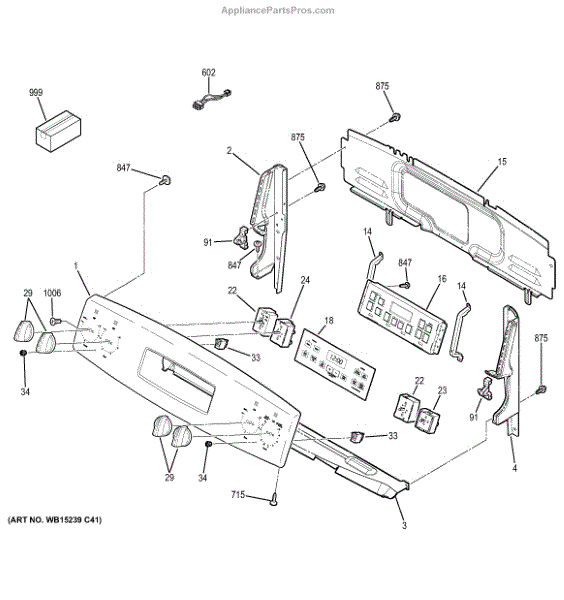

Parts for Ge JB630DF5WW: Control Panel Parts

This trim and bracket assembly restores the oven's front appearance and supports the control panel and trim pieces for a secure fit. It replaces damaged or missing trim to improve alignment and finish around the cooktop/console area. What it does

• Secures and positions front trim and control panel components for proper fit
• Replaces cracked, chipped, or bent trim that affects appearance
• Helps stop rattling or misalignment of the control area and edge trim
• Restores the finished edge around the cooktop/console for a clean look

• Disconnect power to the appliance before starting any repair to avoid shock.
• Remove any trim screws or fasteners holding the existing trim; keep hardware for reuse.
• Handle edges and painted surfaces carefully to avoid scratches; use a soft cloth or protective pad.

This control bracket secures the appliance control assembly to the cabinet, keeping the control panel stable for reliable operation and preventing movement that can cause loose connections or noise. It's a direct-fit mounting part used where the control needs support. What it does

• Secures the control or control board to the appliance cabinet or console
• Keeps the control panel aligned and prevents vibrations or rattling
• Helps maintain reliable electrical connections by preventing movement
• Can resolve symptoms like a loose or shifting control panel, unusual noise near the control area, or intermittent contact caused by a displaced control

• One control bracket (mounting bracket), as shown

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Basic hand tools (screwdriver, nut driver) are typically required; retain original fasteners unless replacements are specified
• Verify the part number matches the original part before installation

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This faceplate graphics is the white overlay for the control panel that displays the printed labels and icons. Replace a worn or peeling overlay to restore clear, readable markings and a clean, like-new appearance on the control area. What it does:

• Provides the printed labels/icons for the control panel controls
• Restores legibility when markings are faded, scratched, or damaged
• Refreshes the control area's appearance to match the appliance finish
• Common symptoms: peeling, bubbling, cracking, missing sections, or hard-to-read labels

• 1 faceplate graphics overlay in white

• Disconnect power at the breaker before servicing
• Remove knobs, trim, or the control panel cover as required by your model
• Carefully remove the old overlay and clean/dry the mounting surface
• Align the new overlay and apply smoothly to avoid wrinkles or bubbles

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Burner Switch is an OEM part for GE ranges and cooktops, designed to control the heat level of the surface burners. This switch allows users to adjust the temperature of the burners for boiling, simmering, or frying.

Causes for replacement may include electrical issues within the switch, physical damage, or wear and tear from regular use. A faulty switch can lead to cooking frustrations, potential safety hazards due to uncontrolled heat, and increased energy consumption.

Symptoms of a bad Surface Burner Switch include:

• Burner not heating to the set level
• Burner heating inconsistently or not at all
• The switch feeling loose or failing to click into position

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Knob is an OEM part for GE ranges. This knob is used to control the heat settings on the range’s burners, allowing for precise temperature adjustments during cooking.

Causes of a bad infinite knob can include wear and tear from regular use, accidental damage from impacts, or internal component failure that affects the knob’s ability to turn or properly control the burner.

Symptoms of a bad infinite knob include:

• Difficulty turning the knob
• Burners not responding to temperature adjustments
• Knob feeling loose or wobbly
• Cracks or visible damage on the knob

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

The Indicator Light Lens is an OEM component specifically designed for GE ranges. This clear plastic lens surrounds the internal cooktop indicator lights to protect the bulbs.

Causes of a damaged lens can include normal wear from regular usage as well as accidental bumps or spills on the control panel surface.

Symptoms include:

• Cracks, scratches or clouding appearing on the lens material
• The lens detaching from its mounting points
• Obscured visibility of indicator lights below

This genuine GE lens is compatible with Hotpoint, RCA, and Kenmore models too.

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

Black. 8-18 AB HXW 3/8

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
