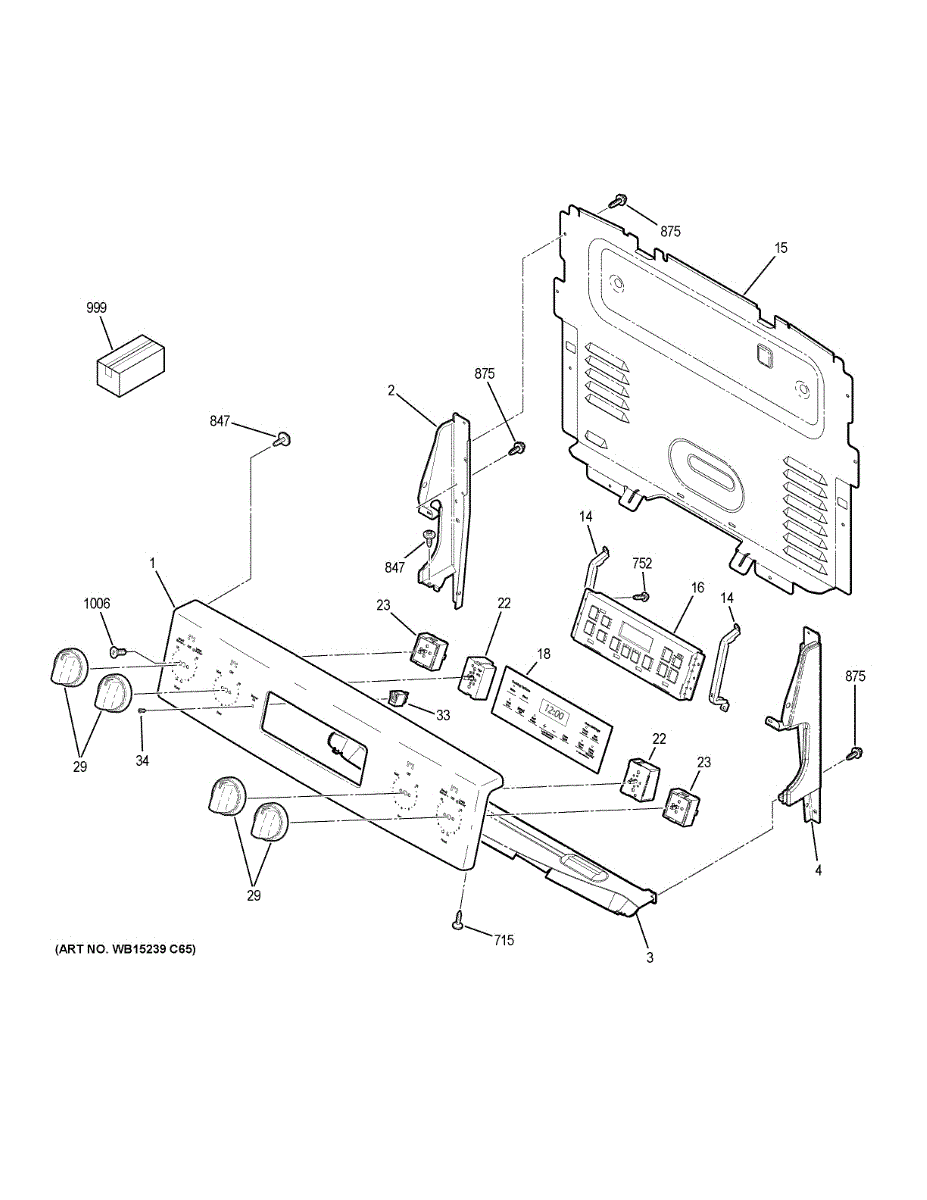

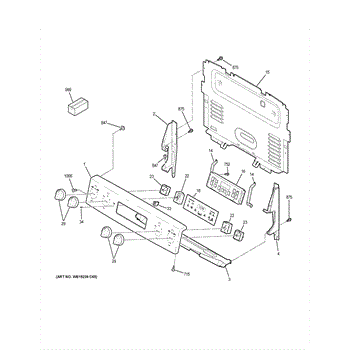

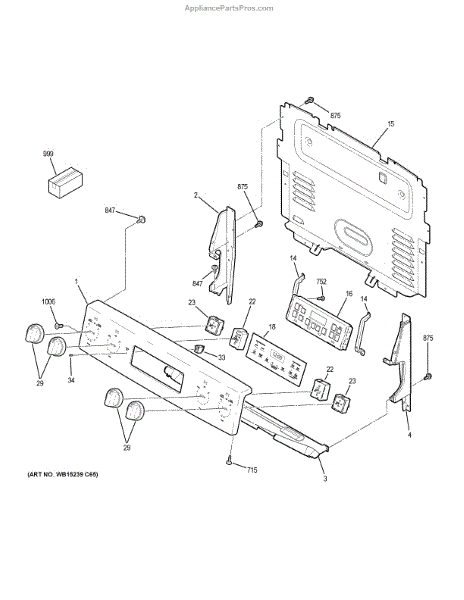

Parts for Ge JB645RK9SS: Control Panel Parts

This stainless control panel trim replaces worn or damaged trim on compatible GE appliance control panels, restoring a clean finished appearance and protecting the edges of the control area. What it does

• Replaces scratched, dented or corroded control panel trim to improve appearance
• Covers and protects control edges and fasteners from spills and wear
• Restores proper fit and finish around buttons, displays and control openings
• Helps prevent moisture and debris from reaching internal controls

• One stainless control panel trim piece

• Disconnect power to the appliance before beginning any repair
• Remove existing trim by loosening fasteners or tabs; retain screws if reusing
• Align new trim carefully with mounting tabs and secure with original fasteners

This control panel bracket secures the console assembly to the appliance, keeping the control panel aligned and stable for reliable operation. It replaces a broken or bent bracket to restore proper panel fit and reduce vibration. What it does:

• Physically supports and fastens the control/console panel to the appliance frame
• Keeps the panel aligned so buttons, knobs, and displays operate correctly
• Prevents panel wobble, rattling, or sagging that can interfere with controls
• Restores secure mounting after impact or metal fatigue

• Disconnect power to the appliance before starting work to avoid shock or injury
• Basic hand tools (screwdriver, nut driver) are usually required; remove any trim or back panels as needed
• Retain original screws and mounting hardware unless replacement hardware is specified
• If plastic clips or adjacent parts are damaged, inspect and replace them to ensure a secure fit

This control panel back cover protects and supports the range/oven console electronics and wiring, keeping the control area secure and stable for safe operation and service access. What it does

• Covers and shields the control board and wiring from heat, grease and accidental contact
• Provides a mounting surface for switches, buttons and display components
• Helps prevent loose or exposed wiring that can cause intermittent control issues
• Used when the original back cover is cracked, warped, melted or otherwise damaged

• Disconnect power at the breaker or unplug the appliance before starting
• Remove the console or control panel assembly to access the back cover
• Use appropriate hand tools; keep and reuse original screws/clips when possible
• Inspect surrounding components for damage while replacing the cover

The Control Oven TO9 (Elec) is an OEM component specifically designed for GE electric ranges. This control board directs all functions of the oven cavity, including bake, broil and temperature settings.

Symptoms of a faulty control board can include:

• Failure to maintain accurate oven temperatures
• Issues selecting or switching between cooking modes
• Display/indicator lights not illuminating properly
• Erratic operation such as cycling off unexpectedly

Causes of failure involve prolonged exposure to heat cycling and moisture, physical impact over the years, or shorts from embedded dirt/debris.

This GE part is compatible with Hotpoint and select Kenmore brands as well.

This replacement control panel overlay restores the printed button labels on your microwave. It refreshes a worn or peeling faceplate so controls are easy to read and the panel looks clean and uniform again.

• Provides the graphic layer for the keypad and control buttons
• Replaces overlays that are faded, bubbled, cracked, or peeling
• Helps protect the underlying keypad surface from everyday wear and splashes
• Restores readability when icons or labels have worn off

• Disconnect power to the microwave before servicing; high-voltage components can retain a charge.
• Remove the control panel/trim as needed to access the old overlay; note orientation before removal.
• Clean the mounting surface of residue; align carefully and press evenly to seat the new overlay.
• Avoid harsh solvents or sharp tools that could scratch the panel or damage the keypad.

The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement control knob fits the surface burner's infinite switch on compatible ranges and cooktops. It restores smooth on/off operation and precise heat selection while refreshing the appliance's appearance.

• Attaches to the surface element's infinite switch to select OFF through HI settings
• Restores ability to turn the burner on/off and adjust heat levels accurately
• Ideal replacement for knobs that are cracked, stripped, loose, missing, or hard to turn
• Helps ensure the indicator aligns properly with the control panel markings

• Disconnect power and allow all burners to cool before servicing
• Pull the old knob straight off the switch shaft; do not pry against the control panel
• Align the new knob with the shaft and OFF position, then push straight on until fully seated
• Restore power and test each setting for proper engagement and alignment

This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

The Light Lens is an OEM part for GE gas ranges. It is the protective glass cover that shields the oven light on the control board.

Causes of a bad light lens include cracks, chips or breaks that compromise its protective function.

Symptoms of a bad light lens include:

• Broken or missing lens exposing the interior light bulb
• Inability to illuminate on the board
• Risk of bulb breakage from impacts or debris on the panel

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
