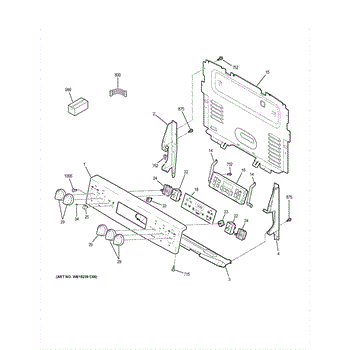

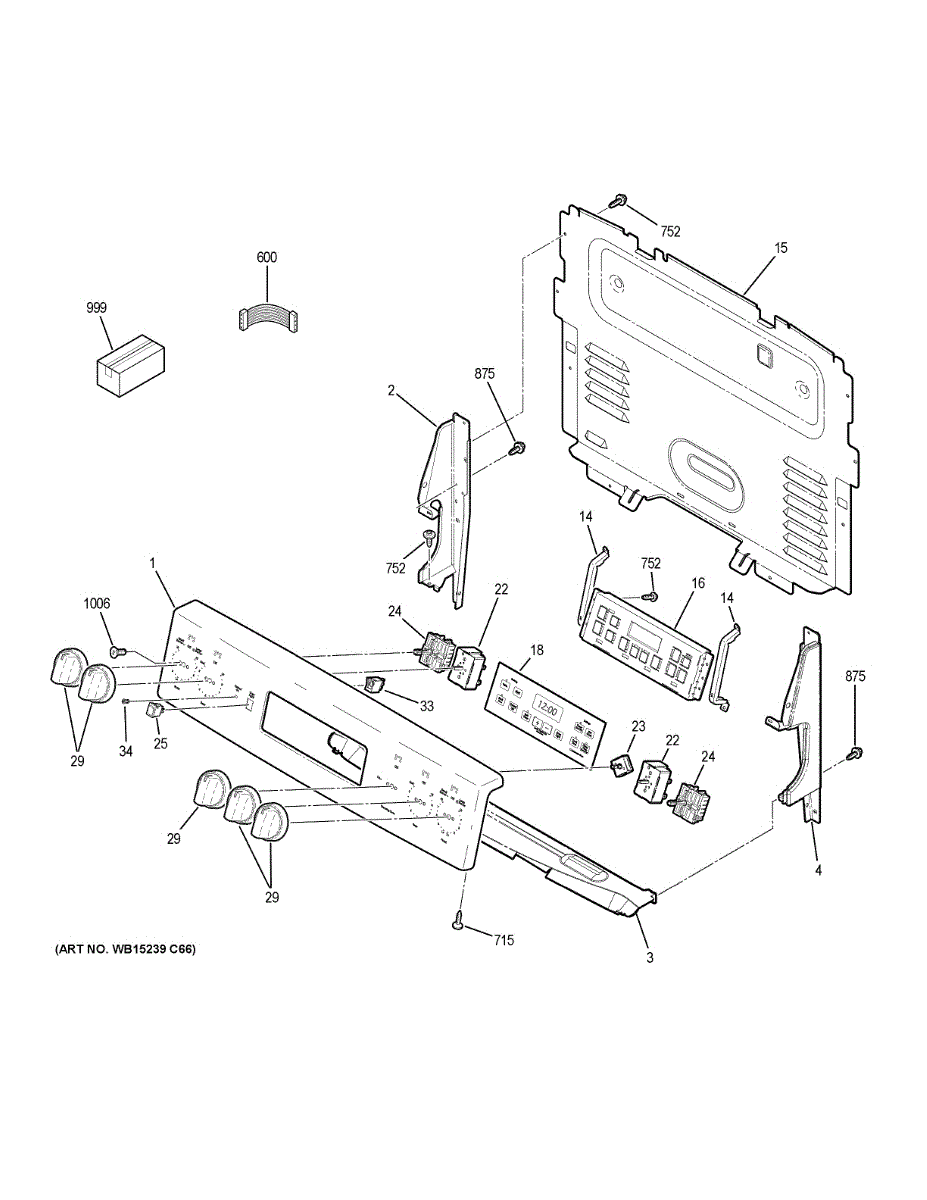

Parts for Ge JB655DK8WW: Control Panel Parts

A replacement control panel trim and bracket assembly that restores the front appearance and support for your appliance's control area. Keeps the control surface aligned and helps maintain a finished look. What it does:

• Replaces damaged or cracked control panel trim to improve appearance
• Secures the control board and related components with integrated brackets
• Helps reduce rattles or misalignment caused by worn or broken trim
• Intended for use where the original trim assembly is broken, chipped, or loose

• One control panel trim and brackets assembly

• Designed to mount in place of the original trim; follow manufacturer service manual for removal/installation
• Power off and unplug the appliance before starting work to avoid shock or injury
• Handle switches and wiring with care; do not force connectors or fasteners

This control panel bracket secures the console assembly to the appliance, keeping the control panel aligned and stable for reliable operation. It replaces a broken or bent bracket to restore proper panel fit and reduce vibration. What it does:

• Physically supports and fastens the control/console panel to the appliance frame
• Keeps the panel aligned so buttons, knobs, and displays operate correctly
• Prevents panel wobble, rattling, or sagging that can interfere with controls
• Restores secure mounting after impact or metal fatigue

• Disconnect power to the appliance before starting work to avoid shock or injury
• Basic hand tools (screwdriver, nut driver) are usually required; remove any trim or back panels as needed
• Retain original screws and mounting hardware unless replacement hardware is specified
• If plastic clips or adjacent parts are damaged, inspect and replace them to ensure a secure fit

This control panel back cover protects and supports the range/oven console electronics and wiring, keeping the control area secure and stable for safe operation and service access. What it does

• Covers and shields the control board and wiring from heat, grease and accidental contact
• Provides a mounting surface for switches, buttons and display components
• Helps prevent loose or exposed wiring that can cause intermittent control issues
• Used when the original back cover is cracked, warped, melted or otherwise damaged

• Disconnect power at the breaker or unplug the appliance before starting
• Remove the console or control panel assembly to access the back cover
• Use appropriate hand tools; keep and reuse original screws/clips when possible
• Inspect surrounding components for damage while replacing the cover

The Control Oven TO9 (Elec) is an OEM component specifically designed for GE electric ranges. This control board directs all functions of the oven cavity, including bake, broil and temperature settings.

Symptoms of a faulty control board can include:

• Failure to maintain accurate oven temperatures
• Issues selecting or switching between cooking modes
• Display/indicator lights not illuminating properly
• Erratic operation such as cycling off unexpectedly

Causes of failure involve prolonged exposure to heat cycling and moisture, physical impact over the years, or shorts from embedded dirt/debris.

This GE part is compatible with Hotpoint and select Kenmore brands as well.

This rotary switch turns with the control knob to open and close circuits that command your appliance's function. A worn or failed switch can cause a control to stop responding, work intermittently, or not hold its setting.

• Provides on/off or multi-position control for the selected function
• Restores proper response to the matching control knob
• Common failure signs include non-responsive control, intermittent operation, or inability to change settings
• Electrical parts should be handled with power disconnected

• Disconnect power before servicing; verify no voltage is present
• Note wire positions or take a photo before removal
• Transfer knob shaft orientation and mounting hardware from the original if reusable
• Do not overtighten mounting fasteners; test operation before reassembly

The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite  Knob is an OEM replacement part for GE ranges. It allows you to easily adjust and control the heat settings of your range. A bad infinite knob can be caused by regular wear and tear, accidental damage, or exposure to heat and moisture. If you find that the knob is difficult to turn, loose, or shows signs of wear, it may be time to replace it.

Symptoms of a faulty infinite knob include:

• Difficulty in adjusting burner heat levels
• Loose or wobbly knob
• Damage or discoloration of the knob

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

The Indicator Light Lens is an OEM component specifically designed for GE ranges. This clear plastic lens surrounds the internal cooktop indicator lights to protect the bulbs.

Causes of a damaged lens can include normal wear from regular usage as well as accidental bumps or spills on the control panel surface.

Symptoms include:

• Cracks, scratches or clouding appearing on the lens material
• The lens detaching from its mounting points
• Obscured visibility of indicator lights below

This genuine GE lens is compatible with Hotpoint, RCA, and Kenmore models too.

This wiring harness connects the cooktop maintop to the infinite (surface) burner switches, delivering reliable electrical connections so burners respond correctly to control settings. Replaces worn or damaged harnesses to restore normal burner operation. What it does:

• Carries power and signal between the cooktop assembly and infinite (surface) burner switches
• Restores proper burner control when a broken, frayed, or loose harness causes intermittent or no heat
• Prevents poor connections that can lead to flickering, unresponsive knobs, or uneven burner performance
• Matches OEM routing and plug locations for direct replacement on compatible ranges

• 1 maintop and infinite switch wiring harness

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Handle connectors gently; match connector shapes and colors for correct installation
• Route harness along original pathways and secure with retained clips or fasteners

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
