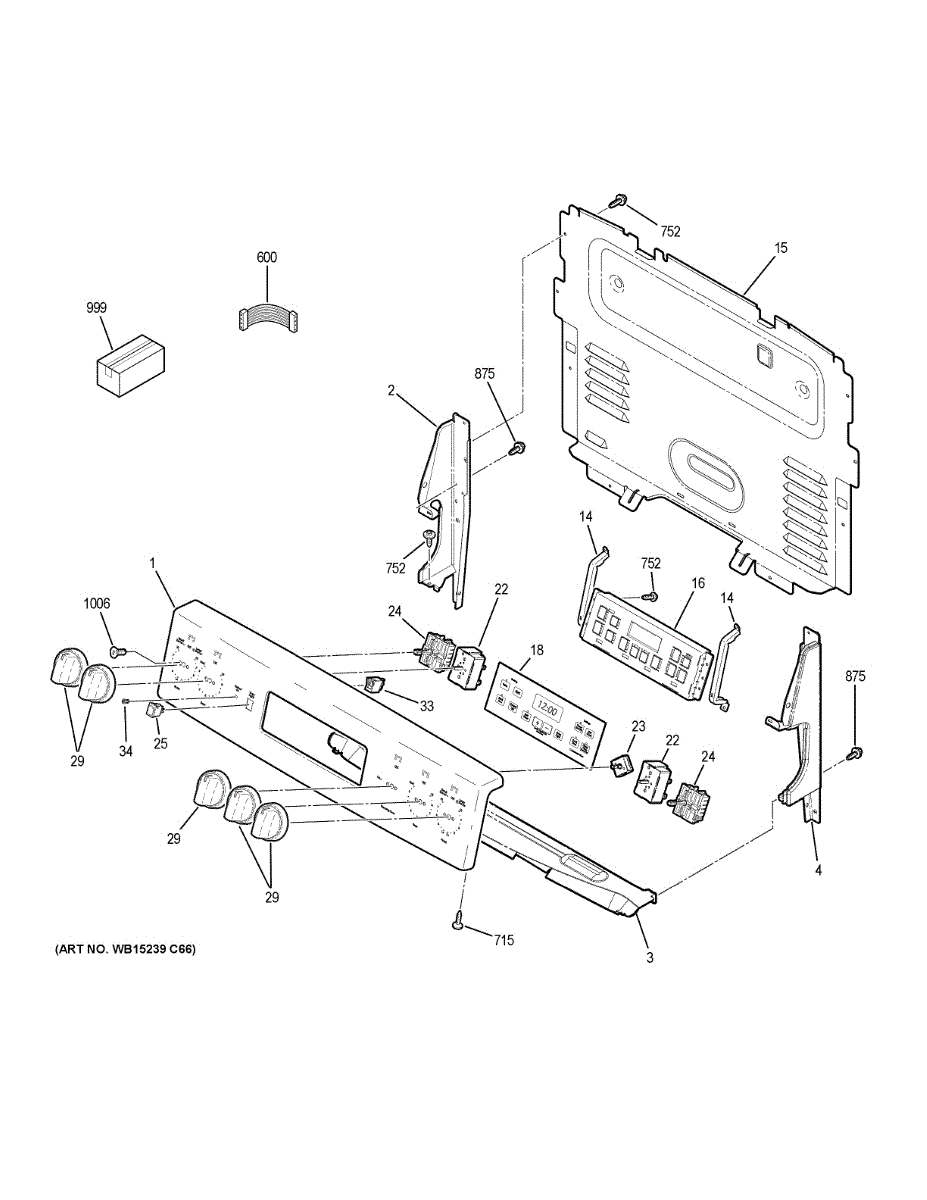

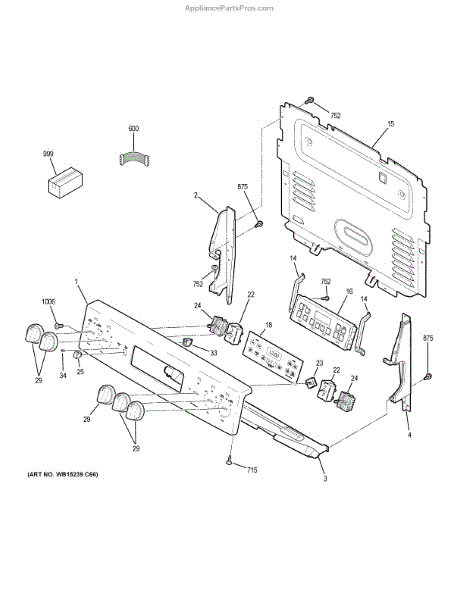

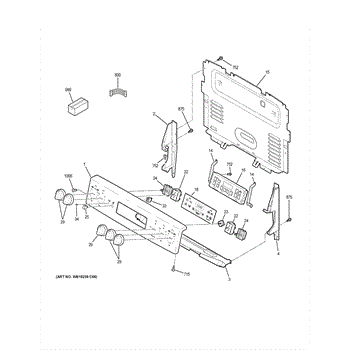

Parts for Ge JB655FK5DS: Control Panel Parts

The control panel End Plate (Left) is an OEM part for GE electric ranges. It forms a barrier along the back left edge of the control panel area providing structural reinforcement and protection.

Over time, end plates can sustain damage due to normal wear and tear of using range buttons/dials daily as well as impacts from accidental bumps. Causes may include operation fatigue plus occasional mishandling.

Causes of a bad end plate include:

• Dents, scratches or cracks in the protective barrier surface
• Loosened mounting fasteners holding it securely
• Reduced control panel integrity and rigidity over long use
• Exposure of fragile internal electronics to potential damage

This exact GE replacement part also fits Hotpoint, RCA and select Kenmore models.

This control panel bracket secures the console assembly to the appliance, keeping the control panel aligned and stable for reliable operation. It replaces a broken or bent bracket to restore proper panel fit and reduce vibration. What it does:

• Physically supports and fastens the control/console panel to the appliance frame
• Keeps the panel aligned so buttons, knobs, and displays operate correctly
• Prevents panel wobble, rattling, or sagging that can interfere with controls
• Restores secure mounting after impact or metal fatigue

• Disconnect power to the appliance before starting work to avoid shock or injury
• Basic hand tools (screwdriver, nut driver) are usually required; remove any trim or back panels as needed
• Retain original screws and mounting hardware unless replacement hardware is specified
• If plastic clips or adjacent parts are damaged, inspect and replace them to ensure a secure fit

This control panel back cover protects and supports the range/oven console electronics and wiring, keeping the control area secure and stable for safe operation and service access. What it does

• Covers and shields the control board and wiring from heat, grease and accidental contact
• Provides a mounting surface for switches, buttons and display components
• Helps prevent loose or exposed wiring that can cause intermittent control issues
• Used when the original back cover is cracked, warped, melted or otherwise damaged

• Disconnect power at the breaker or unplug the appliance before starting
• Remove the console or control panel assembly to access the back cover
• Use appropriate hand tools; keep and reuse original screws/clips when possible
• Inspect surrounding components for damage while replacing the cover

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The gray Faceplate Graphics are an OEM part for GE electric ranges. They are labels applied directly onto the range control panel faceplate to identify buttons and settings clearly.

Over time, heat and cleaning chemicals gradually cause graphic labels to fade, peel or discolor on elevated panels. Without protective coverings, this damage occurs more quickly.

Symptoms of aging graphics include:

• Faded or illegible text obscuring function markings
• Loosened or peeling edges exposing sticky residue
• Discolored or scratched surfaces marring aesthetics

This genuine GE graphic is also compatible with Hotpoint, RCA and select Kenmore models.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rotary Switch is an OEM part for GE electric ranges. This switch is located on the range control panel and allows selection of various oven functions such as bake, broil, and keep warm.

Causes of a bad rotary switch can be normal wear and tear over time, exposure to heat or moisture damage, or accidental impact. Replacing it before a complete failure occurs can help prevent further issues.

Symptoms of a bad rotary switch include:

• Inability to select desired oven functions
• Switch getting stuck or failing to rotate properly
• Displays not accurately reflecting selected function
• Intermittent or unreliable operation of oven

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Indicator Light Lens is an OEM component specifically designed for GE ranges. This clear plastic lens surrounds the internal cooktop indicator lights to protect the bulbs.

Causes of a damaged lens can include normal wear from regular usage as well as accidental bumps or spills on the control panel surface.

Symptoms include:

• Cracks, scratches or clouding appearing on the lens material
• The lens detaching from its mounting points
• Obscured visibility of indicator lights below

This genuine GE lens is compatible with Hotpoint, RCA, and Kenmore models too.

This 14-gauge green lead wire is a direct-replacement electrical connection used on compatible appliances to restore a secure, low-voltage/ground circuit and reliable component operation. It helps replace damaged or worn wiring to prevent intermittent power or arcing. What it does:

• Replaces a damaged or corroded green lead used for grounding or signal return
• Restores a secure electrical connection between controls, switches, or chassis ground
• Helps stop intermittent operation, loss of function, or visible arcing due to bad wiring
• Matches OEM gauge and color for proper fit and safe routing

• One 14-ga green lead wire as pictured

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use proper connectors or crimps and secure the wire to prevent chafing or contact with hot/moving parts
• Test continuity and proper operation after reinstalling and restoring power

This wiring harness connects the cooktop maintop to the infinite (surface) burner switches, delivering reliable electrical connections so burners respond correctly to control settings. Replaces worn or damaged harnesses to restore normal burner operation. What it does:

• Carries power and signal between the cooktop assembly and infinite (surface) burner switches
• Restores proper burner control when a broken, frayed, or loose harness causes intermittent or no heat
• Prevents poor connections that can lead to flickering, unresponsive knobs, or uneven burner performance
• Matches OEM routing and plug locations for direct replacement on compatible ranges

• 1 maintop and infinite switch wiring harness

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Handle connectors gently; match connector shapes and colors for correct installation
• Route harness along original pathways and secure with retained clips or fasteners

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Black. 8-18 AB HXW 3/8
