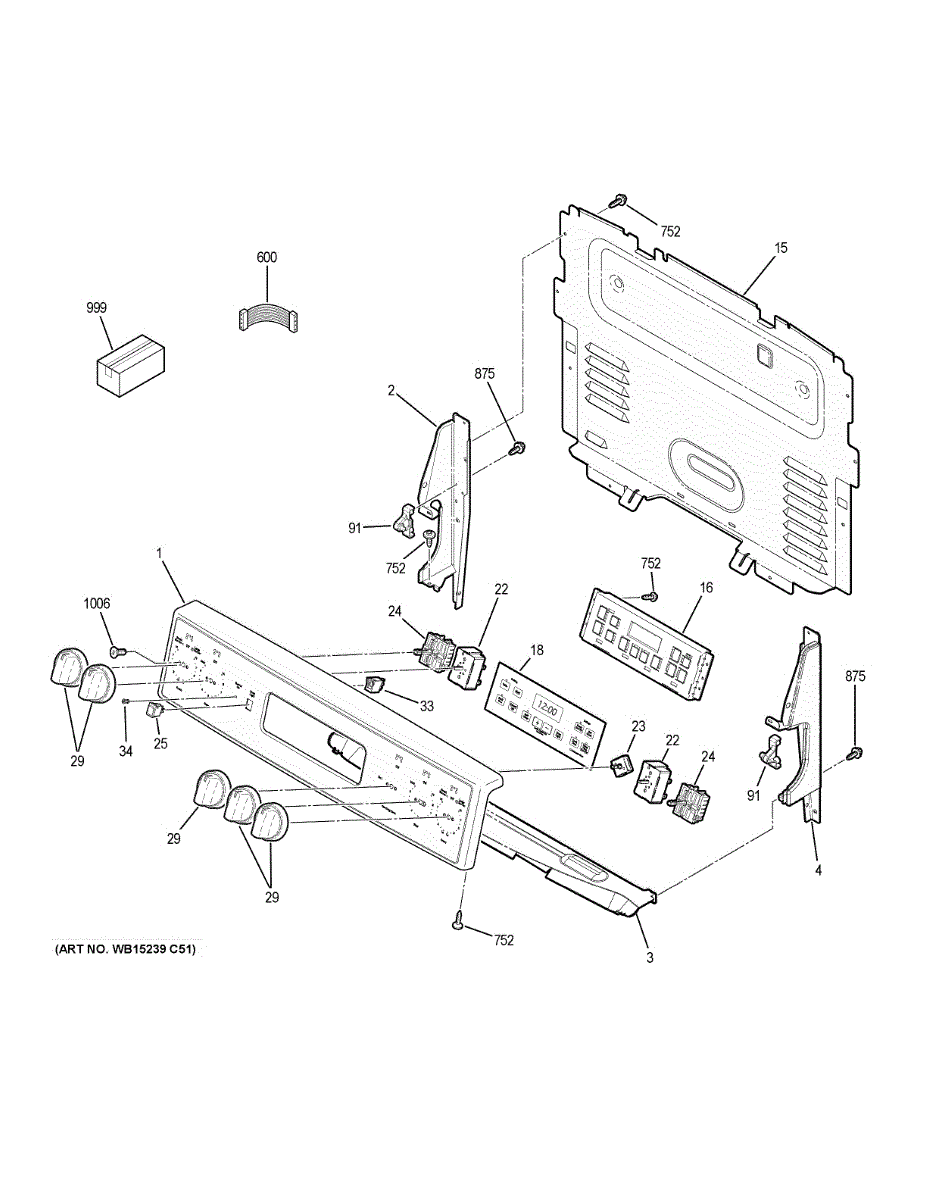

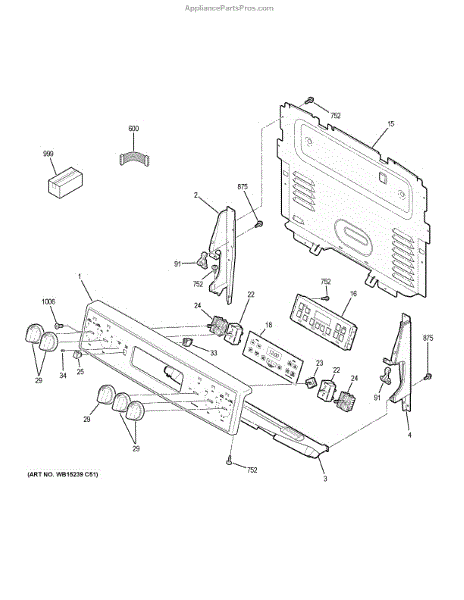

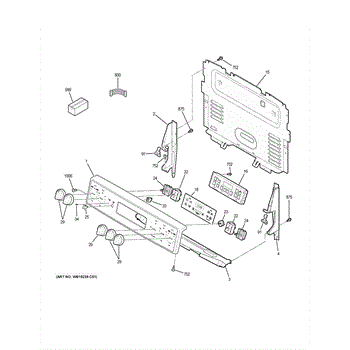

Parts for Ge JB700SJ4SS: Control Panel Parts

This control panel trim and brackets assembly replaces the front trim and mounting brackets around a range or oven control panel to restore a finished stainless look and secure the control module. It helps maintain appearance and proper panel mounting. What it does:

• Covers and finishes the front edge of the control area for a clean, factory look
• Provides the mounting brackets that secure the control panel and related components
• Restores damaged, bent, or missing trim that can expose mounting fasteners
• Helps stop minor gaps that can collect grease or debris around the control area

• Designed to mount to the existing control panel and cabinet; uses factory screw locations
• Disconnect power to the appliance before beginning any disassembly to avoid shock or injury
• If screws or clips are missing or damaged, replace them with OEM fasteners for proper fit

The control panel End Plate (Left) is an OEM part for GE electric ranges. It forms a barrier along the back left edge of the control panel area providing structural reinforcement and protection.

Over time, end plates can sustain damage due to normal wear and tear of using range buttons/dials daily as well as impacts from accidental bumps. Causes may include operation fatigue plus occasional mishandling.

Causes of a bad end plate include:

• Dents, scratches or cracks in the protective barrier surface
• Loosened mounting fasteners holding it securely
• Reduced control panel integrity and rigidity over long use
• Exposure of fragile internal electronics to potential damage

This exact GE replacement part also fits Hotpoint, RCA and select Kenmore models.

This control panel back cover protects and supports the range/oven console electronics and wiring, keeping the control area secure and stable for safe operation and service access. What it does

• Covers and shields the control board and wiring from heat, grease and accidental contact
• Provides a mounting surface for switches, buttons and display components
• Helps prevent loose or exposed wiring that can cause intermittent control issues
• Used when the original back cover is cracked, warped, melted or otherwise damaged

• Disconnect power at the breaker or unplug the appliance before starting
• Remove the console or control panel assembly to access the back cover
• Use appropriate hand tools; keep and reuse original screws/clips when possible
• Inspect surrounding components for damage while replacing the cover

This faceplate graphics overlay replaces the printed control-panel markings so buttons and settings are readable and the range or oven looks factory-fresh. It restores clear labels for safe, accurate operation. What it does:

• Provides printed markings for the appliance control panel so temperatures, modes and buttons are legible
• Helps resolve faded, scratched or worn graphics that make controls hard to read
• Keeps the control area looking clean and factory-original
• Works with the existing control assembly — does not include buttons or electronics

• Disconnect power to the appliance before starting any work
• Remove the control panel or trim per OEM instructions to access the old graphics
• Peel off the old overlay and clean the surface thoroughly before installing the new graphics
• Align carefully and press firmly to ensure full adhesion and correct button alignment

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rotary Switch is an OEM part for GE electric ranges. This switch is located on the range control panel and allows selection of various oven functions such as bake, broil, and keep warm.

Causes of a bad rotary switch can be normal wear and tear over time, exposure to heat or moisture damage, or accidental impact. Replacing it before a complete failure occurs can help prevent further issues.

Symptoms of a bad rotary switch include:

• Inability to select desired oven functions
• Switch getting stuck or failing to rotate properly
• Displays not accurately reflecting selected function
• Intermittent or unreliable operation of oven

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement control knob fits the surface burner's infinite switch on compatible ranges and cooktops. It restores smooth on/off operation and precise heat selection while refreshing the appliance's appearance.

• Attaches to the surface element's infinite switch to select OFF through HI settings
• Restores ability to turn the burner on/off and adjust heat levels accurately
• Ideal replacement for knobs that are cracked, stripped, loose, missing, or hard to turn
• Helps ensure the indicator aligns properly with the control panel markings

• Disconnect power and allow all burners to cool before servicing
• Pull the old knob straight off the switch shaft; do not pry against the control panel
• Align the new knob with the shaft and OFF position, then push straight on until fully seated
• Restore power and test each setting for proper engagement and alignment

This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

This wiring harness connects the cooktop maintop to the infinite (surface) burner switches, delivering reliable electrical connections so burners respond correctly to control settings. Replaces worn or damaged harnesses to restore normal burner operation. What it does:

• Carries power and signal between the cooktop assembly and infinite (surface) burner switches
• Restores proper burner control when a broken, frayed, or loose harness causes intermittent or no heat
• Prevents poor connections that can lead to flickering, unresponsive knobs, or uneven burner performance
• Matches OEM routing and plug locations for direct replacement on compatible ranges

• 1 maintop and infinite switch wiring harness

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Handle connectors gently; match connector shapes and colors for correct installation
• Route harness along original pathways and secure with retained clips or fasteners

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Black. 8-18 AB HXW 3/8

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
