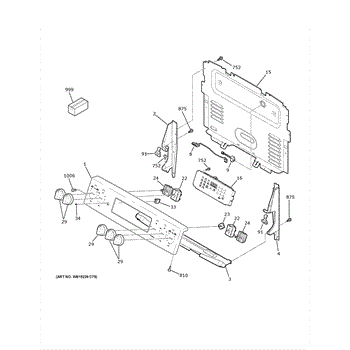

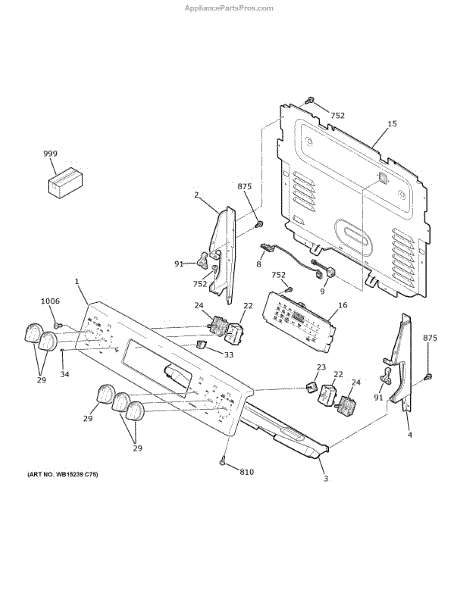

Parts for Ge JB735DP3WW: Control Panel Parts

This control and faceplate assembly replaces the appliance's front control panel so buttons and settings respond correctly and the cooktop looks finished. It restores a secure interface for selecting oven or range functions. What it does:

• Houses the control switches/buttons and the visible faceplate used to operate the range or oven
• Provides the user interface for selecting bake, broil, timers and other cooked settings
• Often replaced when buttons, indicators or the panel are cracked, loose, or unresponsive
• Restores a solid mounting surface and improves safety by covering internal controls

• One control and faceplate assembly as shown

• Disconnect power at the breaker before starting any service to avoid shock
• Handle with care to avoid scratching the faceplate and to protect internal electronic components
• Installation generally requires removing the existing panel and disconnecting/reconnecting wiring harnesses; keep track of screw and connector locations

This rotary switch turns with the control knob to open and close circuits that command your appliance's function. A worn or failed switch can cause a control to stop responding, work intermittently, or not hold its setting.

• Provides on/off or multi-position control for the selected function
• Restores proper response to the matching control knob
• Common failure signs include non-responsive control, intermittent operation, or inability to change settings
• Electrical parts should be handled with power disconnected

• Disconnect power before servicing; verify no voltage is present
• Note wire positions or take a photo before removal
• Transfer knob shaft orientation and mounting hardware from the original if reusable
• Do not overtighten mounting fasteners; test operation before reassembly

The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite  Knob is an OEM replacement part for GE ranges. It allows you to easily adjust and control the heat settings of your range. A bad infinite knob can be caused by regular wear and tear, accidental damage, or exposure to heat and moisture. If you find that the knob is difficult to turn, loose, or shows signs of wear, it may be time to replace it.

Symptoms of a faulty infinite knob include:

• Difficulty in adjusting burner heat levels
• Loose or wobbly knob
• Damage or discoloration of the knob

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

The Indicator Light Lens is an OEM component specifically designed for GE ranges. This clear plastic lens surrounds the internal cooktop indicator lights to protect the bulbs.

Causes of a damaged lens can include normal wear from regular usage as well as accidental bumps or spills on the control panel surface.

Symptoms include:

• Cracks, scratches or clouding appearing on the lens material
• The lens detaching from its mounting points
• Obscured visibility of indicator lights below

This genuine GE lens is compatible with Hotpoint, RCA, and Kenmore models too.

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
