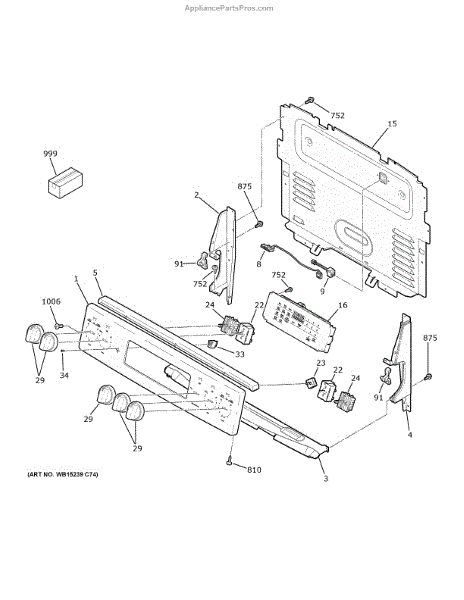

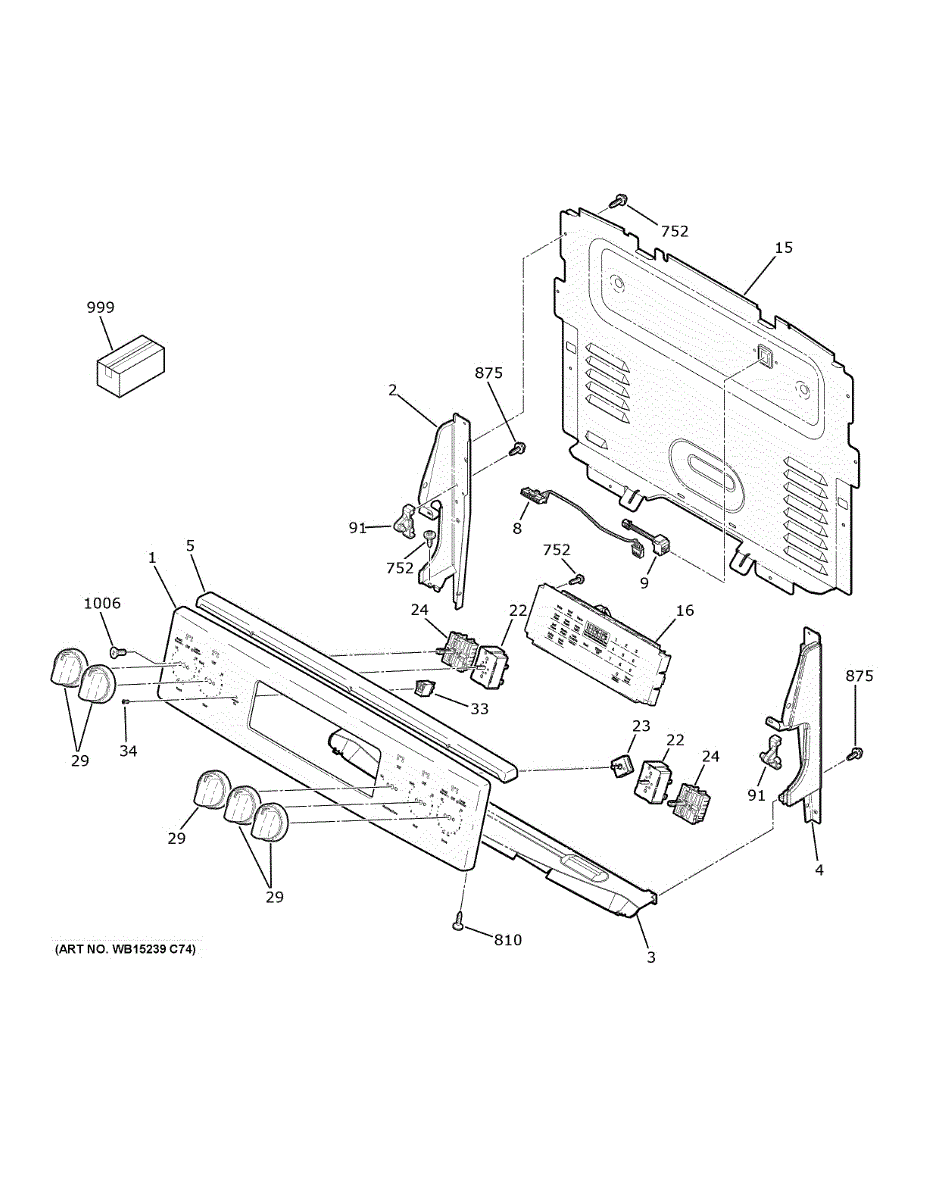

Parts for Ge JB735SP3SS: Control Panel Parts

This stainless control trim is the exterior trim piece that restores the look of the appliance's control area and helps protect the controls from spills and debris. It provides a clean, finished appearance for damaged or scratched control bezels. What it does:

• Covers and protects the front control area from spills, grease and everyday wear
• Restores a factory-finish appearance to scratched or dented control bezels
• Helps keep buttons and knobs cleaner by diverting surface debris
• Fits in place of damaged trim to reduce drafts and improve panel alignment

• Disconnect power to the appliance before beginning any work.
• Installation typically requires removal of the control panel trim screws; keep track of fasteners.
• Handle edges carefully to avoid cuts and to protect the finish.

The control panel End Plate (Left) is an OEM part for GE electric ranges. It forms a barrier along the back left edge of the control panel area providing structural reinforcement and protection.

Over time, end plates can sustain damage due to normal wear and tear of using range buttons/dials daily as well as impacts from accidental bumps. Causes may include operation fatigue plus occasional mishandling.

Causes of a bad end plate include:

• Dents, scratches or cracks in the protective barrier surface
• Loosened mounting fasteners holding it securely
• Reduced control panel integrity and rigidity over long use
• Exposure of fragile internal electronics to potential damage

This exact GE replacement part also fits Hotpoint, RCA and select Kenmore models.

This top trim assembly replaces the finished edge piece that fits along the front of the cooktop, restoring a clean, finished appearance and covering the gap between the cooktop and control panel. It helps prevent debris from falling into internal areas. What it does:

• Covers and protects the front edge of the cooktop, improving appearance
• Hides gaps where food and spills can collect, making cleaning easier
• Helps maintain proper spacing and alignment of the cooktop edge
• Common fix for bent, dented, or cosmetically damaged top trim

• One top trim assembly

• Disconnect power to the appliance before beginning any work to avoid shock hazard
• Remove burners, grates, or cooktop components as needed for access; parts and fasteners may vary by model
• Handle trim carefully—edges can be sharp and panels may scratch; use protective gloves

This control and faceplate assembly is the microwave's front user interface. It integrates the display and keypad so you can set time and cooking functions. Replacing it restores responsive controls and a clean, intact control panel.

• Provides the keypad and display used to operate the microwave
• Sends user selections to the appliance's control system
• Replaces a cracked/damaged faceplate or failed UI electronics
• Common symptoms: unresponsive or intermittent buttons, blank/dim display, cannot enter settings or start, random beeps or error messages

• Disconnect power at the breaker before servicing; microwaves can retain dangerous voltage
• Remove trim/fasteners to access the panel and support it to avoid straining wires or ribbon cables
• Handle the electronics by the edges and use ESD protection
• Photograph connectors before removal and transfer any reusable brackets/clips from the old assembly

This rotary switch turns with the control knob to open and close circuits that command your appliance's function. A worn or failed switch can cause a control to stop responding, work intermittently, or not hold its setting.

• Provides on/off or multi-position control for the selected function
• Restores proper response to the matching control knob
• Common failure signs include non-responsive control, intermittent operation, or inability to change settings
• Electrical parts should be handled with power disconnected

• Disconnect power before servicing; verify no voltage is present
• Note wire positions or take a photo before removal
• Transfer knob shaft orientation and mounting hardware from the original if reusable
• Do not overtighten mounting fasteners; test operation before reassembly

The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement control knob fits the surface burner's infinite switch on compatible ranges and cooktops. It restores smooth on/off operation and precise heat selection while refreshing the appliance's appearance.

• Attaches to the surface element's infinite switch to select OFF through HI settings
• Restores ability to turn the burner on/off and adjust heat levels accurately
• Ideal replacement for knobs that are cracked, stripped, loose, missing, or hard to turn
• Helps ensure the indicator aligns properly with the control panel markings

• Disconnect power and allow all burners to cool before servicing
• Pull the old knob straight off the switch shaft; do not pry against the control panel
• Align the new knob with the shaft and OFF position, then push straight on until fully seated
• Restore power and test each setting for proper engagement and alignment

This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

The Indicator Light Lens is an OEM component specifically designed for GE ranges. This clear plastic lens surrounds the internal cooktop indicator lights to protect the bulbs.

Causes of a damaged lens can include normal wear from regular usage as well as accidental bumps or spills on the control panel surface.

Symptoms include:

• Cracks, scratches or clouding appearing on the lens material
• The lens detaching from its mounting points
• Obscured visibility of indicator lights below

This genuine GE lens is compatible with Hotpoint, RCA, and Kenmore models too.

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

This silicon controlled rectifier (SCR) is a replacement power-control semiconductor that helps regulate heating or motor circuits in compatible appliances. Restores controlled switching for stable operation and consistent performance. What it does:

• Controls power delivery to heating elements or motors by switching current on and off
• Helps correct symptoms such as intermittent heating, burners or motors that won't respond, or erratic operation
• Replaces a failed or shorted SCR to restore proper control functionality
• Operates as part of the appliance's control/regulator circuitry to manage current flow safely

• Disconnect power (unplug appliance or switch off circuit breaker) before servicing
• Observe ESD precautions and avoid touching semiconductor contacts; handle by the body or mounting tab
• Verify correct replacement orientation and secure mounting; match wiring/terminal locations exactly

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
