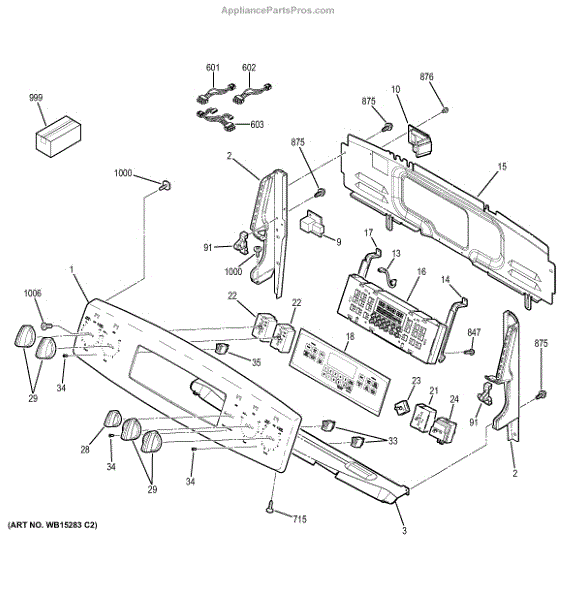

Parts for Ge JB750DF1BB: Control Panel Parts

This control board is the appliance's electronic brain. It reads keypad and sensor inputs, then switches relays to power the correct components so the unit powers on, responds to commands, and completes cycles as intended. What it does:

• Interprets user-interface inputs and sensor feedback, directing power to motors, lights, and the heating system through onboard relays
• Manages timing, sequencing, and safety interlocks during operation
• Drives the display and indicators for status and error reporting
• Common failure symptoms include a dark or flickering display, unresponsive controls, won't start or shuts off mid-cycle, intermittent operation, or clicking relays with no action

• 1 control board

• Disconnect power at the breaker or unplug before servicing; capacitors in some appliances can retain a dangerous charge—use caution
• Use ESD protection and handle the board by its edges to avoid static damage
• Photograph or label all connectors; transfer wiring one plug at a time to the new board
• After installation, verify all harnesses are fully seated; restore power and run a test cycle per the service instructions

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Burner Switch is an OEM part for GE ranges and cooktops, designed to control the heat level of the surface burners. This switch allows users to adjust the temperature of the burners for boiling, simmering, or frying.

Causes for replacement may include electrical issues within the switch, physical damage, or wear and tear from regular use. A faulty switch can lead to cooking frustrations, potential safety hazards due to uncontrolled heat, and increased energy consumption.

Symptoms of a bad Surface Burner Switch include:

• Burner not heating to the set level
• Burner heating inconsistently or not at all
• The switch feeling loose or failing to click into position

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This infinite control switch regulates power to a range or cooktop surface element so you can set and maintain the desired heat level. Replacing a worn switch restores smooth, predictable burner control from low simmer to full heat.

• Regulates power to the surface element by cycling on/off to match the selected setting
• Fixes a burner that only works on High or won't heat at all
• Addresses erratic heating or inability to adjust temperature accurately
• Restores consistent cycling for even, repeatable cooking performance

• Disconnect power at the breaker before servicing
• Remove the knob and access the switch from behind the control panel
• Note terminal positions and transfer wires one at a time to the same labeled terminals on the new switch
• Secure the switch, reassemble panels and knob, then test all heat settings

This replacement control knob restores a secure, accurate feel when setting temperatures on your cooktop or range. Swap out a worn or broken knob to regain smooth, dependable control of your appliance's settings. What it does:

• Attaches to the valve or switch stem to select Off and heat levels
• Restores positive grip and precise adjustment when turning the control
• Common symptoms: cracked or stripped knob, wobbling/loose feel, missing knob, difficulty adjusting heat
• Helps ensure consistent, repeatable burner control

• One control knob

• Disconnect power; shut off gas supply before servicing
• Pull the old knob straight off the stem—do not pry against the control panel
• Align the flat/D-shaped opening with the stem and press the new knob on fully in the Off position
• Test for smooth rotation and proper engagement

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

The Light Lens is an OEM part for GE gas ranges. It is the protective glass cover that shields the oven light on the control board.

Causes of a bad light lens include cracks, chips or breaks that compromise its protective function.

Symptoms of a bad light lens include:

• Broken or missing lens exposing the interior light bulb
• Inability to illuminate on the board
• Risk of bulb breakage from impacts or debris on the panel

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

This wire harness connects the oven/stove infinite switch to the appliance's wiring, restoring reliable control of surface burner power and heat settings. Designed to match the original harness form and terminals. What it does:

• Routes power and control signals between the infinite switch and the cooktop wiring
• Replaces damaged, burnt, or frayed wiring that can cause intermittent heat or loss of burner control
• Restores secure connector fit to prevent arcing or poor contact
• Helps resolve symptoms like burners that don't change heat levels, intermittent operation, or visible wiring damage

• Disconnect power at the breaker or unplug the appliance before beginning work
• Use proper wire connectors and ensure all terminals are fully seated; do not modify or splice unless necessary and secure
• If you see melted insulation, corrosion, or additional damage, inspect adjacent components and replace as needed

Black. 8-18 x 5/16 inch.

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

Package of 12

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
