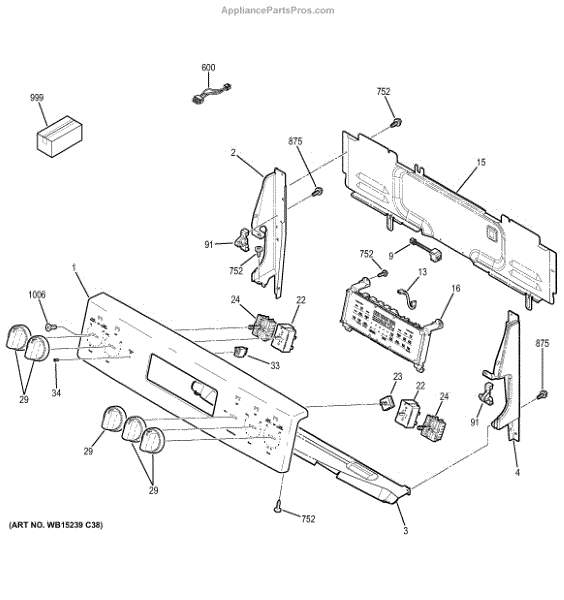

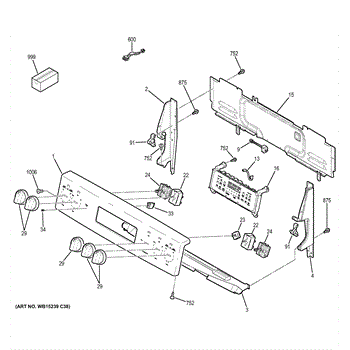

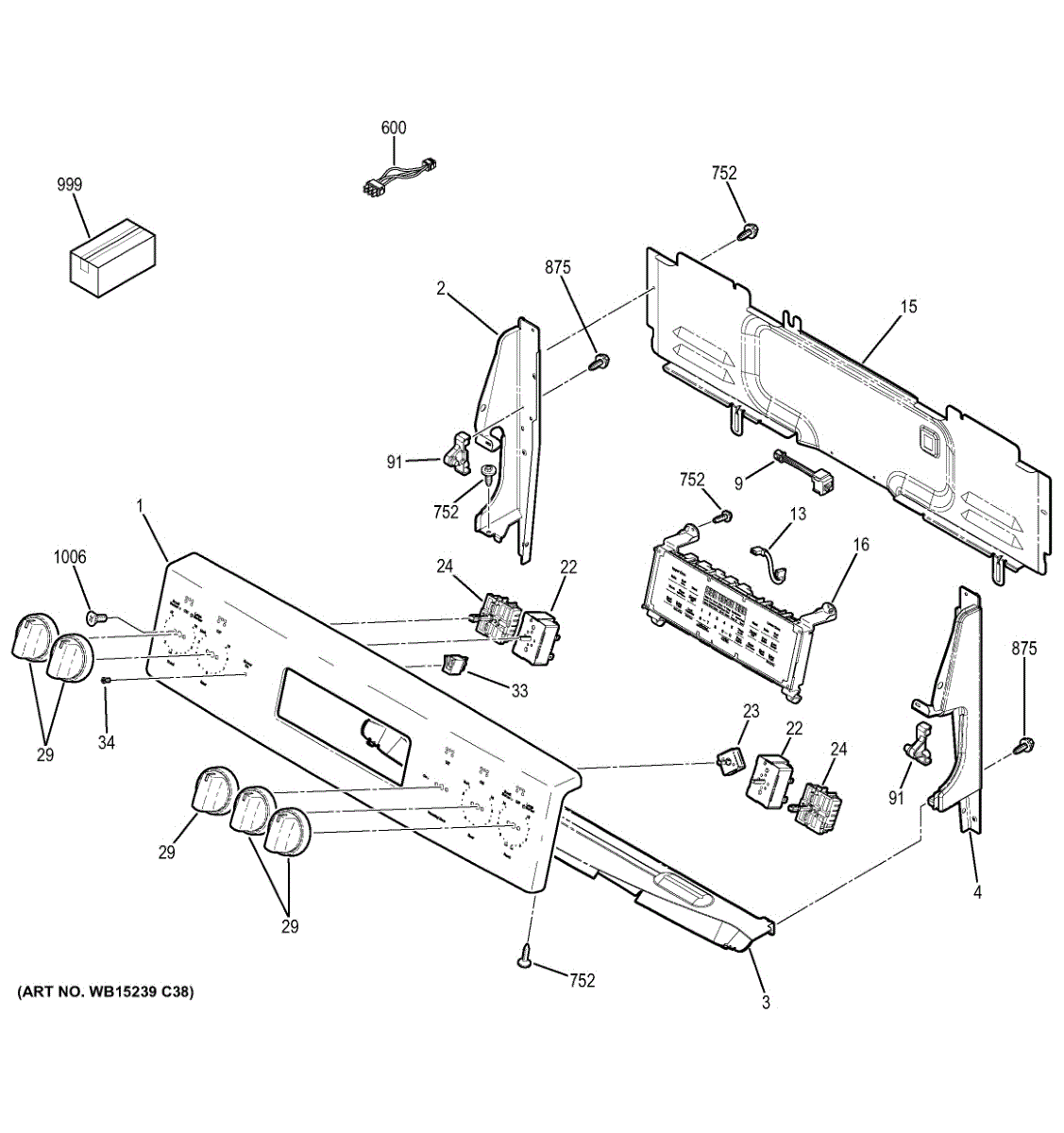

Parts for Ge JB750DJ1CC: Control Panel Parts

This electrical jumper links two terminals within the appliance's wiring to restore proper continuity for the affected circuit. Replace a burnt, damaged, or missing jumper to bring the related function back to reliable operation.

• Bridges terminals to complete or modify an electrical circuit as designed by the manufacturer
• Helps address symptoms like a specific feature not working, intermittent operation, or no power to a component
• Replace if the original shows heat damage, broken leads, or loose connections
• Direct replacement for the original jumper used in the wiring harness

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram to locate the correct jumper
• Label/photograph wire positions and transfer one connection at a time
• Ensure connectors are fully seated; do not alter the factory wiring configuration

This control cover is the replacement trim that protects and finishes the range/oven control console, restoring a clean appearance and shielding the underlying switches and electronics from spills and debris. It fits where the control panel sits and helps keep controls accessible and protected. What it does:

• Covers and protects the control console and underlying switches from spills, food, and dust
• Restores a finished appearance to a damaged, cracked, or missing control trim
• Helps prevent accidental contact with control buttons and electronic components

• One control cover

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Removal/installation typically requires basic hand tools (screwdriver) to unfasten screws or clips
• Handle edges carefully; plastic trim can have sharp edges when damaged

This electronic oven control and overlay assembly replaces the front control module and membrane overlay to restore normal oven user interface and programming. It provides the control pad and display surface used to set oven functions. What it does:

• Replaces the oven's user interface so buttons, touchpads and display respond correctly.
• Restores the ability to select bake, broil, timers and other oven functions.
• Commonly used when the display is blank, symbols or settings do not register, or pad buttons are unresponsive.
• Controls oven functions electronically; it does not include heating elements or sensors.

• Disconnect power to the appliance at the breaker or unplug before servicing.
• Handle the overlay carefully to avoid tearing or damaging the membrane; align connectors before securing.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rotary Switch is an OEM part for GE electric ranges. This switch is located on the range control panel and allows selection of various oven functions such as bake, broil, and keep warm.

Causes of a bad rotary switch can be normal wear and tear over time, exposure to heat or moisture damage, or accidental impact. Replacing it before a complete failure occurs can help prevent further issues.

Symptoms of a bad rotary switch include:

• Inability to select desired oven functions
• Switch getting stuck or failing to rotate properly
• Displays not accurately reflecting selected function
• Intermittent or unreliable operation of oven

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement infinite control knob restores precise control of a cooktop or range surface element. It gives a secure grip and clear position reference so you can adjust heat settings smoothly and confidently. What it does:

• Fits onto the range surface element infinite control shaft to select heat levels
• Replaces a stripped, cracked or missing knob that won't turn or stays loose
• Provides a clear detent/position index for accurate setting changes
• Matches OEM shape and fit for reliable operation when aligned to the control stem

• One replacement infinite control knob (BQ) as shown

• Remove power to the appliance before servicing to avoid shock or injury
• Pull off the old knob straight from the control shaft; push the new knob fully onto the stem until it seats
• If knob doesn't fully engage, ensure the control shaft and spacer are undamaged before forcing
• No special tools required for most installations; keep hands dry and use caution with sharp edges

This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

The Indicator Light Lens is an OEM component specifically designed for GE ranges. This clear plastic lens surrounds the internal cooktop indicator lights to protect the bulbs.

Causes of a damaged lens can include normal wear from regular usage as well as accidental bumps or spills on the control panel surface.

Symptoms include:

• Cracks, scratches or clouding appearing on the lens material
• The lens detaching from its mounting points
• Obscured visibility of indicator lights below

This genuine GE lens is compatible with Hotpoint, RCA, and Kenmore models too.

This harness connects the infinite (surface) switch to the cooktop's wiring, restoring proper power and control to a single burner. Use when a burner doesn't respond or the switch wiring is damaged. What it does:

• Provides a secure plug-and-play connection between the infinite switch and appliance wiring
• Restores electrical continuity so the burner can heat and adjust across all settings
• Commonly replaces frayed, melted, or burnt switch wiring that causes intermittent or no heat
• Matches OEM terminals and routing to maintain safe operation

• Disconnect power at the breaker before accessing the cooktop to avoid shock
• Replace only with the exact harness; confirm terminal fit and routing before final assembly
• Handle terminals carefully to avoid bending pins; secure wiring away from hot components

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
