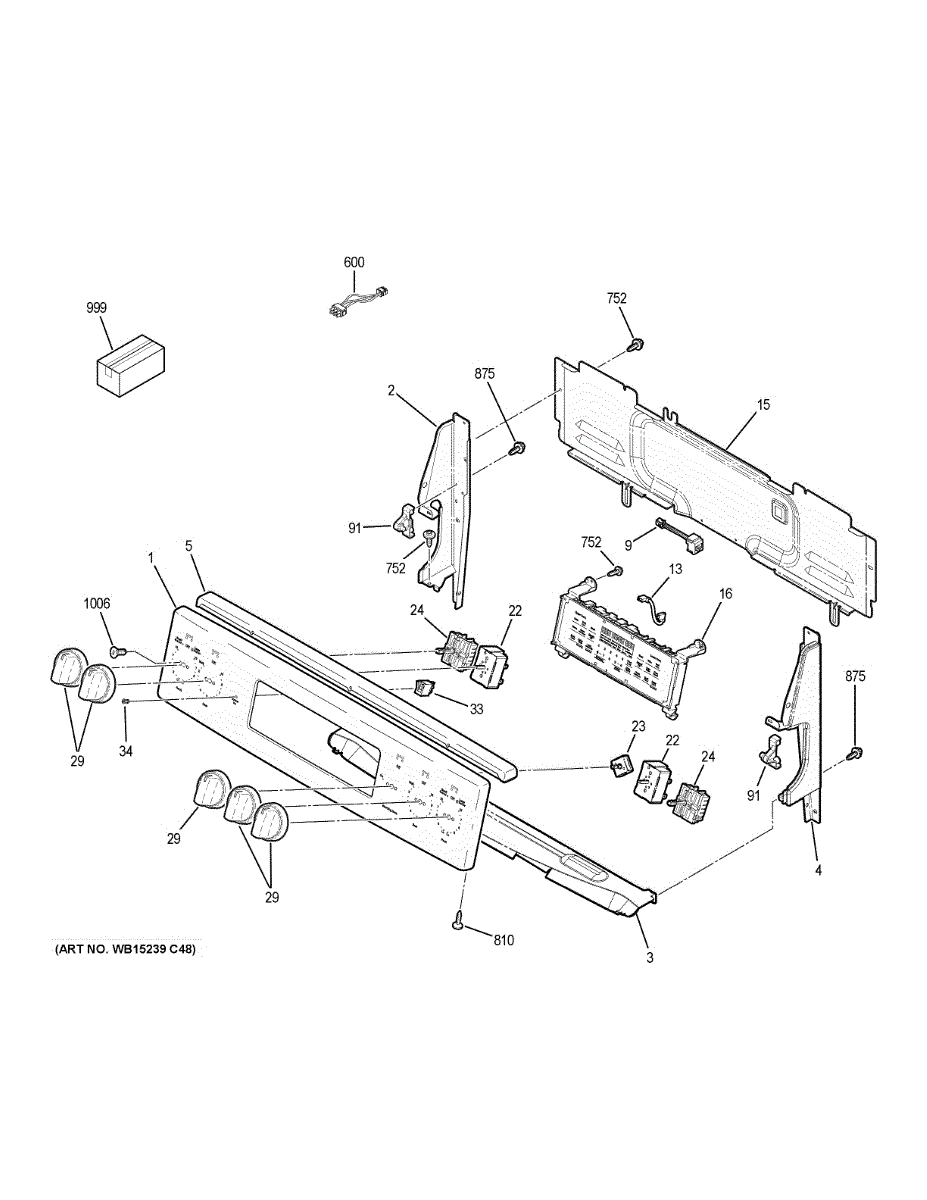

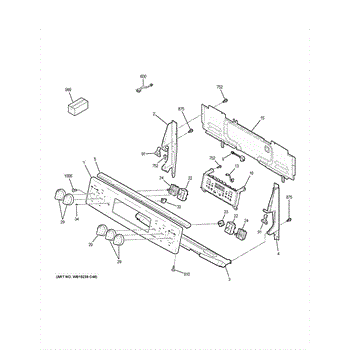

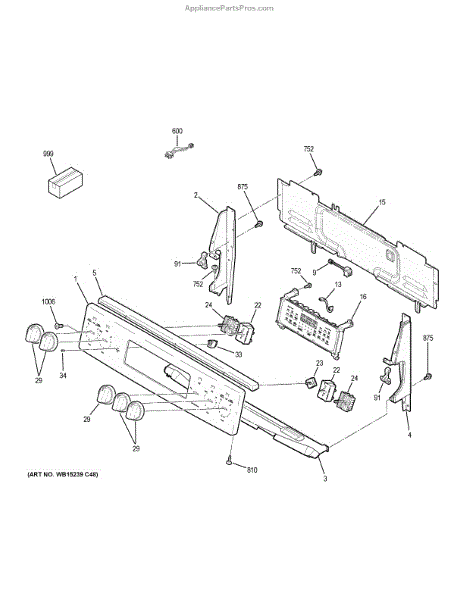

Parts for Ge JB750FJ4DS: Control Panel Parts

The control panel End Plate (Left) is an OEM part for GE electric ranges. It forms a barrier along the back left edge of the control panel area providing structural reinforcement and protection.

Over time, end plates can sustain damage due to normal wear and tear of using range buttons/dials daily as well as impacts from accidental bumps. Causes may include operation fatigue plus occasional mishandling.

Causes of a bad end plate include:

• Dents, scratches or cracks in the protective barrier surface
• Loosened mounting fasteners holding it securely
• Reduced control panel integrity and rigidity over long use
• Exposure of fragile internal electronics to potential damage

This exact GE replacement part also fits Hotpoint, RCA and select Kenmore models.

Right-hand end panel for electric ranges. Covers and protects the side of your range. Replace if cracked, scratched, or damaged for a clean appearance.

Front edge trim that covers the gap between your range cooktop and control panel. Replaces cracked, chipped, or missing trim for a finished look.

If your range or oven has a circuit not working or intermittent function, this electrical jumper wire bridges terminals to restore proper continuity.

This control cover is the replacement trim that protects and finishes the range/oven control console, restoring a clean appearance and shielding the underlying switches and electronics from spills and debris. It fits where the control panel sits and helps keep controls accessible and protected. What it does:

• Covers and protects the control console and underlying switches from spills, food, and dust
• Restores a finished appearance to a damaged, cracked, or missing control trim
• Helps prevent accidental contact with control buttons and electronic components

• One control cover

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Removal/installation typically requires basic hand tools (screwdriver) to unfasten screws or clips
• Handle edges carefully; plastic trim can have sharp edges when damaged

Fix a non-responsive oven control panel with this range control and overlay assembly. Restores clock, timer, and oven temperature controls. Moderate DIY repair.

Burner won't adjust temperature or stuck on high? This surface burner control switch restores heat control. Quick 10-minute fix with basic tools.

Fixes range not heating or oven functions not working. This rotary switch controls bake, broil, and keep warm settings from the control panel.

Control knob assembly for electric ranges. Attaches to the control panel to adjust burner settings. Replace if cracked, broken, or missing.

Range indicator light signals when heating elements are active. Replace when light fails to illuminate or is damaged to restore visibility and safety.

Fix a dim or unprotected oven light with this range light lens. Replaces cracked or broken protective glass covers. Simple 10-minute installation.

Burner not responding to control knob? This harness restores power between the switch and element wiring. Quick plug-and-play connection repair.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This silicon controlled rectifier (SCR) is a replacement power-control semiconductor that helps regulate heating or motor circuits in compatible appliances. Restores controlled switching for stable operation and consistent performance. What it does:

• Controls power delivery to heating elements or motors by switching current on and off
• Helps correct symptoms such as intermittent heating, burners or motors that won't respond, or erratic operation
• Replaces a failed or shorted SCR to restore proper control functionality
• Operates as part of the appliance's control/regulator circuitry to manage current flow safely

• Disconnect power (unplug appliance or switch off circuit breaker) before servicing
• Observe ESD precautions and avoid touching semiconductor contacts; handle by the body or mounting tab
• Verify correct replacement orientation and secure mounting; match wiring/terminal locations exactly

Black. 8-18 AB HXW 3/8
