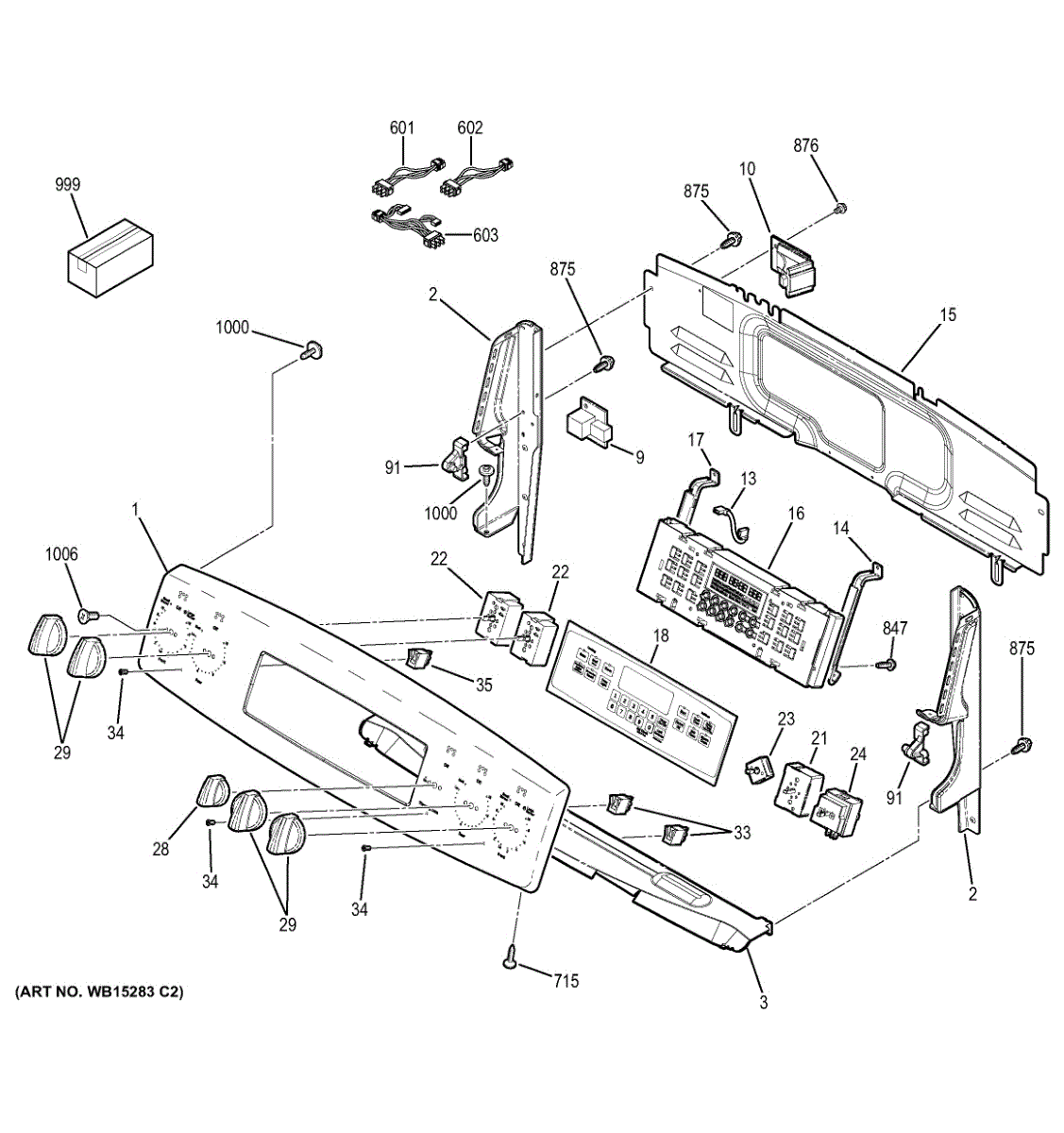

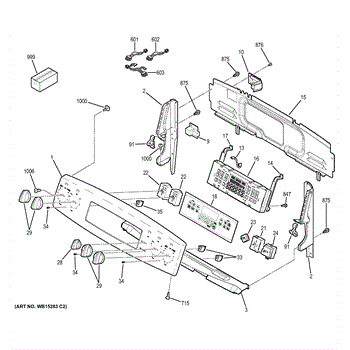

Parts for Ge JB750SF1SS: Control Panel Parts

Black endcap for electric range. Covers and finishes the edge of the cooktop surface. Replace if cracked, broken, discolored, or missing for a clean look.

Endcap for electric ranges. Covers and protects the end of the control panel or handle assembly. Replace if cracked, broken, or missing for a finished look.

If your range or oven has a circuit not working or intermittent function, this electrical jumper wire bridges terminals to restore proper continuity.

This control board is the appliance's electronic brain. It reads keypad and sensor inputs, then switches relays to power the correct components so the unit powers on, responds to commands, and completes cycles as intended. What it does:

• Interprets user-interface inputs and sensor feedback, directing power to motors, lights, and the heating system through onboard relays
• Manages timing, sequencing, and safety interlocks during operation
• Drives the display and indicators for status and error reporting
• Common failure symptoms include a dark or flickering display, unresponsive controls, won't start or shuts off mid-cycle, intermittent operation, or clicking relays with no action

• 1 control board

• Disconnect power at the breaker or unplug before servicing; capacitors in some appliances can retain a dangerous charge—use caution
• Use ESD protection and handle the board by its edges to avoid static damage
• Photograph or label all connectors; transfer wiring one plug at a time to the new board
• After installation, verify all harnesses are fully seated; restore power and run a test cycle per the service instructions

Burner won't adjust temperature or stuck on high? This surface burner control switch restores heat control. Quick 10-minute fix with basic tools.

Burner won't turn off or stays on when set to off? This surface burner infinite switch controls heat levels. Takes 10-15 minutes to replace.

Fixes burner stuck on high, won't heat, or uneven heating. This infinite switch regulates surface element power for precise temperature control.

Control knob assembly for range burner or oven temperature settings. Replaces cracked, broken, or missing knobs that no longer grip or turn properly.

Replace a cracked, stripped, or missing control knob on your electric range. This knob assembly fits the control shaft to restore smooth temperature settings.

Pilot indicator light mounts in the control panel and illuminates when a surface element or heating circuit is powered. Replace if burned out or stuck on.

Fix a dim or unprotected oven light with this range light lens. Replaces cracked or broken protective glass covers. Simple 10-minute installation.

Range indicator light signals when heating elements are active. Replace when light fails to illuminate or is damaged to restore visibility and safety.

This wire harness connects the oven/stove infinite switch to the appliance's wiring, restoring reliable control of surface burner power and heat settings. Designed to match the original harness form and terminals. What it does:

• Routes power and control signals between the infinite switch and the cooktop wiring
• Replaces damaged, burnt, or frayed wiring that can cause intermittent heat or loss of burner control
• Restores secure connector fit to prevent arcing or poor contact
• Helps resolve symptoms like burners that don't change heat levels, intermittent operation, or visible wiring damage

• Disconnect power at the breaker or unplug the appliance before beginning work
• Use proper wire connectors and ensure all terminals are fully seated; do not modify or splice unless necessary and secure
• If you see melted insulation, corrosion, or additional damage, inspect adjacent components and replace as needed

Black. 8-18 x 5/16 inch.

6-20 x 3/8 inch nickel screw secures trim panels, brackets, and small components in dishwashers and ovens. Replace missing or stripped screws.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
