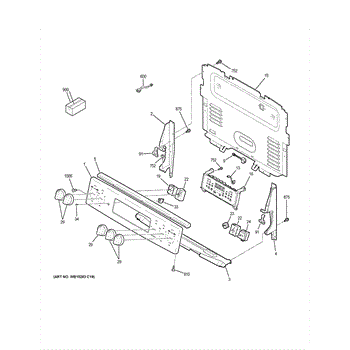

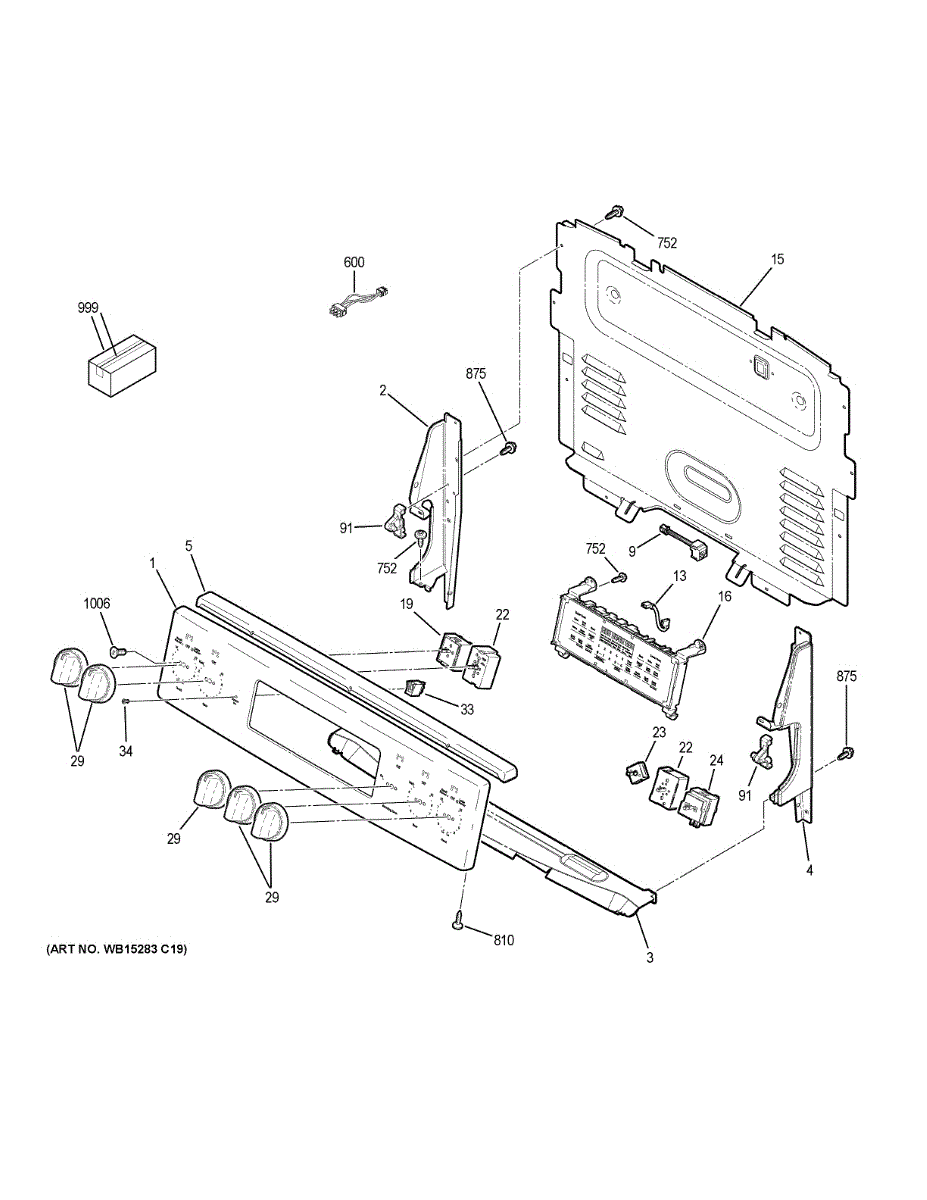

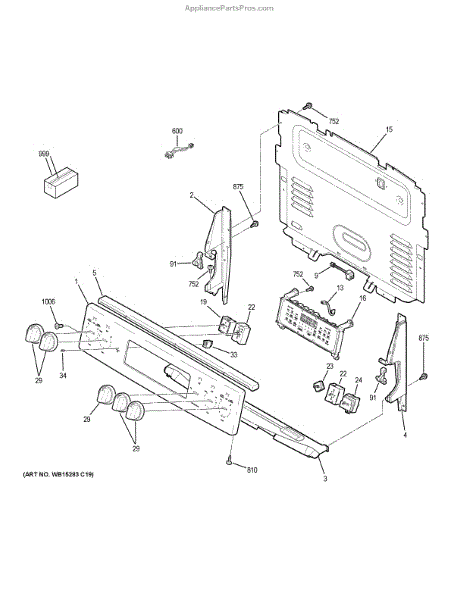

Parts for Ge JB755BJ6TS: Control Panel Parts

The control panel End Plate (Left) is an OEM part for GE electric ranges. It forms a barrier along the back left edge of the control panel area providing structural reinforcement and protection.

Over time, end plates can sustain damage due to normal wear and tear of using range buttons/dials daily as well as impacts from accidental bumps. Causes may include operation fatigue plus occasional mishandling.

Causes of a bad end plate include:

• Dents, scratches or cracks in the protective barrier surface
• Loosened mounting fasteners holding it securely
• Reduced control panel integrity and rigidity over long use
• Exposure of fragile internal electronics to potential damage

This exact GE replacement part also fits Hotpoint, RCA and select Kenmore models.

This top trim assembly replaces the finished edge piece that fits along the front of the cooktop, restoring a clean, finished appearance and covering the gap between the cooktop and control panel. It helps prevent debris from falling into internal areas. What it does:

• Covers and protects the front edge of the cooktop, improving appearance
• Hides gaps where food and spills can collect, making cleaning easier
• Helps maintain proper spacing and alignment of the cooktop edge
• Common fix for bent, dented, or cosmetically damaged top trim

• One top trim assembly

• Disconnect power to the appliance before beginning any work to avoid shock hazard
• Remove burners, grates, or cooktop components as needed for access; parts and fasteners may vary by model
• Handle trim carefully—edges can be sharp and panels may scratch; use protective gloves

This electrical jumper links two terminals within the appliance's wiring to restore proper continuity for the affected circuit. Replace a burnt, damaged, or missing jumper to bring the related function back to reliable operation.

• Bridges terminals to complete or modify an electrical circuit as designed by the manufacturer
• Helps address symptoms like a specific feature not working, intermittent operation, or no power to a component
• Replace if the original shows heat damage, broken leads, or loose connections
• Direct replacement for the original jumper used in the wiring harness

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram to locate the correct jumper
• Label/photograph wire positions and transfer one connection at a time
• Ensure connectors are fully seated; do not alter the factory wiring configuration

The Oven Control and Overlay Assembly is an OEM part for GE ranges. It houses the user interface including tactile buttons, digital displays and overlay protection.

Common causes involve heat and normal contact stresses gradually deteriorating the overlay quality over time. Periodic replacement preserves both cosmetic and protective qualities

Symptoms of a failing control overlay include:

• Scratches or discoloration detracting from appearance
• Peeling or bubbling material integrity issues
• Exposure of internal electronics to potential damage

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rotary Switch is an OEM part for GE electric ranges. This switch is located on the range control panel and allows selection of various oven functions such as bake, broil, and keep warm.

Causes of a bad rotary switch can be normal wear and tear over time, exposure to heat or moisture damage, or accidental impact. Replacing it before a complete failure occurs can help prevent further issues.

Symptoms of a bad rotary switch include:

• Inability to select desired oven functions
• Switch getting stuck or failing to rotate properly
• Displays not accurately reflecting selected function
• Intermittent or unreliable operation of oven

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Switch Control is an OEM component specially designed for GE slide-in electric ranges. Located at the center of the control panel, this switch regulates power to the infinite-style surface heating elements.

Causes of a bad infinite switch control include worn or defective internal contact positions, damaged plastic body from appliance abuse, or disconnected wiring connections.

Symptoms of a bad infinite switch control include:

• Inability to adjust burner temperature settings properly
• Flames remain lit on infinite elements despite adjustments
• Elements failing to power on or heat as expected
• Control switch stuck in a single position

As a high-use component, switch mechanisms endure continuous cycling that can lead to degradation. This genuine GE replacement provides a precise power regulation solution. Compatible GE slide-in ranges include Monogram, Café, and select KitchenAid built-in electric models.


This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This silicon controlled rectifier (SCR) is a replacement power-control semiconductor that helps regulate heating or motor circuits in compatible appliances. Restores controlled switching for stable operation and consistent performance. What it does:

• Controls power delivery to heating elements or motors by switching current on and off
• Helps correct symptoms such as intermittent heating, burners or motors that won't respond, or erratic operation
• Replaces a failed or shorted SCR to restore proper control functionality
• Operates as part of the appliance's control/regulator circuitry to manage current flow safely

• Disconnect power (unplug appliance or switch off circuit breaker) before servicing
• Observe ESD precautions and avoid touching semiconductor contacts; handle by the body or mounting tab
• Verify correct replacement orientation and secure mounting; match wiring/terminal locations exactly

Black. 8-18 AB HXW 3/8
