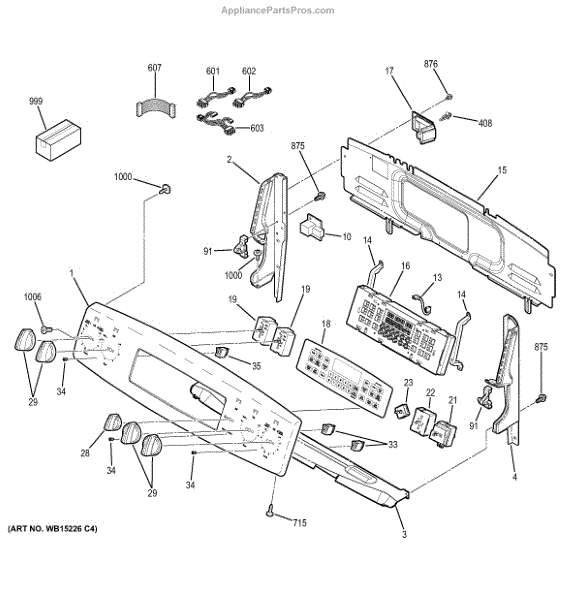

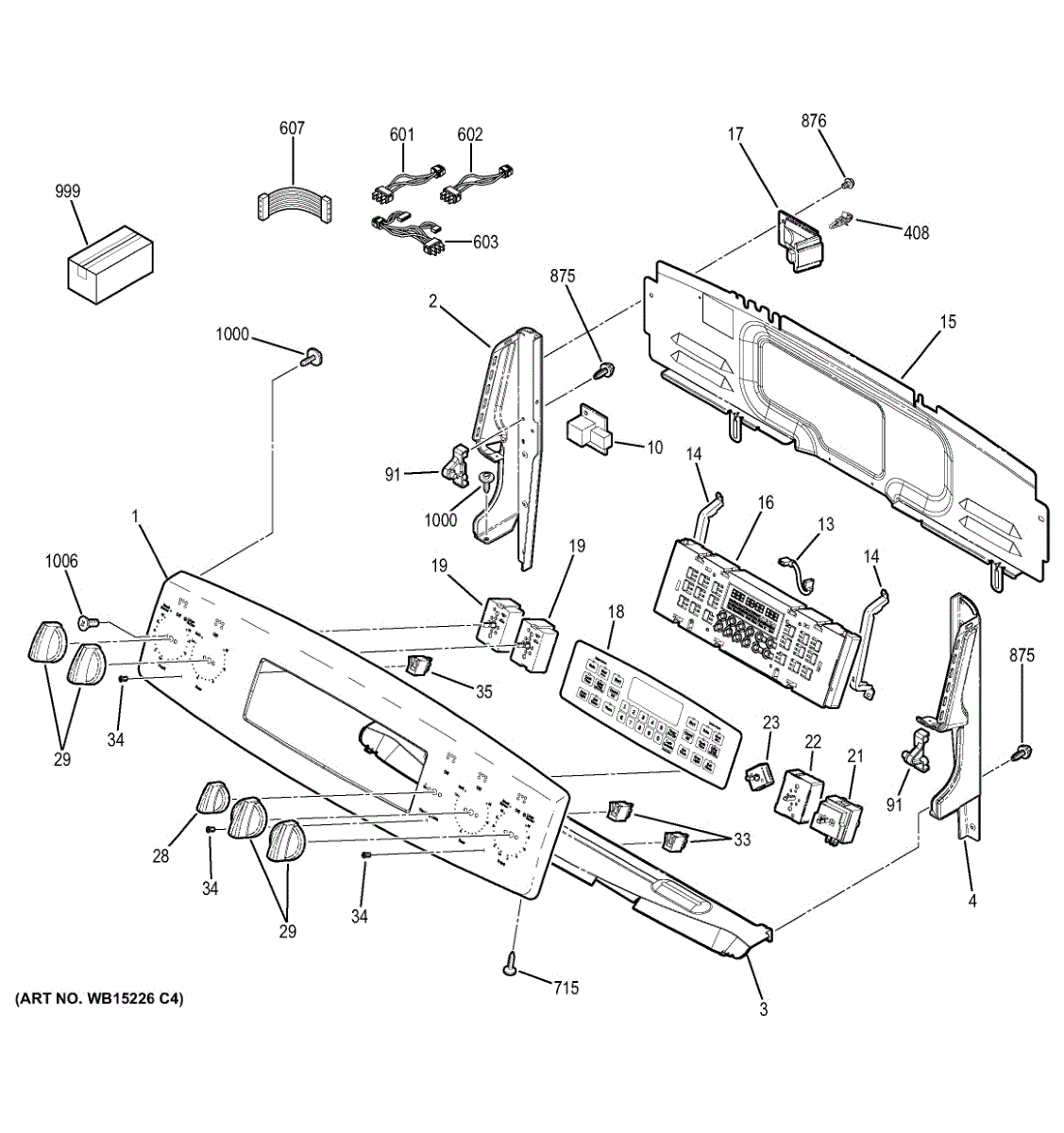

Parts for Ge JB870DF3BB: Control Panel Parts

Endcap for electric ranges. Covers and protects the end of the control panel or handle assembly. Replace if cracked, broken, or missing for a finished look.

Black endcap for electric range. Covers and finishes the edge of the cooktop surface. Replace if cracked, broken, discolored, or missing for a clean look.

Control panel housing assembly for cooktops and ranges. Replaces cracked, broken, or damaged housing that protects control interface components.

If your range or oven has a circuit not working or intermittent function, this electrical jumper wire bridges terminals to restore proper continuity.

Control panel housing assembly for cooktops and ranges. Replaces cracked, broken, or damaged housing that protects control interface components.

Printed overlay that replaces worn, faded, or scratched control panel graphics. Restores button and label legibility for a clean, readable appearance.

Burner won't turn off or stays on when set to off? This surface burner infinite switch controls heat levels. Takes 10-15 minutes to replace.

Fixes burner stuck on high, won't heat, or uneven heating. This infinite switch regulates surface element power for precise temperature control.

Burner won't adjust temperature or stuck on high? This surface burner control switch restores heat control. Quick 10-minute fix with basic tools.

Replace a worn, cracked, or missing control knob on your electric range cooktop. This knob attaches to the valve stem to adjust burner heat settings.

Pilot indicator light mounts in the control panel and illuminates when a surface element or heating circuit is powered. Replace if burned out or stuck on.

Clear protective lens for range indicator lights. Replace when cracked, discolored, or missing to restore visibility of cooktop status lights. Verify fit with your range model number.

Range indicator light signals when heating elements are active. Replace when light fails to illuminate or is damaged to restore visibility and safety.

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

Plastic standoff that secures and spaces the control board from the chassis. Replace if broken, missing, or worn to restore proper board mounting and insulation.

This wire harness connects the oven/stove infinite switch to the appliance's wiring, restoring reliable control of surface burner power and heat settings. Designed to match the original harness form and terminals. What it does:

• Routes power and control signals between the infinite switch and the cooktop wiring
• Replaces damaged, burnt, or frayed wiring that can cause intermittent heat or loss of burner control
• Restores secure connector fit to prevent arcing or poor contact
• Helps resolve symptoms like burners that don't change heat levels, intermittent operation, or visible wiring damage

• Disconnect power at the breaker or unplug the appliance before beginning work
• Use proper wire connectors and ensure all terminals are fully seated; do not modify or splice unless necessary and secure
• If you see melted insulation, corrosion, or additional damage, inspect adjacent components and replace as needed

Black mounting screw for dishwashers and ranges. Replaces lost, stripped, or damaged screws during appliance repair or panel reinstallation. 8-18 x 5/16 inch.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Hex head screws for securing panels and components in ranges and ovens. Replace missing, stripped, or corroded fasteners during repairs or reassembly.

Silicon controlled rectifier for cooktop power control. Includes 8-32 mounting screw. Replace if damaged, corroded, or missing to restore proper installation.
