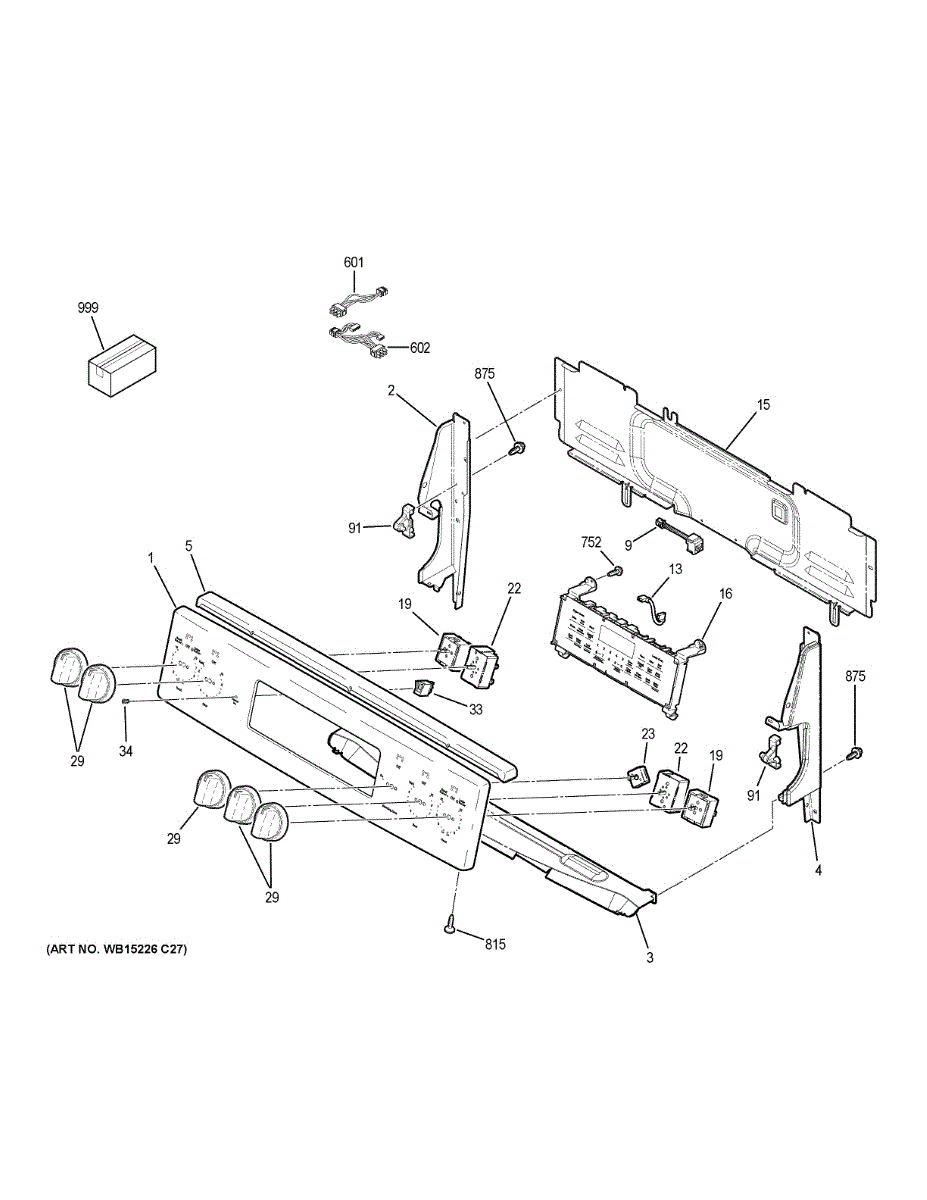

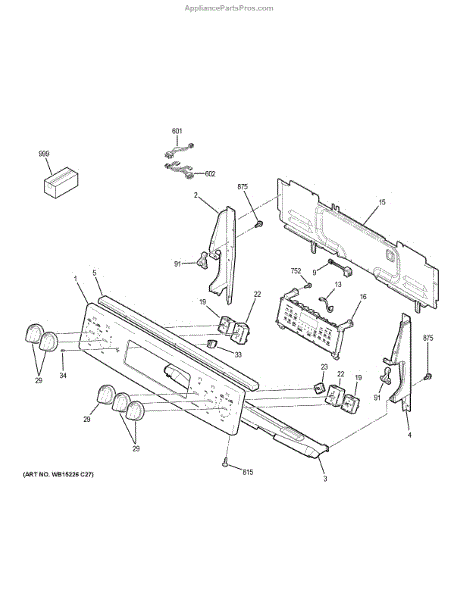

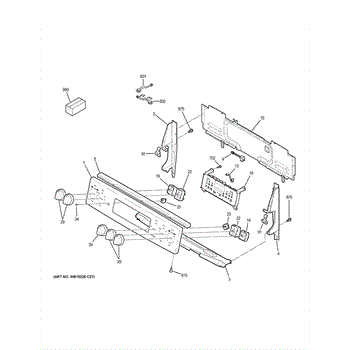

Parts for Ge JCB865SJ8SS: Control Panel Parts

This trim control assembly replaces the stainless-steel trim piece on the appliance control console to restore a finished appearance and proper fit around the control area. It helps protect the control panel and keeps the front looking straight and finished. What it does:

• Provides the stainless-steel trim surrounding the control console for a factory-finish look
• Covers and protects the control edges from spills, dings, and wear
• Restores alignment when original trim is bent, dented, or loose
• Helps prevent debris from entering gaps around the control area

• One stainless-steel trim control assembly

• Disconnect power to the appliance before beginning any work to avoid shock
• Replacement typically requires removing the control console or backguard; retain screws and hardware
• Handle the stainless trim carefully to avoid cosmetic damage and to align clips/screw holes before fastening

The control panel End Plate (Left) is an OEM part for GE electric ranges. It forms a barrier along the back left edge of the control panel area providing structural reinforcement and protection.

Over time, end plates can sustain damage due to normal wear and tear of using range buttons/dials daily as well as impacts from accidental bumps. Causes may include operation fatigue plus occasional mishandling.

Causes of a bad end plate include:

• Dents, scratches or cracks in the protective barrier surface
• Loosened mounting fasteners holding it securely
• Reduced control panel integrity and rigidity over long use
• Exposure of fragile internal electronics to potential damage

This exact GE replacement part also fits Hotpoint, RCA and select Kenmore models.

This top trim assembly replaces the finished edge piece that fits along the front of the cooktop, restoring a clean, finished appearance and covering the gap between the cooktop and control panel. It helps prevent debris from falling into internal areas. What it does:

• Covers and protects the front edge of the cooktop, improving appearance
• Hides gaps where food and spills can collect, making cleaning easier
• Helps maintain proper spacing and alignment of the cooktop edge
• Common fix for bent, dented, or cosmetically damaged top trim

• One top trim assembly

• Disconnect power to the appliance before beginning any work to avoid shock hazard
• Remove burners, grates, or cooktop components as needed for access; parts and fasteners may vary by model
• Handle trim carefully—edges can be sharp and panels may scratch; use protective gloves

This electrical jumper links two terminals within the appliance's wiring to restore proper continuity for the affected circuit. Replace a burnt, damaged, or missing jumper to bring the related function back to reliable operation.

• Bridges terminals to complete or modify an electrical circuit as designed by the manufacturer
• Helps address symptoms like a specific feature not working, intermittent operation, or no power to a component
• Replace if the original shows heat damage, broken leads, or loose connections
• Direct replacement for the original jumper used in the wiring harness

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram to locate the correct jumper
• Label/photograph wire positions and transfer one connection at a time
• Ensure connectors are fully seated; do not alter the factory wiring configuration

This control cover is the replacement trim that protects and finishes the range/oven control console, restoring a clean appearance and shielding the underlying switches and electronics from spills and debris. It fits where the control panel sits and helps keep controls accessible and protected. What it does:

• Covers and protects the control console and underlying switches from spills, food, and dust
• Restores a finished appearance to a damaged, cracked, or missing control trim
• Helps prevent accidental contact with control buttons and electronic components

• One control cover

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Removal/installation typically requires basic hand tools (screwdriver) to unfasten screws or clips
• Handle edges carefully; plastic trim can have sharp edges when damaged

The Control Board and Overlay is an OEM replacement part for GE ranges and ovens. It serves as the central control unit, responsible for regulating and managing various functions of the appliance.

Symptoms of a bad control board include:

• The oven or range not turning on or responding to inputs
• Displays or lights not functioning properly
• Erratic or inconsistent temperature control
• Failure of specific cooking modes or features

Causes of a bad control board can include electrical surges, power outages, water damage, or general wear and tear over time. The overlay is the user interface that protects the control board while providing access to buttons and displays.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rotary Switch is an OEM part for GE electric ranges. This switch is located on the range control panel and allows selection of various oven functions such as bake, broil, and keep warm.

Causes of a bad rotary switch can be normal wear and tear over time, exposure to heat or moisture damage, or accidental impact. Replacing it before a complete failure occurs can help prevent further issues.

Symptoms of a bad rotary switch include:

• Inability to select desired oven functions
• Switch getting stuck or failing to rotate properly
• Displays not accurately reflecting selected function
• Intermittent or unreliable operation of oven

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement control knob fits the surface burner's infinite switch on compatible ranges and cooktops. It restores smooth on/off operation and precise heat selection while refreshing the appliance's appearance.

• Attaches to the surface element's infinite switch to select OFF through HI settings
• Restores ability to turn the burner on/off and adjust heat levels accurately
• Ideal replacement for knobs that are cracked, stripped, loose, missing, or hard to turn
• Helps ensure the indicator aligns properly with the control panel markings

• Disconnect power and allow all burners to cool before servicing
• Pull the old knob straight off the switch shaft; do not pry against the control panel
• Align the new knob with the shaft and OFF position, then push straight on until fully seated
• Restore power and test each setting for proper engagement and alignment

This indicator light is a small panel-mounted lamp that illuminates to show when a heating circuit is active. Replacing a failed indicator restores a clear visual cue so you know when the appliance is operating. What it does

• Lights when the corresponding function or element is energized
• Provides a visual status cue during operation
• Common symptoms: light won't come on, stays on continuously, flickers or is dim, or shows physical damage

• One indicator light assembly

• Disconnect power at the breaker before servicing
• Access the rear of the console/control area; note wire positions and transfer one at a time
• Secure the new light in the panel opening per design (snap-in or nut-mounted)
• Restore power and test operation before reassembly

The Indicator Light Lens is an OEM component specifically designed for GE ranges. This clear plastic lens surrounds the internal cooktop indicator lights to protect the bulbs.

Causes of a damaged lens can include normal wear from regular usage as well as accidental bumps or spills on the control panel surface.

Symptoms include:

• Cracks, scratches or clouding appearing on the lens material
• The lens detaching from its mounting points
• Obscured visibility of indicator lights below

This genuine GE lens is compatible with Hotpoint, RCA, and Kenmore models too.

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

This harness connects the infinite (surface) switch to the cooktop's wiring, restoring proper power and control to a single burner. Use when a burner doesn't respond or the switch wiring is damaged. What it does:

• Provides a secure plug-and-play connection between the infinite switch and appliance wiring
• Restores electrical continuity so the burner can heat and adjust across all settings
• Commonly replaces frayed, melted, or burnt switch wiring that causes intermittent or no heat
• Matches OEM terminals and routing to maintain safe operation

• Disconnect power at the breaker before accessing the cooktop to avoid shock
• Replace only with the exact harness; confirm terminal fit and routing before final assembly
• Handle terminals carefully to avoid bending pins; secure wiring away from hot components

This silicon controlled rectifier (SCR) is a replacement power-control semiconductor that helps regulate heating or motor circuits in compatible appliances. Restores controlled switching for stable operation and consistent performance. What it does:

• Controls power delivery to heating elements or motors by switching current on and off
• Helps correct symptoms such as intermittent heating, burners or motors that won't respond, or erratic operation
• Replaces a failed or shorted SCR to restore proper control functionality
• Operates as part of the appliance's control/regulator circuitry to manage current flow safely

• Disconnect power (unplug appliance or switch off circuit breaker) before servicing
• Observe ESD precautions and avoid touching semiconductor contacts; handle by the body or mounting tab
• Verify correct replacement orientation and secure mounting; match wiring/terminal locations exactly
