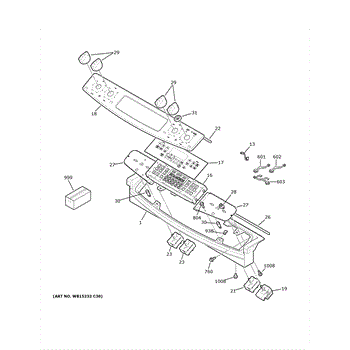

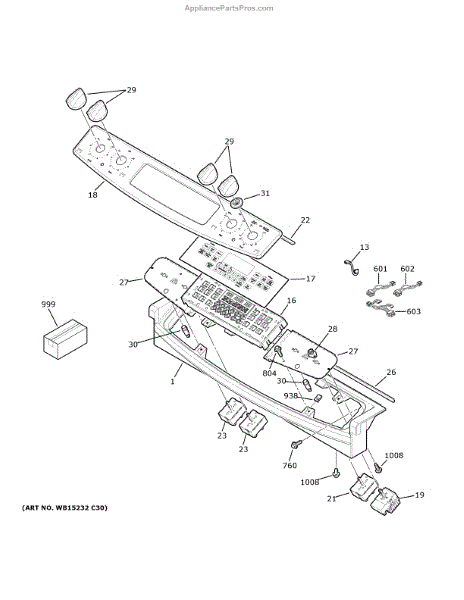

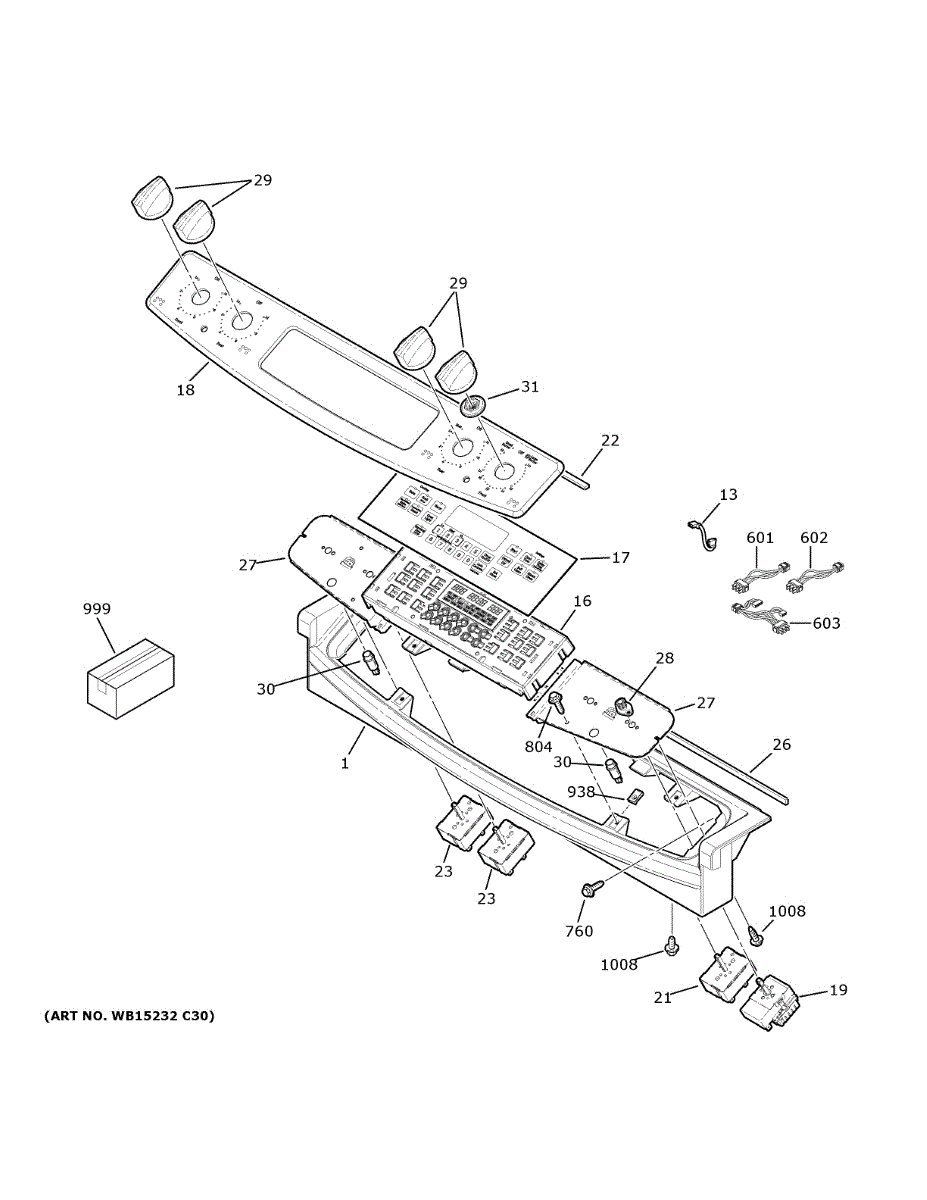

Parts for Ge JD630SF9SS: Control Panel Parts

Parts for Ge JD630SF9SS: Control Panel Parts

Location on Diagram
Part Description
Price & Availability
1
Product photo
5.0 (1)
By: Ge
Part Number: WB36T10666

Replaces the front control panel on your range when cracked, loose, or control markings are worn or unreadable. Restores a secure, clearly labeled surface.

More
$120.95

IN STOCK
Ships Today Guaranteed
Add to Cart
13
By: Ge
Part Number: WB18X30704

If your range or oven has a circuit not working or intermittent function, this electrical jumper wire bridges terminals to restore proper continuity.

More
$7.95

IN STOCK
Ships Today Guaranteed
Add to Cart
17
By: Ge
Part Number: WB07X26752

Gray printed faceplate overlay for range control panels. Restores clear button labels and icons when original graphics are worn, peeling, or damaged.

More
$26.21

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
18
Best Seller
Product photo
By: Ge
Part Number: WB07X26753

Restores printed labels and markings on your range control console. Replace when overlay is cracked, peeling, faded, or worn for clear button identification.

More
$135.65

IN STOCK
Ships Today Guaranteed
Add to Cart
19
5.0 (2)
By: Ge
Part Number: WB24X47189
$33.95

IN STOCK
Ships Today Guaranteed
Add to Cart
22
Product photo
5.0 (2)
By: Ge
Part Number: WB02X10744

Seals your electric range faceplate to prevent moisture, dust, and debris from entering. Replace when worn or damaged to restore a snug fit. Confirm fit.

More
$6.39

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
27
By: Ge
Part Number: WB27X20071
$12.46

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
27
By: Ge
Part Number: WB27X20070

Replace your cracked or faded control panel insert to restore your range's appearance and protect controls. Trim piece allows panel lighting through. Verify fit with your model number before ordering.

More
$7.50

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
29
Best Seller
Product photo
By: Ge
Part Number: WB03T10337

Replace a cracked, stripped, or missing control knob on your electric range. This knob assembly fits the control shaft to restore smooth temperature settings.

More
$35.95

IN STOCK
Ships Today Guaranteed
Add to Cart
30
Product photo
By: Ge
Part Number: WB25T10056

Indicator light for range control panels. Illuminates to show when burners or functions are active. Replace when dim, flickering, or burned out. Verify fit with your model number.

More
$8.95

IN STOCK
Ships Today Guaranteed
Add to Cart
601
By: Ge
Part Number: WB18X35485

This wire harness connects the infinite burner control to the cooktop's wiring, restoring proper electrical routing for surface element regulation. It replaces a damaged or worn harness to help re-establish safe, reliable burner control. What it does:

  • Provides the correct wiring connection between the infinite switch and cooktop terminals.
  • Restores electrical continuity when a frayed, burned, or disconnected harness prevents burner operation.
  • Helps eliminate intermittent or no-heat symptoms caused by broken wires or loose terminals.
  • Maintains OEM routing and connector fit for consistent control response.
What's included:
  • One wire harness for infinite control (exact OEM configuration)
Install notes:
  • Disconnect all power to the range at the breaker before starting work.
  • Handle connectors gently; use proper tools to release terminals without bending.
  • Verify proper connector seating and secure routing away from heat sources before restoring power.
  • If terminals or the infinite switch show damage, replace the affected components as recommended.

More
$28.63

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
602
By: Ge
Part Number: WB18X32775

Control wire harness for electric ranges. Connects control components to power supply. Replace if wires are frayed, damaged, or connections are loose.

More
$35.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
603
By: Ge
Part Number: WB18X32776

If your range burner won't heat or cycles incorrectly, the infinite switch harness may need replacement. This wiring harness connects the control switch to the heating element.

More
$48.46

IN STOCK
Ships Today Guaranteed
Add to Cart
