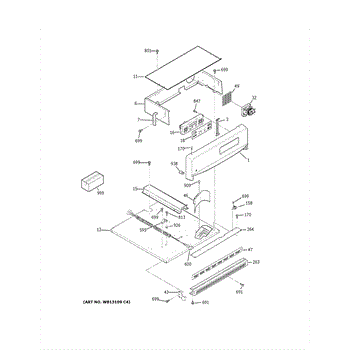

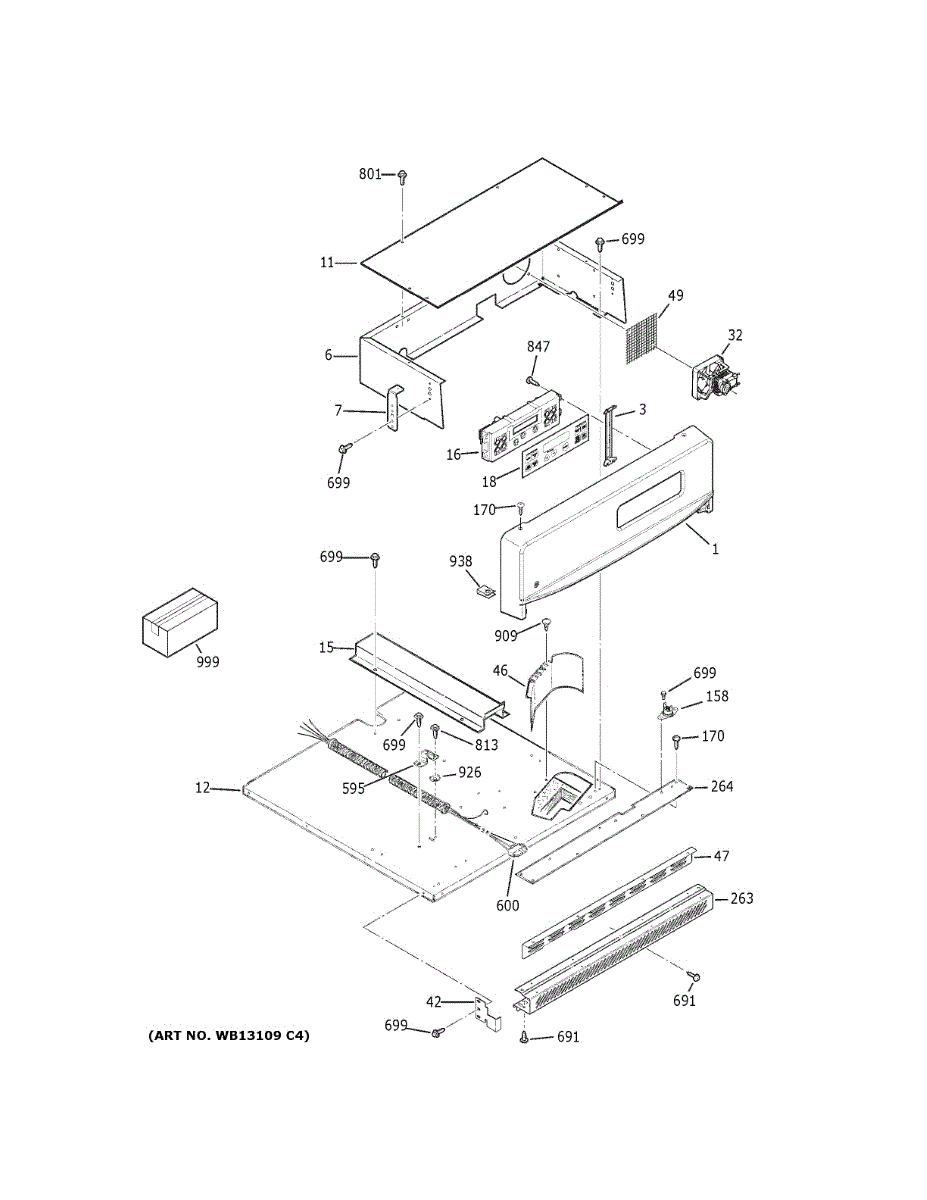

Parts for Ge JRP20WJ3WW: Control Panel Parts

The Oven Control Board is an OEM part for GE ranges. It is an important electronic component that is responsible for monitoring and regulating all oven functions including bake, broil, convection, temperature probes, preheat indicator lights, clock, and timers.

Symptoms of a bad oven control board include:

• Oven failing to heat or cook food properly
• Inaccurate or fluctuating temperature readings
• Control locks or buttons not working as expected
• Timers or clocks not keeping time
• Pre-heat light not illuminating

Causes of failure can include water damage, circuitry issues, component degradation over time, or surges that disrupt electrical signals.

This OEM GE replacement board ensures consistent and reliable oven operation. It restores full functionality to critical baking and cooking systems. This part is also compatible with Hotpoint, RCA, and select Kenmore range models.

The Graphics Assembly is an OEM part for GE wall ovens. Located at the front of the appliance, it serves an important cosmetic and protective function covering the control panel area.

Causes of a bad graphics assembly can include normal wear and tear over time from heat exposure and general use in the kitchen. Impact or handling damage during cleaning or maintenance may also affect parts.

Symptoms of needing replacement include:

• Cracked or peeling graphics
• Loose or deteriorating mounting clips
• Discoloration or charring of the surface
• Missing buttons or graphics on the faceplate

This GE replacement faceplate is also compatible with Hotpoint, RCA and some Kenmore wall oven models.

Keep your oven's cooling or convection fan safe from debris and contact with loose items. This round mesh guard provides a simple barrier that helps maintain airflow while protecting the fan blade from damage and blockages. What it does:

• Shields the fan blade from loose debris, pans, or dropped food that can cause blades to bend or break
• Helps maintain proper airflow by preventing blockages that reduce cooling or convection performance
• Reduces risk of fan-related noise from objects striking the blade
• Helps protect the fan assembly from corrosion and buildup over time

• One fan screen protector (round mesh guard)

• Designed for replacement on compatible oven/range fan assemblies; verify fit with your model before installation
• Turn off power to the appliance at the breaker and allow all surfaces to cool before beginning work
• Basic hand tools are typically required; handle the mesh carefully to avoid bending or distortion
• If the fan or motor shows damage, replace the damaged components rather than relying on the screen alone

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw
