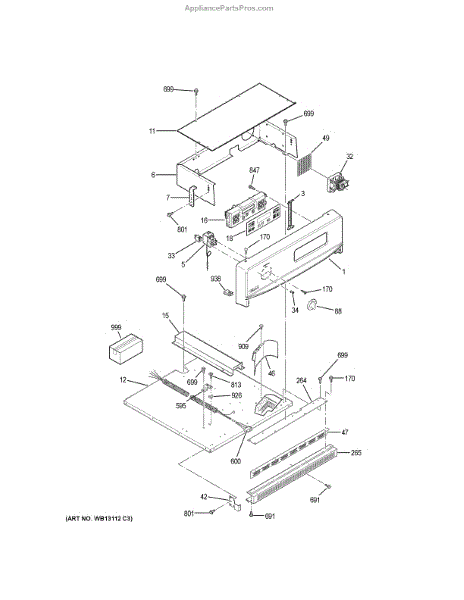

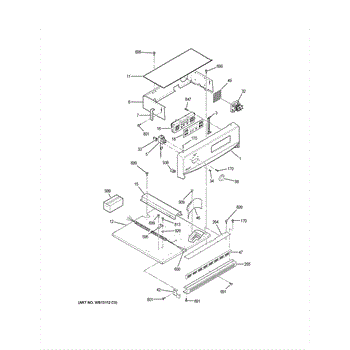

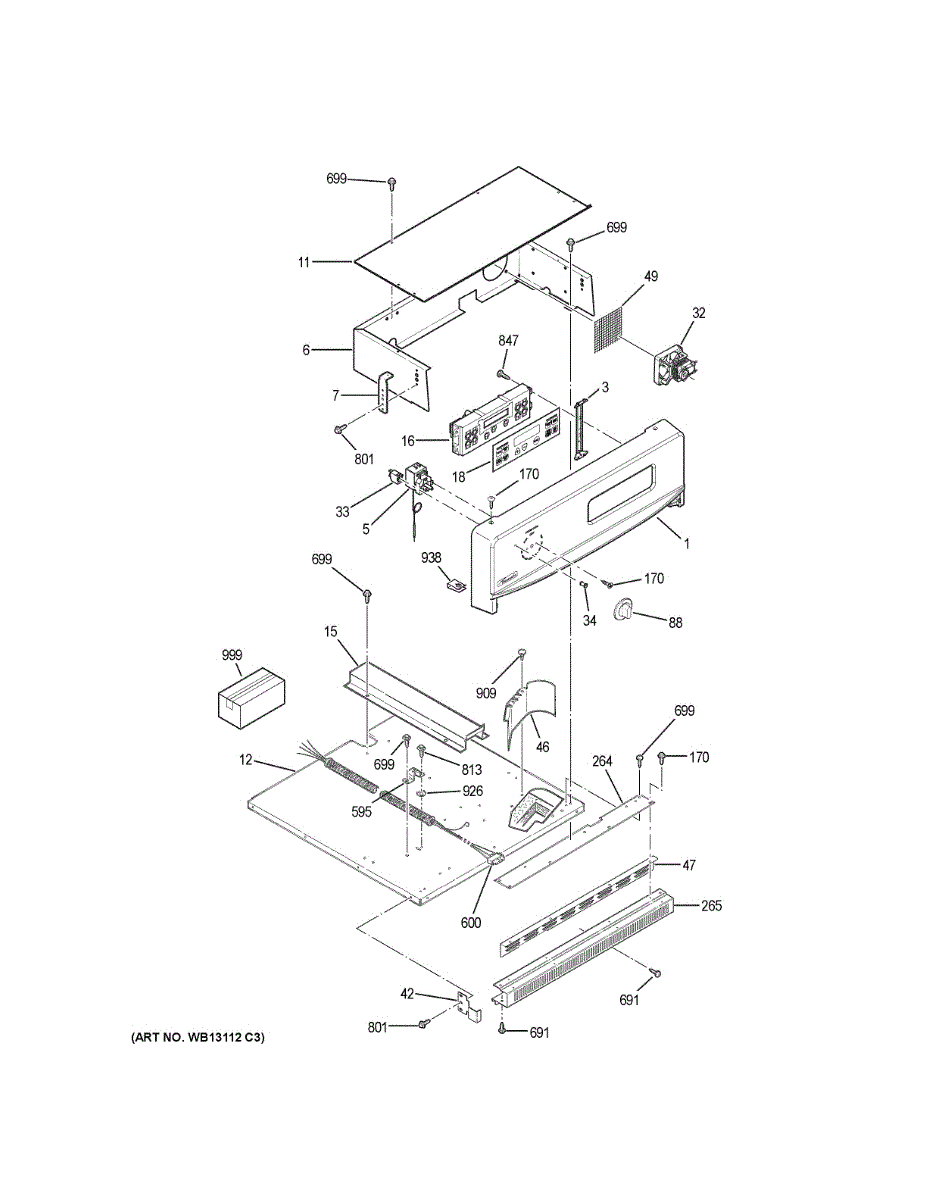

Parts for Ge JRP28BJ5BB: Control Panel Parts

This control panel is the user interface assembly that houses the touchpads, display, and control electronics so you can select cycles and view status. It replaces a damaged or unresponsive front console to restore normal operation. What it does:

• Provides the buttons, display, and electronics that send commands to the appliance control board
• Lets you select cycles, options, and start/pause functions through the front console
• Fixes symptoms such as unresponsive or non-functioning buttons, blank or erratic display, or intermittent control input
• Maintains the finished appearance of the appliance's front interface

• One control panel assembly as shown

• High-level replacement; disconnect power before servicing to avoid shock
• Access may require removing exterior trim or fascia; keep fasteners organized
• Handle display and ribbon/connector areas carefully to avoid damage

The Oven Control Board is an OEM part for GE ranges. It is an important electronic component that is responsible for monitoring and regulating all oven functions including bake, broil, convection, temperature probes, preheat indicator lights, clock, and timers.

Symptoms of a bad oven control board include:

• Oven failing to heat or cook food properly
• Inaccurate or fluctuating temperature readings
• Control locks or buttons not working as expected
• Timers or clocks not keeping time
• Pre-heat light not illuminating

Causes of failure can include water damage, circuitry issues, component degradation over time, or surges that disrupt electrical signals.

This OEM GE replacement board ensures consistent and reliable oven operation. It restores full functionality to critical baking and cooking systems. This part is also compatible with Hotpoint, RCA, and select Kenmore range models.

This control panel overlay replaces the printed faceplate on the oven/range electronic control. It restores clear, readable button legends and a clean factory look while shielding the touchpad area from everyday wear.

• Provides the printed graphics/labels for buttons and display windows on the control panel
• Adheres over the keypad/control area to finish and protect the surface
• Typical replacement reasons: faded or worn text, peeling/bubbling film, cracks, discoloration, or damaged faceplate
• Addresses readability/appearance; electrical input or display issues usually involve the keypad or control board

• Disconnect power at the breaker before servicing
• Remove the control panel/backguard per your model's service information to access the overlay area
• Carefully peel the old overlay and clean adhesive residue; align the new overlay using the display and key outlines, then press firmly from the center outward
• Avoid touching the adhesive or stretching the film; reassemble the panel before restoring power

This indicator light installs in the control panel of compatible ranges/cooktops and illuminates to show when a heating element or function is active. Replacing a failed lamp restores clear, at-a-glance status feedback during use.

• Provides visual confirmation when a surface element or function is turned on
• Common failure symptoms include no light, intermittent flicker, or very dim illumination
• May also be referred to as a pilot light or panel indicator
• Visual indicator only; does not control heating performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the console/backguard area; note wire positions and move them to the new light one at a time
• Seat and secure the light, restore power, and test operation before reassembly

This oven light lens protects the oven light bulb and helps diffuse light for clearer visibility inside the cavity. It's a direct-fit replacement that restores the light cover's protective and light-diffusing function. What it does

• Covers and protects the oven light bulb from spills, splatter, and heat exposure
• Diffuses oven light for more even interior illumination
• Helps maintain safe operation by keeping glass or plastic shield in place
• Replaces cracked, cloudy or missing light lens that reduces visibility

• One replacement oven light lens

• Disconnect power to the appliance before servicing to avoid shock hazard
• Allow the oven to cool completely before removing or installing the lens
• Handle the lens carefully to avoid scratching or chipping; use gloves if needed
• Support the lens during removal; follow appliance manufacturer instructions for reassembly

Keep your oven's cooling or convection fan safe from debris and contact with loose items. This round mesh guard provides a simple barrier that helps maintain airflow while protecting the fan blade from damage and blockages. What it does:

• Shields the fan blade from loose debris, pans, or dropped food that can cause blades to bend or break
• Helps maintain proper airflow by preventing blockages that reduce cooling or convection performance
• Reduces risk of fan-related noise from objects striking the blade
• Helps protect the fan assembly from corrosion and buildup over time

• One fan screen protector (round mesh guard)

• Designed for replacement on compatible oven/range fan assemblies; verify fit with your model before installation
• Turn off power to the appliance at the breaker and allow all surfaces to cool before beginning work
• Basic hand tools are typically required; handle the mesh carefully to avoid bending or distortion
• If the fan or motor shows damage, replace the damaged components rather than relying on the screen alone

This conduit wire assembly routes and protects electrical wiring between appliance components, keeping connections secure and reducing risk of shorts. It's a direct-fit harness used where a protected wire run is required for reliable power and signal delivery. What it does:

• Provides a protected conduit for multiple conductors to route power or signals between control and functional modules
• Keeps wire bundles organized and secured to prevent chafing and accidental disconnection
• Helps prevent electrical shorts and arcing by shielding wires from heat and abrasion
• Commonly replaced when wiring is frayed, connectors are damaged, or intermittent power/operation occurs

• Always disconnect the appliance from power before beginning service.
• Match connector types and routing to the original harness; secure with existing clips/fasteners.
• Inspect nearby terminals and components for damage; replace any corroded connectors.

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw
