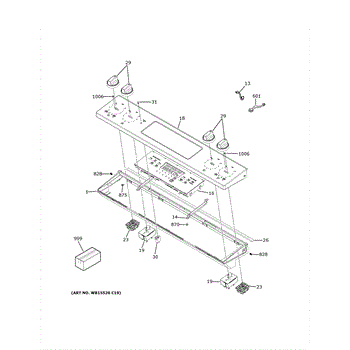

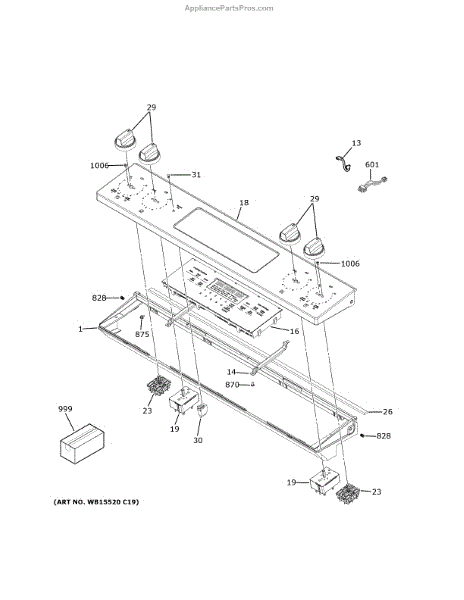

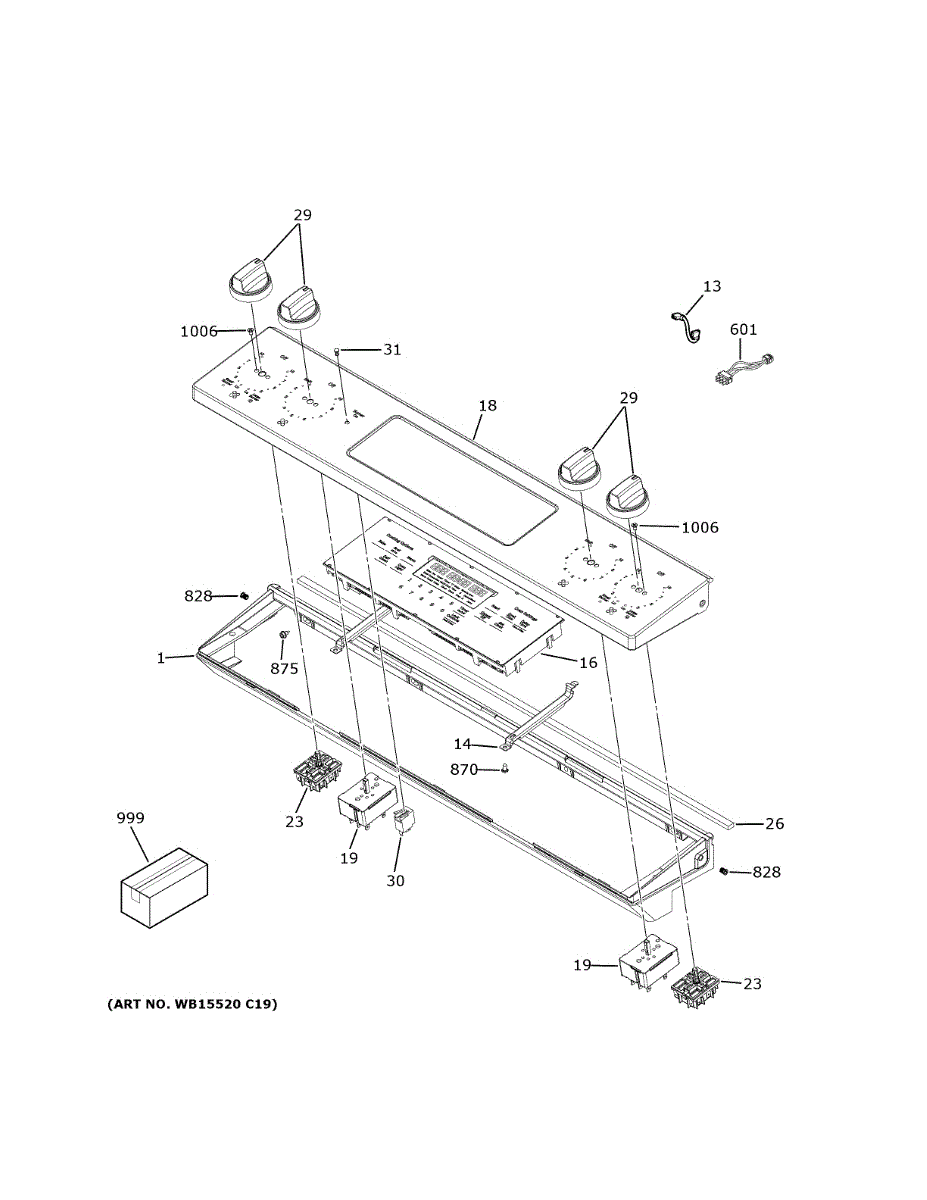

Parts for Ge JS645SL6SS: Control Panel Parts

The Oven Control Panel Trim Kit is an OEM part compatible with GE ranges and wall ovens. It houses and frames the control panel interface, touch controls, display screen, and related electronic components of the appliance. The trim panel serves to protect these sensitive interior systems.

Causes of a bad control panel trim kit can include cracks, peeling, discoloration, or other signs of wear and damage due to repeated heat exposure during baking and roasting. The trim surrounds oven controls that endure temperature fluctuations each time the door is opened.

Symptoms of a bad oven control panel trim kit include:

• Glitches or faulty responses from touch controls
• Water leaks behind or around the control panel
• Visible cracking, peeling, or broken plastic sections
• Sensitivity issues or unresponsive buttons

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore wall oven models.

This electrical jumper links two terminals within the appliance's wiring to restore proper continuity for the affected circuit. Replace a burnt, damaged, or missing jumper to bring the related function back to reliable operation.

• Bridges terminals to complete or modify an electrical circuit as designed by the manufacturer
• Helps address symptoms like a specific feature not working, intermittent operation, or no power to a component
• Replace if the original shows heat damage, broken leads, or loose connections
• Direct replacement for the original jumper used in the wiring harness

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram to locate the correct jumper
• Label/photograph wire positions and transfer one connection at a time
• Ensure connectors are fully seated; do not alter the factory wiring configuration

This control bracket secures the appliance control/module in place, keeping the control board stable and aligned for reliable operation. It replaces a worn or broken mounting bracket to restore proper support for the control assembly. What it does:

• Provides a secure mounting point for the control board or control module
• Keeps electrical connections aligned to prevent stress and intermittent contacts
• Helps reduce vibration and movement-related symptoms like loose/control panel wobble
• Supports correct placement during panel reassembly after repairs

• Install with power disconnected; turn off circuit breaker or unplug the appliance before starting
• Handle the control board and connectors with care to avoid damage from static or force
• Use existing fasteners or OEM-recommended screws; confirm bracket orientation before tightening

This control and faceplate assembly is the front user interface for your appliance. It provides the buttons/touch inputs you use to select and adjust settings, restoring reliable operation and a clean, factory look when the original panel fails or is damaged.

• Provides the user interface for selecting functions and adjusting settings
• Sends input commands to the appliance's control system
• Typical symptoms include unresponsive or intermittent keys, random beeps/inputs, or a cracked/scratched front panel
• Refreshes worn or faded graphics for a like-new appearance

• Disconnect power (unplug or switch off the circuit breaker) before servicing
• Remove mounting screws/retainers and carefully release tabs to remove the old panel; note wire/ribbon connections for transfer
• Handle circuit boards and ribbon cables gently and use ESD precautions
• Reuse original hardware or brackets if not supplied with the new assembly

The stainless steel Control Panel Overlay is an OEM part for GE electric ranges. It acts as the outer surface layer that users interact with to operate range of functions while protecting internal control boards.

Causes include normal wear and tear of repeated use, exposure to excess moisture around the controls, accidental impacts, or failure of electronic sensors/switches it houses.

Symptoms of a bad control overlay include:

• Dulling, scratching or distortion of the stainless surface
• Loose, rattling or non-responsive control buttons
• Water damage leading to error codes/erratic operation
• Exposed internal electronic/wiring components

It's also compatible with Hotpoint, RCA and select Kenmore stainless models.

The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control panel gasket seals the cooktop/console area to keep moisture, grease and crumbs out of the range control cavity for cleaner operation and improved component protection. Replaces a worn or missing console seal to reduce debris buildup and possible shorting. What it does:

• Forms a tight seal between the control panel and console to block grease, spills and food particles.
• Helps prevent moisture and debris from reaching electronic controls and switches.
• Reduces rattling or movement by cushioning the control panel.
• Commonly replaced when torn, flattened, missing, or allowing visible gaps at the control area.

• Disconnect power to the appliance before starting any work.
• Removal typically requires lifting or removing the control surface—follow the range/oven service instructions.
• Clean mating surfaces of old adhesive, grease and debris before installing the new gasket.
• Align gasket carefully and press firmly; replace any fasteners or adhesive strips used by the manufacturer.

A stainless infinite knob that replaces a worn or broken range or oven control knob, restoring smooth selection of heat/power settings and a clean stainless look for your appliance controls. What it does:

• Fits onto the stove/range infinite control shaft to set burner or oven power levels.
• Replaces cracked, chipped, or missing knobs that won't turn or slip on the control shaft.
• Restores precise user control when settings are hard to select or the knob is loose.
• Matches stainless control panels for a consistent, refreshed appearance.

• Disconnect power to the appliance before servicing to reduce shock risk.
• Typically installs by hand: pull the old knob straight off, align splines, and press the new knob onto the shaft until seated.
• Do not force the knob; if it won't seat easily, verify spline alignment and shaft condition.

This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

The Indicator Light Lens is an OEM component specifically designed for GE ranges. This clear plastic lens surrounds the internal cooktop indicator lights to protect the bulbs.

Causes of a damaged lens can include normal wear from regular usage as well as accidental bumps or spills on the control panel surface.

Symptoms include:

• Cracks, scratches or clouding appearing on the lens material
• The lens detaching from its mounting points
• Obscured visibility of indicator lights below

This genuine GE lens is compatible with Hotpoint, RCA, and Kenmore models too.

The 14 Gauge Grounding Lead Wire is an OEM part for GE electric ranges. It grounds interior metal components for enhanced safety performance.

Symptoms of a failed grounding lead wire include:

• Risk of electric shocks from improperly earthed metal surfaces
• Circuit breaker trips or fuse blows from inadequate grounding
• Appliance malfunctions and intermittent power from faulty ground path

Causes can be fatigue cracks from metal expansion/contraction cycles over time, exposed strands from abrasion damage, and loose terminal connections.

This OEM part is also compatible with Hotpoint and RCA electric range models.

The Insert Plug is an OEM part for GE electric ranges and cooktops. It serves to seal any unused gas orifices to prevent leaks, drafts, and infiltration of foreign materials.

Symptoms of a faulty or missing plug include:

• Gas leaks discernible by smell around unlit burner ports
• Drafts affecting oven or broiler performance
• Contaminants obstructing gas flow or pilot ignition

Causes are typically loose or lost plugs from normal use and cleaning over time. Replacing with this genuine GE part restores safety and maximum efficiency. Compatible models include Hotpoint, RCA, and select Kenmore lines as well - securing all openings protects both you and your appliance. Avoid future issues and keep cooking functions running optimally.

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
