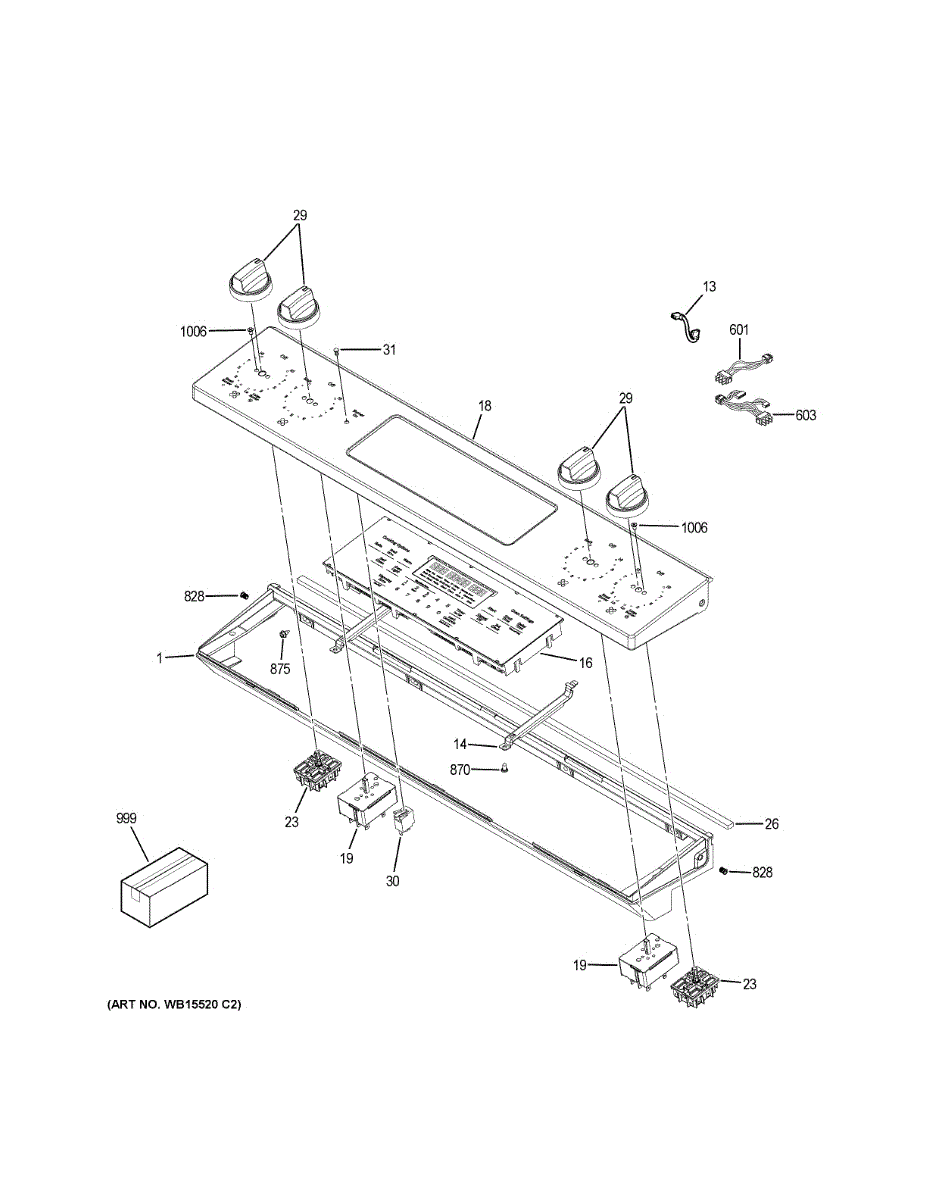

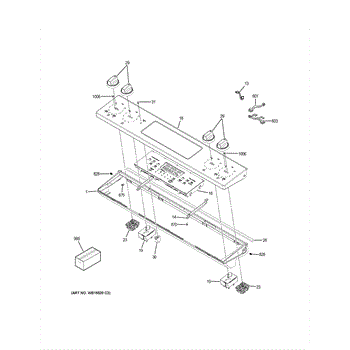

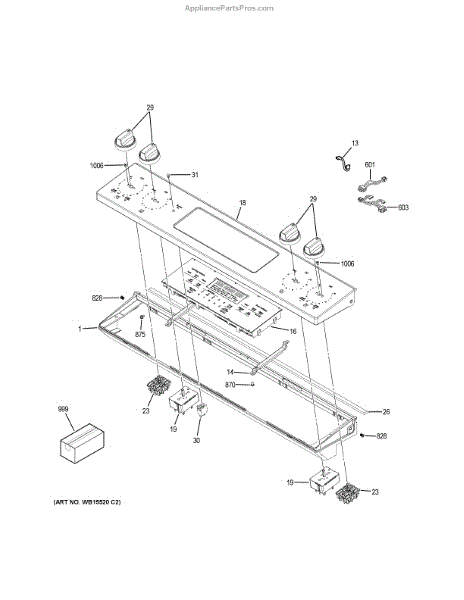

Parts for Ge JS760DL1BB: Control Panel Parts

This control bracket secures the appliance control/module in place, keeping the control board stable and aligned for reliable operation. It replaces a worn or broken mounting bracket to restore proper support for the control assembly. What it does:

• Provides a secure mounting point for the control board or control module
• Keeps electrical connections aligned to prevent stress and intermittent contacts
• Helps reduce vibration and movement-related symptoms like loose/control panel wobble
• Supports correct placement during panel reassembly after repairs

• Install with power disconnected; turn off circuit breaker or unplug the appliance before starting
• Handle the control board and connectors with care to avoid damage from static or force
• Use existing fasteners or OEM-recommended screws; confirm bracket orientation before tightening

This is a control and overlay assembly that is used on ranges. This part features all of the buttons that control every function, including bake, broil, warm, self-clean, cook time, delay time, lock, start, cancel, and many more.When pressing any of the buttons that control the functions, if any of them do not work then this part will need to be replaced. Over time and with frequent use, the text may begin to fade off of the buttons and will no longer be visible. If this happens, this is a high-quality replacement part. Unplug the oven from the electrical outlet before replacing this part. Wear work gloves to protect the hands during this process.This particular part is sold individually and is sourced straight from the manufacturer. This control and overlay assembly is compatible with ranges that are manufactured by the General Electric brand, including Hotpoint and RCA.

1500 watt

The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control panel gasket seals the cooktop/console area to keep moisture, grease and crumbs out of the range control cavity for cleaner operation and improved component protection. Replaces a worn or missing console seal to reduce debris buildup and possible shorting. What it does:

• Forms a tight seal between the control panel and console to block grease, spills and food particles.
• Helps prevent moisture and debris from reaching electronic controls and switches.
• Reduces rattling or movement by cushioning the control panel.
• Commonly replaced when torn, flattened, missing, or allowing visible gaps at the control area.

• Disconnect power to the appliance before starting any work.
• Removal typically requires lifting or removing the control surface—follow the range/oven service instructions.
• Clean mating surfaces of old adhesive, grease and debris before installing the new gasket.
• Align gasket carefully and press firmly; replace any fasteners or adhesive strips used by the manufacturer.

This black knob assembly replaces a worn, cracked, or missing control knob to restore safe, accurate selection of cooktop/oven settings. It provides the tactile grip and clear pointer needed for reliable temperature and function control. What it does:

• Replaces a damaged or stripped control knob so you can change stove or oven settings smoothly
• Restores a secure fit to prevent slipping or wobbling while turning controls
• Helps fix symptoms like knob falling off, loose rotation, or unclear pointer alignment
• Matches original OEM fit and appearance for proper operation on compatible models

• Disconnect power to the appliance before starting any repair
• Most knobs pull straight off the control shaft; align pointer and press firmly to seat
• If a retaining clip or adapter is present, keep and reinstall it as originally mounted
• Inspect the control shaft and surrounding trim for damage before completing installation

This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

The Indicator Light Lens is an OEM component specifically designed for GE ranges. This clear plastic lens surrounds the internal cooktop indicator lights to protect the bulbs.

Causes of a damaged lens can include normal wear from regular usage as well as accidental bumps or spills on the control panel surface.

Symptoms include:

• Cracks, scratches or clouding appearing on the lens material
• The lens detaching from its mounting points
• Obscured visibility of indicator lights below

This genuine GE lens is compatible with Hotpoint, RCA, and Kenmore models too.

The Insert Plug is an OEM part for GE electric ranges and cooktops. It serves to seal any unused gas orifices to prevent leaks, drafts, and infiltration of foreign materials.

Symptoms of a faulty or missing plug include:

• Gas leaks discernible by smell around unlit burner ports
• Drafts affecting oven or broiler performance
• Contaminants obstructing gas flow or pilot ignition

Causes are typically loose or lost plugs from normal use and cleaning over time. Replacing with this genuine GE part restores safety and maximum efficiency. Compatible models include Hotpoint, RCA, and select Kenmore lines as well - securing all openings protects both you and your appliance. Avoid future issues and keep cooking functions running optimally.

Size: 8-18 BA POR 3/4 SN

Black. 8-18 AB HXW 3/8

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
