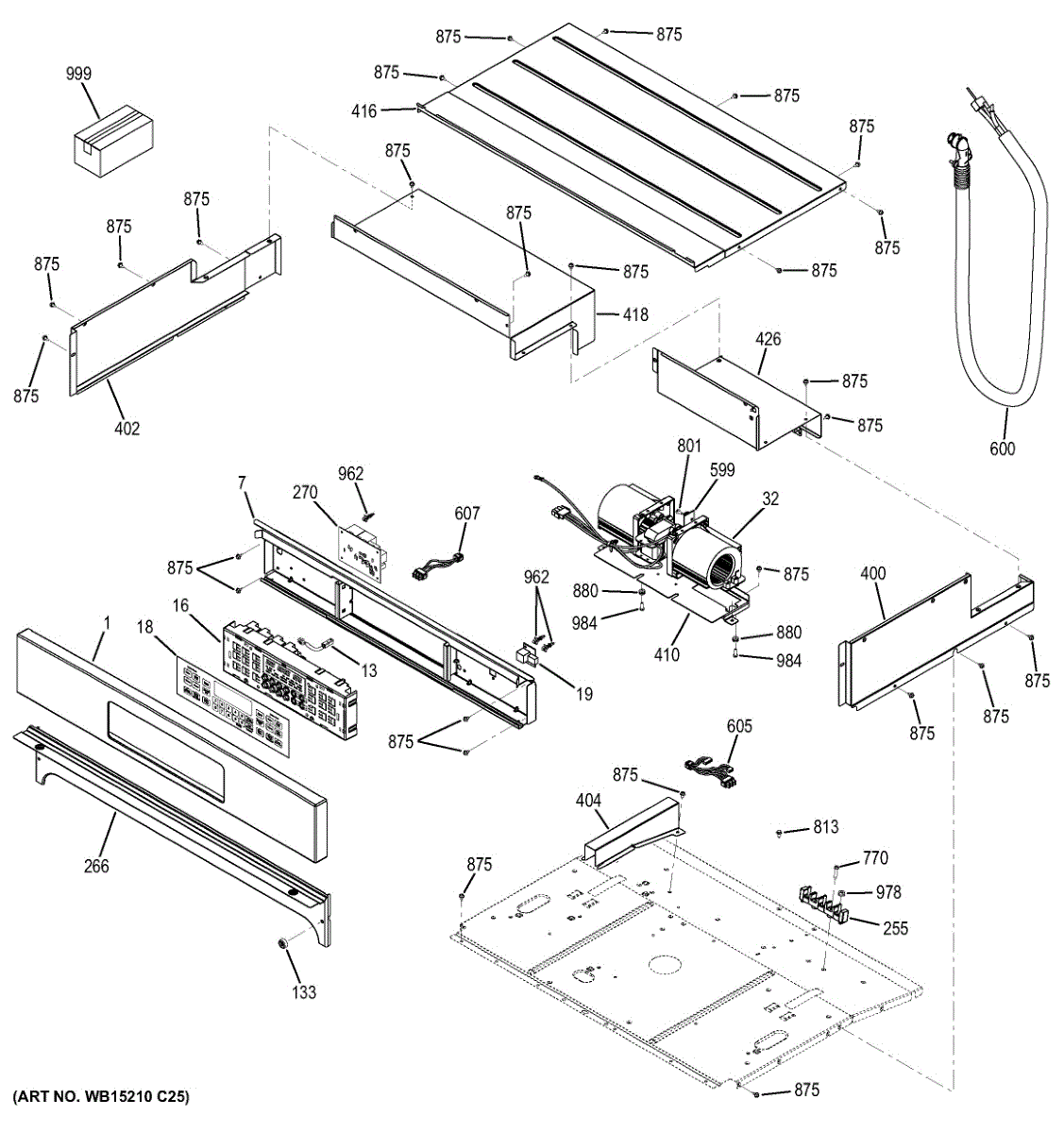

Parts for Ge JT3500DF2CC: Control Panel Parts

If your range or oven has a circuit not working or intermittent function, this electrical jumper wire bridges terminals to restore proper continuity.

Dead display or unresponsive buttons? This wall oven electronic control board restores full function. Moderate DIY repair that fixes erratic controls.

Control panel housing assembly for cooktops and ranges. Replaces cracked, broken, or damaged housing that protects control interface components.

Fix F96 error codes and overheating shutdowns with this wall oven cooling fan. Keeps control electronics at safe temperatures during cooking.

Fixes loose power connections and electrical arcing in ranges and ovens. This terminal block secures incoming wiring for safe, reliable operation.

Black upper vent trim for wall ovens. Covers the ventilation opening on the control panel area. Replace if cracked, faded, or missing for a clean look.

Oven light not working or relay not clicking? This relay daughter board controls lighting circuits. Plugs into main control board for quick repair.

Upper air vent channel for wall ovens. Directs airflow in the vent system. Replace if cracked, broken, or missing to restore proper ventilation.

Upper fan mount bracket for wall ovens and ranges. Secures the cooling fan assembly in place. Replace if bracket is bent, broken, or missing.

Conduit wire assembly for wall ovens. Protects and routes electrical wiring within the oven cavity. Replace if damaged, frayed, or missing.

Flexible 6 ft conduit protects and organizes electrical wiring between wall oven components. Replace if conduit is cracked, damaged, or missing.

Replacement mounting screw for ranges and ovens. Secures panels, brackets, and internal components. Order when original screw is missing, stripped, or lost.

Silicon controlled rectifier for appliances. Switches and regulates power to heating or motor circuits. Replace if cracked, damaged, or failing to control.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Rubber grommet for electric ovens and ranges. Seals and protects wiring or components passing through metal panels. Replace if cracked or missing.

Secures and isolates the power control module from the range chassis. Replace if cracked, broken, or missing to maintain proper spacing and stability.

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified
