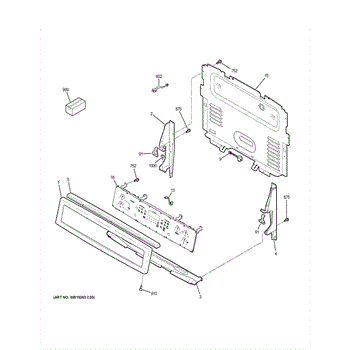

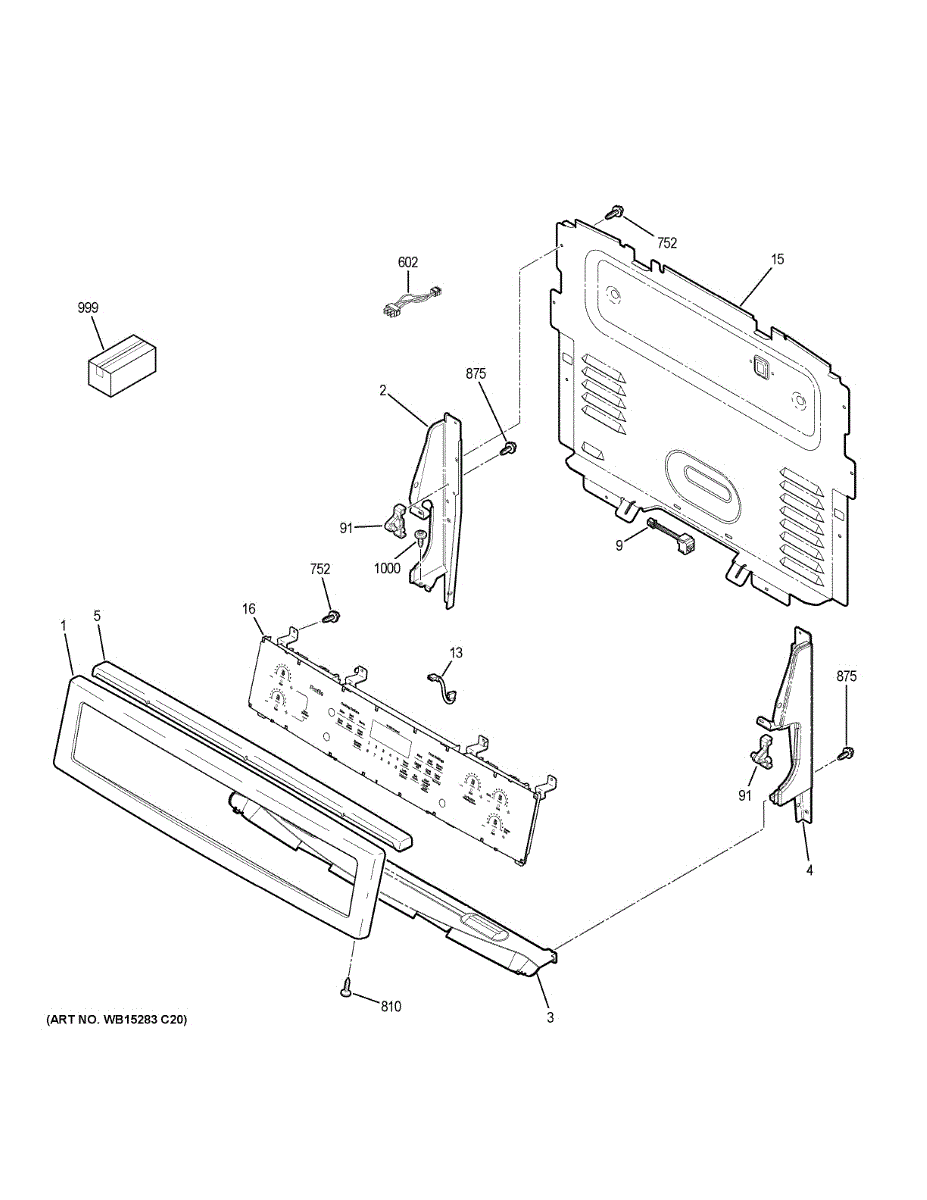

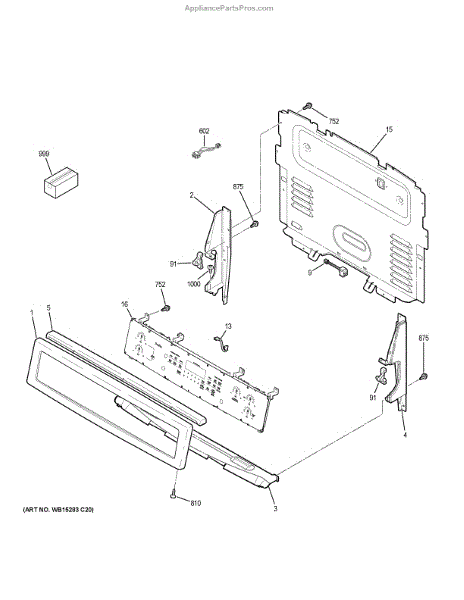

Parts for Ge PB911BJ8TS: Control Panel Parts

The control panel End Plate (Left) is an OEM part for GE electric ranges. It forms a barrier along the back left edge of the control panel area providing structural reinforcement and protection.

Over time, end plates can sustain damage due to normal wear and tear of using range buttons/dials daily as well as impacts from accidental bumps. Causes may include operation fatigue plus occasional mishandling.

Causes of a bad end plate include:

• Dents, scratches or cracks in the protective barrier surface
• Loosened mounting fasteners holding it securely
• Reduced control panel integrity and rigidity over long use
• Exposure of fragile internal electronics to potential damage

This exact GE replacement part also fits Hotpoint, RCA and select Kenmore models.

This top trim assembly replaces the finished edge piece that fits along the front of the cooktop, restoring a clean, finished appearance and covering the gap between the cooktop and control panel. It helps prevent debris from falling into internal areas. What it does:

• Covers and protects the front edge of the cooktop, improving appearance
• Hides gaps where food and spills can collect, making cleaning easier
• Helps maintain proper spacing and alignment of the cooktop edge
• Common fix for bent, dented, or cosmetically damaged top trim

• One top trim assembly

• Disconnect power to the appliance before beginning any work to avoid shock hazard
• Remove burners, grates, or cooktop components as needed for access; parts and fasteners may vary by model
• Handle trim carefully—edges can be sharp and panels may scratch; use protective gloves

This electrical jumper links two terminals within the appliance's wiring to restore proper continuity for the affected circuit. Replace a burnt, damaged, or missing jumper to bring the related function back to reliable operation.

• Bridges terminals to complete or modify an electrical circuit as designed by the manufacturer
• Helps address symptoms like a specific feature not working, intermittent operation, or no power to a component
• Replace if the original shows heat damage, broken leads, or loose connections
• Direct replacement for the original jumper used in the wiring harness

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram to locate the correct jumper
• Label/photograph wire positions and transfer one connection at a time
• Ensure connectors are fully seated; do not alter the factory wiring configuration

The Oven Control and Overlay Assembly is an OEM part for GE freestanding electric ranges. This complete assembly handles all control electronics and digital interface functions.

Causes of needing replacement include failure of internal components due to long-term heating cycles, moisture exposure damaging circuitry, or direct physical impacts.

Symptoms requiring replacement are:

• Fault codes appearing and knobs/buttons unresponsive
• Inaccurate temperature calibration or modes stuck on/off
• Clean and Convection options inaccessible
• Crisp and Warm features permanently malfunctioning

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

This silicon controlled rectifier (SCR) is a replacement power-control semiconductor that helps regulate heating or motor circuits in compatible appliances. Restores controlled switching for stable operation and consistent performance. What it does:

• Controls power delivery to heating elements or motors by switching current on and off
• Helps correct symptoms such as intermittent heating, burners or motors that won't respond, or erratic operation
• Replaces a failed or shorted SCR to restore proper control functionality
• Operates as part of the appliance's control/regulator circuitry to manage current flow safely

• Disconnect power (unplug appliance or switch off circuit breaker) before servicing
• Observe ESD precautions and avoid touching semiconductor contacts; handle by the body or mounting tab
• Verify correct replacement orientation and secure mounting; match wiring/terminal locations exactly
